Fuel Delivery Tanker Truck WD615.47 Model Engine Type High Performance

    Buy cheap Fuel Delivery Tanker Truck WD615.47 Model Engine Type High Performance from wholesalers

    Buy cheap Fuel Delivery Tanker Truck WD615.47 Model Engine Type High Performance from wholesalers
    • Buy cheap Fuel Delivery Tanker Truck WD615.47 Model Engine Type High Performance from wholesalers
    • Buy cheap Fuel Delivery Tanker Truck WD615.47 Model Engine Type High Performance from wholesalers
    • Buy cheap Fuel Delivery Tanker Truck WD615.47 Model Engine Type High Performance from wholesalers

    Fuel Delivery Tanker Truck WD615.47 Model Engine Type High Performance

    Ask Lasest Price
    Brand Name : SINOTRUK HOWO
    Model Number : ZZ1307N4647A
    Certification : ISO/CCC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 units/month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    Fuel Delivery Tanker Truck WD615.47 Model Engine Type High Performance

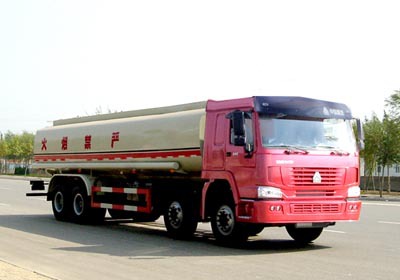

    SINOTRUK HOWO 6x4 Fuel Tank Truck with 18000L volume and HW19710 transmission


    Product desccription:


    Tank volume: 18m³ 18000L(2C with Two compartment)
    head 5mm, body 5mm, material Q235
    Pump Flow: 40m³ / h

    Flow meter: return to zero flow meter

    Refueling gun: 1 inch
    Reel: 1 inch * 10 meters
    Other: pressure unloading, gravity unloading, towing wire, fire caps, fire extinguishers. Vehicle spray wax.


    Packing:


    Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.


    Competitive advantages:


    1. Long standing reputation in Cargo trailer.
    2. Specialization ,standard and accurate meet your requirement.
    3. The best quality standard guaranteed
    4. Product upgrading and expansion of species
    5. Good quality with competitive prices.
    6. Flexible and convenient logistic service.


    SINOTRUK HOWO 6x4 FUEL TANK TRUCK SPECIFICATIONS
    Cubage

    Tank volume: 18m³ 18000L(2C with Two compartment)
    head 5mm, body 5mm, material Q235
    Pump Flow: 40m³ / h

    Flow meter: return to zero flow meter

    Refueling gun: 1 inch
    Reel: 1 inch * 10 meters
    Other: pressure unloading, gravity unloading, towing wire, fire caps, fire extinguishers. Vehicle spray wax.

    Weight in kgKerb weight (Kg)12290
    Gross vehicle weight (Kg)30000

    Dimension(mm)


    Dimensions(mm)Length(mm)10300
    Width(mm)2550
    Height(mm)3250
    Wheel base (mm)4600+1350
    PerformanceMaximum driving speed (km/h)92
    Fuel consumption (1/100 km)38
    CabModel

    SINOTRUCK Lengthen cab

    single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner

    EngineModelWD615.47(Euro 2)
    Type6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
    Horsepower371 Hp
    Maximum output Kw/r/min247/2200
    Maximum torque N.m/r/min1350/1300-1600
    Bore x Stroke126x130mm
    Valve2
    Displacement9.726L
    Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan
    TransmissionSINOTRUK HW19710 transmission ,10 forward and 2 reverse
    ClutchSINOTRUCK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
    SteeringZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)
    Front AxleSINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.
    Rear AxlesSINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
    Brake System

    Service brake:dual circuit compressed air brake

    Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

    Wheels & TyresRims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.
    Electrics

    Operating voltage:24V,negative grounded

    Starter:24V,7.5 Kw

    Alternator:3-phase,28V,1500 W

    Batteries:2x12 V,165 Ah

    horn,headlamps,fog lights,brake lights,indicators and reverse light

    Oil TankSquare type-400L Aluminum alloy fuel tank
