Brand Name : | SINOTRUK |
Model Number : | LIANGYUN |
Certification : | CCC |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 500 units/month |
Delivery Time : | 20 work days |

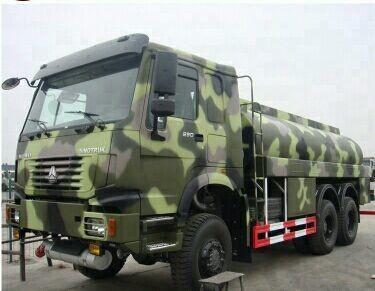

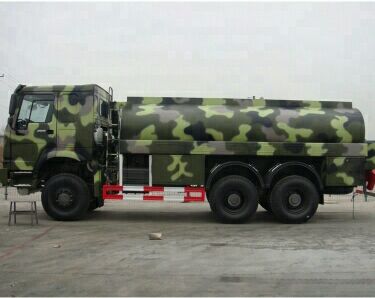

SINOTRUK HOWO 6x6 All Wheel Drive Fuel Tanker Truck with 20cbm Capacity
Product description:
HOWO Tractor truck adopt 336 HP WD615 series of 6-cylinder in line,
4-stroke, water cooled, turbo-charged inter-cooled,direct injection
engine.Have good power economy.
And the brake system have huge advantages.Service brake:dual
circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air
operating on rear wheels
Auxiliary brake:engine exhaust valve brake.
Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Competition advantages:
1. Excellent and high-quality control
2. Long lasting working life time.
3. Suspension is usually American style,or german style
4. Support legs also can be selected
5. We have been engaged in this industry for more than 20 years. High quality has always been our advantage.
Truck Model | HOWO 6×6 FUEL TRUCK | ||
Overhang(front/rear) (mm) | 1578/2090 | ||
Wheel base (mm) | 3800+1400 | ||
Max speed(km/h) | 76 | ||
The total quality(kg) | 25000 | ||
Curb weight(kg) | 11880 | ||
Loading Weight(kg) | 12990 | ||
Engine | Model | WD615.69, Diesel 4-stroke direct injection diesel engine Engine model: WD615.62, Euro 2, 266 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L | |
Fuel type | Diesel | ||
HorsePower, | 336HP | ||
Emission | EUROII | ||
Transmission | Model | HW15710C | |
Steering system | Model | ZF8098,hydraulic steering with power assitance | |
Front axle | STR | ||
Rear axle | ST16 | ||
Tyre | 12.00-20 | ||
Overall dimensions | 8468×2496×3180 | ||
Tank capacity | 20000L | ||
Cab | HW76, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. | ||
Shipping | Within 20 days deliver the goods to main Port.Ro-Ro ship or bulk ship or according to customer requiring. | ||
Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
![]() |
