    336 HP 6×4 18 M3 Water Tanker Vehicle , Water Bowser Truck With ZF8098 Steering Gear Box

    Ask Lasest Price
    Brand Name : SINOTRUK HOWO
    Model Number : ZZ1257M4647
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 units/month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

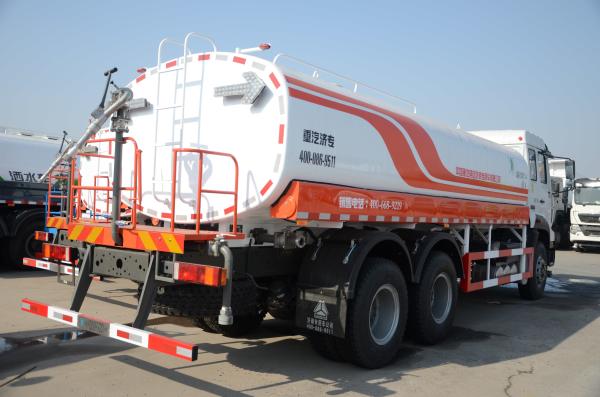

    336 HP 6×4 18 M3 Water Tanker Vehicle , Water Bowser Truck With ZF8098 Steering Gear Box

    HOWO 336 HP Euro 2 6×4 18 m3 water tank truck with ZF8098 Steering gear box


    Description:


    HOWO 336 HP Euro 2 6×4 18 m3 water tank truck adopt SINOTRUK WD615 series of 6-cylinder in line, 4-stroke, water-cooled, turbo-charged inter-cooled,direct injection engine.

    And the main parts adopt international well-known brands,for example German ZF8118 steering,German WABCO brake control system,HOWO series of transmission,BEHR water tanker,safety and reliable.

    And the many color choice, and the best cost and performance, deeply favored by oversea customers.
    It can transport kinds of bulk cargo in normal roads and tough roads.


    Packing:


    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.


    Competitive Advantage:


    1. The price is competitive.

    2. All colors are available according to your choice.

    3. 30-45 work days production period.
    4. Professional team for customs services.

    5. Technique support and training for your stuff.

    6. Professional and many oversea experience after-sales service team.


    Specifications:
    Truck modelZZ1257M4647
    Dimension(Lx W xH)(unloaded)9895×2496×3668mm
    Tanker volume(m3)18m3
    Tank body

    thickness:5mm,

    material:carbon steel,

    sprinkling equipment both in front and in rear;

    special anti-corrosion treatment

    Approaching angle/Departure angle(°)13.5/11.5
    Overhang(front/rear) (mm)1500/2445
    Wheel base (mm)4600+1350
    Max speed(km/h)75
    Curb weight(kg)12400
    Rated Loading Weight(kg)12450

    Engine

    ModelWD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,directly injection
    Fuel typeDiesel
    Horse Power, max(kw/rpm)336HP
    EmissionEURO 2
    Fuel tanker capacity300
    TransmissionModelHW15710, 10 forward, 2 reverse

    Brake system


    Service brakeDual circuit compressed air brake
    Parking brakespring energy, compressed air operating on rear wheels

    Steering system


    ModelZF8098
    Front axleHF7 , Steering with double T-cross section beam
    Rear axleST16
    ColorOptional
    Tyre12.00R20
    Tanker volume15000L
    Electrical systemBattery2X12V/165Ah
    Alternator28V-1500kw
    Starter7.5Kw/24V
    CabHOWO76 cab, (single sleeping, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
