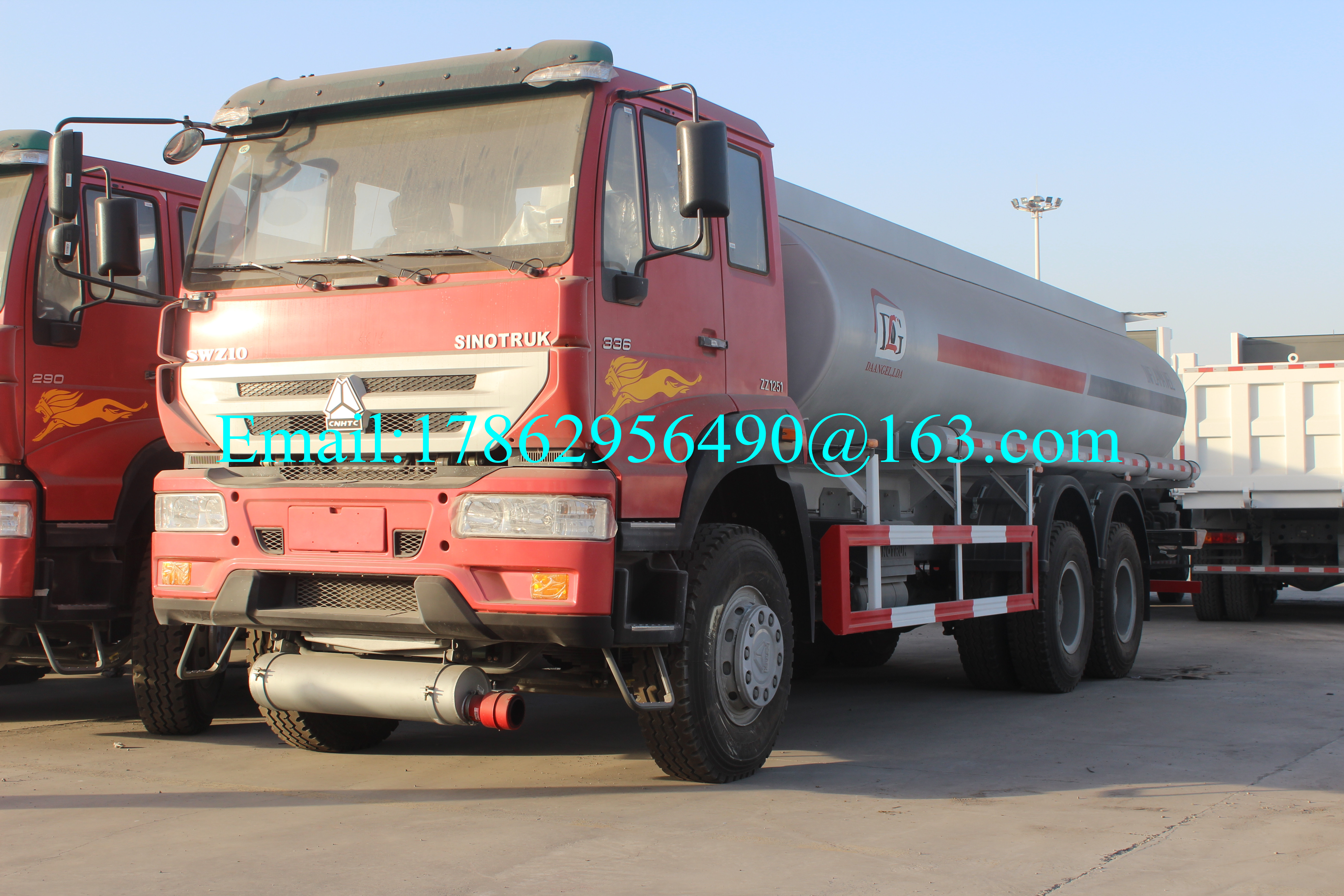

    336 HP Euro 2 6×4 Oil Tanker Truck HW19710 Transmission Type ZZ1257N4641V

    Ask Lasest Price
    Brand Name : SINOTRUK HOWO
    Model Number : ZZ1257N4641V
    Certification : ISO/CCC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 units/month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    336 HP Euro 2 6×4 Oil Tanker Truck HW19710 Transmission Type ZZ1257N4641V

    ZZ1257N4641V HOWO 336 HP Euro 2 6×4 Oil tanker truck with HW19710 Transmission


    Description:


    HOWO 8×4 6×4 Oil tanker truck adopt SINOTRUK WD615 series of 6-cylinder in line, 4-stroke, water-cooled, turbo-charged inter-cooled,direct injection engine.

    And the main parts adopt international well-known brands,for example German ZF8118 steering,German WABCO brake control system,HOWO series of transmission,BEHR water tanker,safety and reliable.

    And the many color choice, and the best cost and performance, deeply favored by oversea customers.
    It can transport kinds of bulk cargo in normal roads and tough roads.


    Packing:


    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.


    Competitive Advantage:


    1. Single-line air-assisted brake system,safe and reliable.

    2. The price is competitive.

    3. All colors are available according to your choice.

    4. 30-45 work days production period.
    5. Professional team for customs services.

    6. Technique support and training for your stuff.

    7. Professional and many oversea experience after-sales service team.


    Specifications:
    Truck ModelZZ1257N4641V
    Truck BrandSINOTRUK—HOWO
    Driving TypeLeft Hand Driving
    Dimension(Lx W x H)(mm)10350x2496x3633
    Approaching angle/Departure angle(°)16/12
    Overhang(front/rear) (mm)1500/2900
    Tank capacity( m3 )25m3
    Wheel base (mm)4600+1350
    Max speed(km/h)90
    Curb weight(kg)11360
    Total weight(kg)25000

    Engine


    ModelWD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection
    Fuel typeDiesel
    Horse Power336hp
    EmissionEURO II
    Fuel tanker capacity(L)300
    TransmissionModel

    HW19710,10 forwards and 2 reverse

    Brake systemService brakeDual circuit compressed air brake
    Parking brakespring energy, compressed air operating on rear wheels
    Auxiliary brakeEngine exhaust brake
    Steering systemModel

    ZF8098,hydraulic steering with power assistance

    Ratio:22.2-26.2

    Front axle

    HF7 disc brake, Steering with double T-cross section beam

    Loading capacity: 7000kg

    Rear axle

    MCY13Q

    Loading capacity: 23600kg

    ColorOptional
    Chassis

    Frame: U-profile parallel ladder frame with section of 300*80*8mm and reinforced sub frame all cold riveted cross member

    Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer

    Rear suspension: semi –elliptic leaf spring and bogie springs

    Tire295/80R22.5
    Tire quantity10+1 spare
    Electrical systemBattery2X12V/165Ah
    Alternator28V-1500kw
    Starter7.5Kw/24V
    CabHW76 cab, with one sleeper and air-conditioner, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension
