Brand Name : | HOWO A7 |
Model Number : | ZZ4187N3517N1B |
Certification : | ISO/CCC |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 1000 units/month |
Delivery Time : | 30-45 work days |

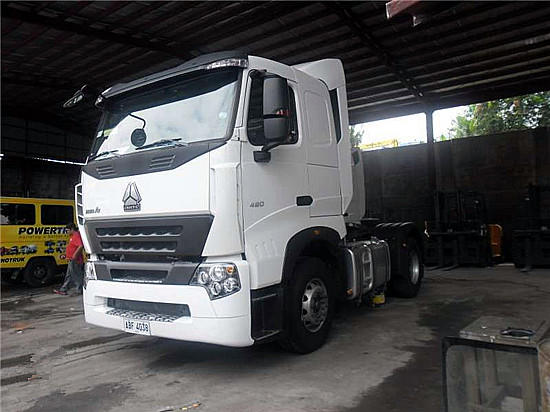

ZZ4187N3517N1B HOWO-A7 4x2 Tractor Truck with A7-P cab and ZF8118 Steering Gear Box
Description:
HOWO-A7 4x2 Tractor Truck have good cost performance: Adopting full hydraulic transmission, it can
bring the power of engine into full play amply. Adjust the output torque automatically according
to loads change, and it can achieve continuously variable
transmission. It enables the loader working efficiency and easy
maintenanceHigh productivity: Perfectly designed to enable the
machine have super lifting force and automatic leveling at high
position.Good capability in climbing the slope: 4-wheel driven,
strong driving power.Operation flexible: Center-point frame articulated and small
turning radius makes it convenient to
work in confined places.
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export
standard packing of the manufacturer, be suitable for long distance transportation of
ocean and inland. The Seller shall be take measures against moisture,
shocks and rust according to the special needs of the commodity.
Competitive Advantage:
1. Operation flexible: Center-point frame articulated and small
turning radius makes it convenient to
work in confined places.
2. Safe and reliable: Single-line air-assisted brake system.
3. Going-through capability: The rear axle can swing around the
center hanger frame, improved the going-through capability of the
whole machine.
4. All colors are available according to your choice.
5. The price is competitive.
Weight in kg | Kerb weight (Kg) | 7280 | |||
Gross vehicle weight (Kg) | 16000 | ||||
Traction weight (kg) | 35000 | ||||
Dimension(mm) | Dimensions(mm) | Length(mm) | 6360 | ||
Width(mm) | 2550 | ||||
Height(mm) | 3850 | ||||
Wheel base (mm) | 3500 | ||||
Performance | Maximum driving speed (km/h) | 92 | |||
Fuel consumption (1/100 km) | 35 | ||||
Cab | Model | SINOTRUCK A7-P cab Single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner | |||
Engine | Model | WD615.47 | |||
Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | ||||
Horsepower | 371hp | ||||
Maximum output Kw/r/min | 273/2200 | ||||
Maximum torque N.m/r/min | 1460/1300-1600 | ||||
Bore x Stroke | 126x130mm | ||||
Valve | 2 | ||||
Displacement | 9.726L | ||||
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 71℃ opening begin, Rigid fan,gate guard. | |||||
Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse,with PTO | ||||
Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | ||||
Steering | ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving) | ||||
Front Axle | SINOTRUK HF7 Front Axle,new 7-ton front axles of equipped with drum brakes. | ||||
Rear Axles | SINOTRUK ST16 Double Reduction Drive Axle, Pressed axle housing, central single reduction with planetary wheel reduction and with differential locks between wheels and axles,ratio:4.42;strengthened design, loading capacity and reliability have been increased greatly. | ||||
Brake System | Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels With ABS | ||||
Wheels & Tyres | Rims:10 hole-steel ;Tyres:315/80R22.5 tubeless tyre with 1 Spare tire. | ||||
Electrics | Operating voltage:24V,negative grounded Starter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light.BACK UP ALARM,2 FLASH LIGHTS. Compliance with international transport standards for dangerous goods.ADR | ||||
Oil Tank | Square type-400L Aluminum alloy fuel tank |
![]() |
