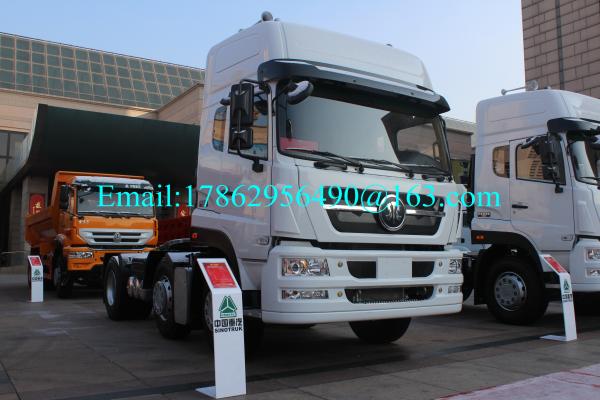

SINOTRUK Euro II 6x4 Prime Mover Truck With HW79 Cabin / HW15710 TRANSMISSION

    Buy cheap SINOTRUK Euro II 6x4 Prime Mover Truck With HW79 Cabin / HW15710 TRANSMISSION from wholesalers

    Buy cheap SINOTRUK Euro II 6x4 Prime Mover Truck With HW79 Cabin / HW15710 TRANSMISSION from wholesalers
    • Buy cheap SINOTRUK Euro II 6x4 Prime Mover Truck With HW79 Cabin / HW15710 TRANSMISSION from wholesalers
    • Buy cheap SINOTRUK Euro II 6x4 Prime Mover Truck With HW79 Cabin / HW15710 TRANSMISSION from wholesalers
    • Buy cheap SINOTRUK Euro II 6x4 Prime Mover Truck With HW79 Cabin / HW15710 TRANSMISSION from wholesalers

    SINOTRUK Euro II 6x4 Prime Mover Truck With HW79 Cabin / HW15710 TRANSMISSION

    Ask Lasest Price
    Brand Name : SINOTRUK HOHAN
    Model Number : ZZ4257N3247
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 units/month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    SINOTRUK Euro II 6x4 Prime Mover Truck With HW79 Cabin / HW15710 TRANSMISSION

    SINOTRUK HOHAN 6x4 Euro II tractor truck with HW79 cabin and HW15710 TRANSMISSION


    Description:

    The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.The engine adopt 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.


    Packing:


    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 20 days deliver the goods to main Port.Ro-Ro ship or bulk ship or according to customer requiring.We have professional forwarding partners.

    Competitive Advantage:


    1. The best quality standard guaranteed

    2. Product upgrading and expansion of species
    3. Good quality with competitive prices.

    5. The price is competitive.

    6. Excellent and high-quality control
    7. Long lasting working life time.


    ModelZZ4257N3247
    Drive Type6x4 LHD (RIGHT HAND DRIVE IS OPTIONAL)
    CabTypeLong Cabin
    Equipmenttwo sleepers with Air Condition
    WeightKerb mass(kg)8800
    GVW(kg)40000
    DimensionsMax. L*W*H(mm)6800x2500x3095mm
    Front/Rear overhang1415/785
    Wheel base(mm)3225+1350
    Track width(mm)1830/1830
    PerformanceMax. speed (km/h)90
    Max. gradeability(%)30
    Approach/Departure angel20/40
    EngineBrandSINOTRUK
    ModelWD615.69
    Power (kw/hp)336HP(247KW)
    Max torque
    Displacement (L)9.726
    Emission StandardsEuro II
    TransmissionBrandSINOTRUK
    ModelHW15710
    Gear Shift10-forward & 2-reverse speeds
    ClutchTypeSingle plate,diaphragm spring
    Diameter (mm)430
    Actionhydraulically operating with air assistance
    BrakesTypeDrum
    Service BrakeWith dual-circuit compressed air brake
    Park BrakePower spring brake acting on rear wheel
    Auxiliary BrakeWEVB
    ABSWith ABS
    SteeringBrandZF TECHNOLOGY
    TypeZF8098 hydraulic steering with power assistance
    ChassisTypeU-profile parallel ladder frame and reinforced subframe
    Dimensions (mm)300x80x8
    SuspensionFront9 semi-elliptic leaf springs
    Rear12 leaf semi-elliptic springs
    AxlesBrandSINO HOWO
    FrontHF7 7T front axle, drum brake
    RearMCY13Q: 13 ton strengthened axle,
    double reduction driving axle
    Ratio3.08
    Option4.11/3.70
    TireType295/80R22.5 TUBELESS TIRE
    Option12.00R20 RADIAL TIRE
    Fuel tankTank capacity(L)400
    MaterialAluminum alloy/Iron
    ElectricsType24V
    Starter5.58kw(24)
    Generator2.0kw(28V 70A)
    Battery2x135Ah
