BEIBEN Brand NG80B V3 380hp 6X4 10 wheelers 20000L Water Tanker
Truck for transport water
BEIBEN V3 380hp 20000L Water Tanker Truck
Traction type: 6x4
Engine: WD10 340/380HP
Transmission: FAST
Frame: BENZ
Main Specs:
| Traction type | 6X4 |
| Driving type | LHD/RHD |
| Dimension(Lx W xH)(unloaded) | 10576×2500×3430 |
| Wheel base(mm) | 5050+1450 |
| Max speed(km/h) | 90 |
| Curb weight(kg) | 12000 |
| Loading Weight(kg) | 25,000 |
Engine Steyr technology, made in China | Model:WD615.340 | water-cooled,four strokes,6 cylinders in line,turbocharged,
directly injection With the exhaust valve brake, EGR (gas exhausted
recycling), deisel engine |
| Displacement(L) | 9.726/Diesel |
| Bore X stroke(mm) | 126/130 |
| Max power(kw/rpm) | 247/2200 (340hp) |
| Max torque(Nm/rpm) | 1350/1300-1600 |
| Emission | EURO II |
| Fuel tanker(L) | 400L steel fuel tanker |
| Clutch | Model | 430 Diaphragm type |
| Gearbox | Model | 9JS150 (Fuller) mechanism, 9gears, 1reverse gear |
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air
brake system |
| Assistant brake | Engine exhaust brake |
| Park brake | Potential springs pressing on middle and rear wheels |
| Steering system | Model | ZF8098 |
| Frame | Fish belly, shape, variable width, variable sections, side beam
structure |
| Front axle (Mercedes Benz Technology) | 7.5T Double-shoe pneumatic brake, non-driving steering axle
|
| Middle and Rear axle (Mercedes Benz Technology) | 13T Double-shoe pneumatic brake, casting, double reduction driving
axles with inter-wheel & inter-axles differential locks
|
| Tyre | 12.00R20 Radial tyre Number of tyre:10+1 spare |
| Electrical system | Battery | 2X12V/135Ah |
| Generator | 28V-35A |
| Starter | 5.4Kw/24V |
| Cab | Mercedes-Benz technology NG80B long Cabin, single sleeper with
air-conditioner Full steel skeleton structure, covered with double layer steel
plate; Can be tipped forwardly; |
| Water tank |
| Tank capacity | 20,000 liters |
| Thickness of the tanker body | the thickness of the shell is 5mm approx; |
| Dish ends | the thickness of the shell is 6mm approx; |

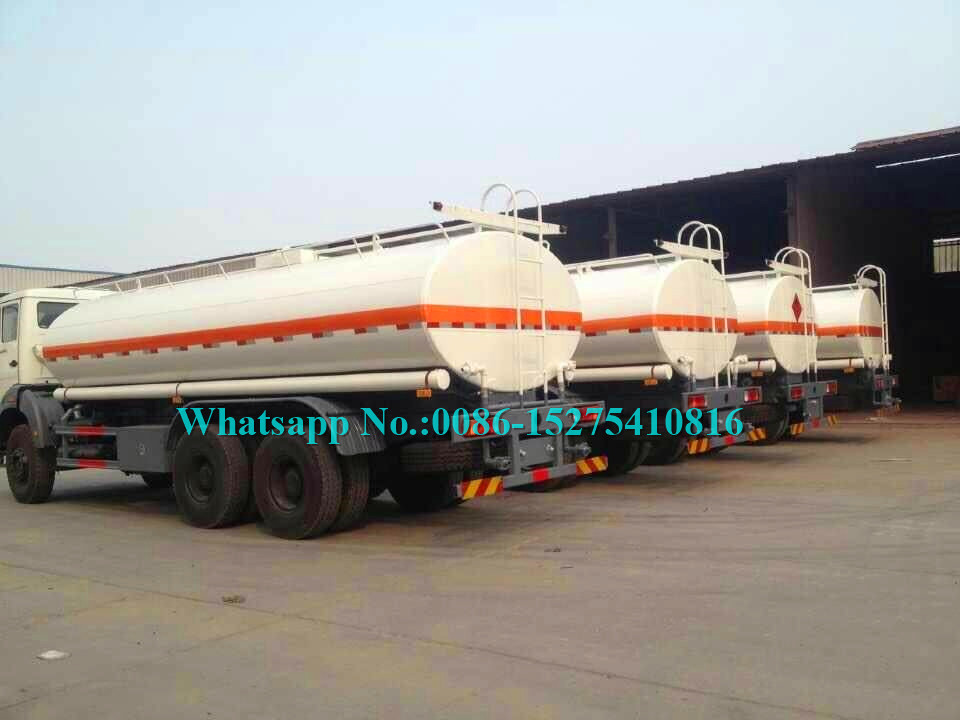

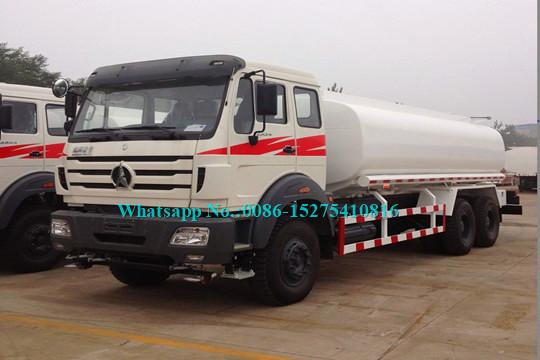

Products Photos:
Our Services
Suitable for the MID/long distance transportation of the MID/heavy
duty trucks and truck trailers.
Comfortable, safety, reliability, electronic level geared to
international top standards
1. Can i have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 25 workdays
after we received your prepayment. If you have place an order of
large quantities, then ,of course, the price can be lowered.
3. Can i customize the painting and the logo?
Yes, we offer customized logo for any type.
4. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight
Products:
Series: cargo truck, dump truck, tractor truck, special truck, bus,
etc
Driving type: RHD, LHD
Emission: EURO II, III, IV, V
