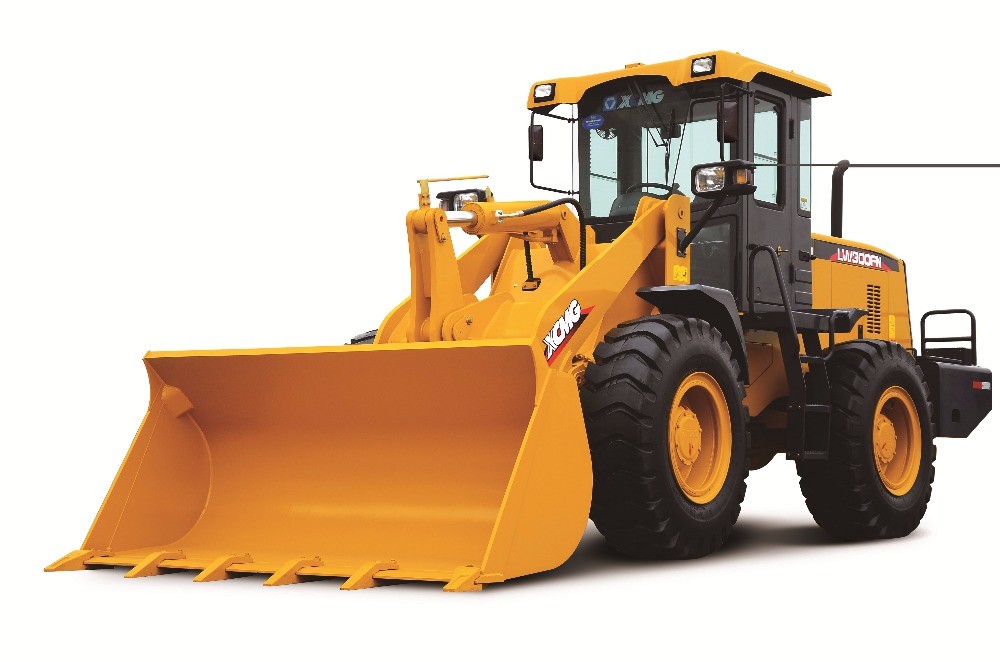

XCMG 3ton wheel loader with front wheel drived
Product Description
Parameter: XCMG 3ton wheel loader with front wheel drived
| Item | Parameter | Unit |
| Rated load | 3.0 | t |
| Bucket capacity | 1.8 | m3 |
| Dumping height | 2892 | mm |
| Dumping distance | 1104 | mm |
| Max. drawing force | ≥120 | kN |
| Max. traction | ≥90 | kN |
| Dimension (Length × Width × Height ) | 6905×2470×3028 | mm |
| Operating weight | 10.0 | t |
| Boom lifting time | 5.65 | s |
| Total time of three devices | 10.3 | s |
| Wheelbase | 2600 | mm |
| Min. turning radius (bucket outer) | 5925 | mm |
| Rated power | 92 | km/h |
| Travel speed I Gear (Forward/Backward) | 0~10/14 | km/h |
| II Gear (Forward/Backward) | 0~16/25 | km/h |
| III Gear (Forward) | 0~21 | km/h |
| IV Gear (Forward) | 0~35 | km/h |
| Boom Parameter |
| Bucket capacity | 1.5/1.8 | m3 |
| Rated load | 2.6/2.6 | t |
| Dimension (Length × Width × Height) | 7127×2470×3028; 7226×2470×3028 | mm |
| Dumping height | 3253/3200 | mm |
| Dumping distance | 1051/1142 | mm |
| Operating weight | 10.2/10.2 | t |
| Attachment parameter-grasping grass |
| Dumping height | 2948 | mm |
| Dumping distance | 2036 | mm |
| Clamp body width | 2200 | mm |
| Max. opening | 2800 | mm |
| Attachment parameter-clamp(III) |
| Dumping height | 2551 | mm |
| Dumping distance | 837 | mm |
| Min. circle diameter | 590 | mm |
| Max. opening | 1700 | mm |
| Attachment parameter-side dump |
| Bucket width | 2650 | mm |
| Dimension | 7.25×2650×3028 | mm |
| Dumping height(straight/side) dumping | 2725/3524 | mm |
| Dumping distance(straight/side) dumping | 1109/175 | mm |
| Lifting height(straight/side) dumping | 4980/5928 | mm |
| Attachment parameter-Sliding fork |
| Fork folding angle | 17.2° | |
| Attachment length | 1575 | mm |
| Attachment width | 1980 | mm |
| Attachment height | 1200 | mm |
| Fork teeth length | 1050 | mm |
Features:XCMG 3ton wheel loader with front wheel drived for Iraq
market
1. The wheel loader uses a hydro-mechanical transmission which can
make full use of engine power and can have automatic variable
transmission according to the external resistance. It avoids power
failure of the engine due to the suddenly increased external load.
The wheel loader can absorb and eliminate the vibration and impact
of external load on engine. It protects the drive system and
engine, increases the service life, facilitates the operation and
achieves higher economical and production efficiency.
2. The wheel loader uses the central articulated frame and load
sensing hydraulic steering gear. The machine can achieveshort
turning radius and superposition of the front and rear tracks upon
turning (this will ensure safe driving). The wheel loader has the
advantages of easy operation on narrow site, flexible operation,
safety, convenient maintenance and so on.
3. The wheel loader uses four-wheel drive, low-pressure wide base
off-road tires and an oscillating rear axle, so it has sound
off-road performance, good trafficability and larger traction.
4. The wheel loader is equipped with a single-pipe type hydraulic
four-wheel brake.
5. The wheel loader has a fully enclosed cab and the seats have the
functions of vibration reduction and easy adjustment. The machine
offers the driver a comfortable drive and wide view.
