RT25 25 Tonne Mobile Crane , Off Road Telescopic Boom Crane With Cummins Engine

    Buy cheap RT25 25 Tonne Mobile Crane , Off Road Telescopic Boom Crane With Cummins Engine from wholesalers

    Buy cheap RT25 25 Tonne Mobile Crane , Off Road Telescopic Boom Crane With Cummins Engine from wholesalers
    • Buy cheap RT25 25 Tonne Mobile Crane , Off Road Telescopic Boom Crane With Cummins Engine from wholesalers
    • Buy cheap RT25 25 Tonne Mobile Crane , Off Road Telescopic Boom Crane With Cummins Engine from wholesalers
    • Buy cheap RT25 25 Tonne Mobile Crane , Off Road Telescopic Boom Crane With Cummins Engine from wholesalers
    • Buy cheap RT25 25 Tonne Mobile Crane , Off Road Telescopic Boom Crane With Cummins Engine from wholesalers
    • Buy cheap RT25 25 Tonne Mobile Crane , Off Road Telescopic Boom Crane With Cummins Engine from wholesalers
    • Buy cheap RT25 25 Tonne Mobile Crane , Off Road Telescopic Boom Crane With Cummins Engine from wholesalers

    RT25 25 Tonne Mobile Crane , Off Road Telescopic Boom Crane With Cummins Engine

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : RT25
    Certification : CCC/ISO/CE
    Price : Negotiation
    Supply Ability : 1000 units per month
    Delivery Time : 25-30 work days
    • Product Details
    • Company Profile

    RT25 25 Tonne Mobile Crane , Off Road Telescopic Boom Crane With Cummins Engine

    XCMG RT25 Hot Sale 25 ton rough terrain tractor crane for sale


    Product Description:


    RT25 is equipped with the two-axle loading chassis, which has two types of drive modes, four types of steering modes and backward-forward driving functions. It also has four sections of dodecagon main booms, Jib stowed under boom, H-type outrigger, fixed balance counterweight, as well as three working modes, including: hoisting with the support of outriggers, hoisting with the support of tire and hoisting when driving. It is widely used in oil field, mine, road and bridge construction, warehousing base and other construction sites.


    Product Highlights:


    Strong Power of Hoisting, Wide Range of Work

    It has 31m main booms, 13m auxiliary booms, with the longest main booms and the highest comprehensive hoisting performance in the product of the same tonner.


    Maneuvering and Flexible, Quick and Efficient

    The max speed reaches 50km/h and the max gradeability is 55% and the min. turning radius is 5m. All these three factors make it flexible.

    Self-localization and self-locked Jib stowed under booms make it needs no auxiliary operator and no equipment, and can quickly retract, and efficiently work.


    Safe and Reliable, No Worry to Handle

    The product is equipped with lifting protection control system in case of overload, over-retracting and over-stretching as well as exclusive technology in this field like rear axle-wheel automatic return-control system and safety-driving automatic protection system. All these elevate its safety performance largely;

    The product is equipped with top features in this field, professional matching upgrading and systematic evaluation test. And it has passed test like driving 11,000km and 10,000 times hanging. Both ensure its reliability.


    Economic and Environmental Protection, with Cost Saving

    The product is equipped with optical matching power transmission system and torque converter with lockout function, which decrease the oil consumption over 20% at high speed.

    The one-way stabilized current control of parallel hydraulic pressure system reduces the loss of flow; the gravity drop luffing system needs no extra power and save the oil consumption.


    Comfortable to Handle, Convenient to Operate

    The product is equipped with full hydro-steering control system and automatic-manual gear box, which make it easy to handle. And the compounded suspension of leaf spring and hydraulic oil tank, and the self-recognition phased control of rotary cushion technology make the operation stability and comfortable;

    The product is equipped with humanized climb ladder, maintenance access and control layout. And it is equipped with professional man-machine engineering simulation analysis; exquisite man-machine interface and stand-alone fault diagnose function. It is comfortable to handle and convenient to operate.


    Detailed specification:


    Measurements ParametersLength of Entire Vehicle11703mm
    Width of Entire Vehicle2700mm
    Height of Entire Vehicle3385mm
    Wheel Base3700mm
    Wheel Track2200mm
    Weight ParametersGross Vehicle Weight When Driving26365kg
    Axle Load

    (Front Axle)12715/

    (Rear Axle)13650kg

    Kinetic ParemeterEngine TypeQSB6.7-C190
    Engine Rated Power142kw/(r/min)
    Engine Max Torque931N.m/r/min

    Driving ParametersDrivingMax Travel Speed50km/h
    Min Travel Speed2km/h
    SwerveMin Turning Radius10m
    Head Min. Turning Diameter-(m)
    Max Gradeability55%
    Min. Ground Clearance of Machine345mm
    Approach Angle22
    Departure Angle19
    Braking Distance9m
    Fuel Consumption per 100kms-(L)

    Major Performance ParametersMax. Rated Lifting Capacity25t
    Min. Rated Range3m
    Max. Load Moment of Basic Jib989.8kN.m
    Radius of Gyration of Turntable Tail3698mm
    OutriggerLongitudinal6.3m
    Horizontal6.3/4.8m
    Max. Lifting HeightBasic Boom9.1m
    Longest Main Boom30.8m
    Longest Main Boom + Auxiliary Boom41.4m
    Boom Length of CraneBasic Boom9.7m
    Longest Main Boom31m
    Longest Main Boom + Auxiliary Boom44-
    Longest Main Boom + Auxiliary Boom + Extension-

    Working SpeedMax. Slewing Speed2r/min
    Lifting SpeedMain Hoisting Mechanism130(Unload) m/min
    Auxiliary Hoisting Mechanism130(Unload)m/min
    Stretching and Retracting Time of CraneFull Stretching70s
    Full Retracting--
    Luffing TimeFull Travel Boom Lifting55s
    Full Travel Boom Lowering-s

    Outrigger Extension and RetractHorizontalStretching at the Same Time35s
    Retracting at the Same Time30s
    VerticalStretching at the Same Time30-
    Retracting at the Same Time20-

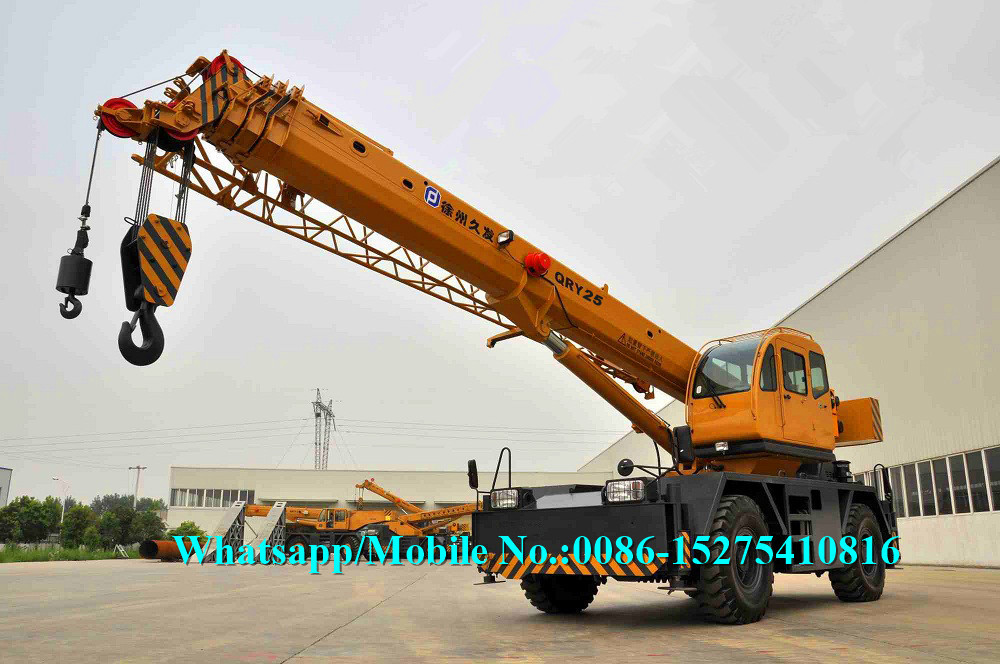

    Products Photos:

    RT25 25 Tonne Mobile Crane , Off Road Telescopic Boom Crane With Cummins EngineRT25 25 Tonne Mobile Crane , Off Road Telescopic Boom Crane With Cummins EngineRT25 25 Tonne Mobile Crane , Off Road Telescopic Boom Crane With Cummins Engine

    Certificate:

    RT25 25 Tonne Mobile Crane , Off Road Telescopic Boom Crane With Cummins Engine

    Working site:

    RT25 25 Tonne Mobile Crane , Off Road Telescopic Boom Crane With Cummins Engine
