    Mining Industrial Dump Truck , 70T Earth Mover Dump Truck ZZ5707V3840CJ

    Ask Lasest Price
    Brand Name : SINOTRUCK
    Model Number : ZZ5707V3840CJ
    Certification : CCC/ISO9001/CE
    Price : $60000-$80000/UNIT
    Payment Terms : L/C, T/T
    Supply Ability : 5000UNITS/MONTH
    Delivery Time : 30-45 Work days
    • Product Details
    • Company Profile

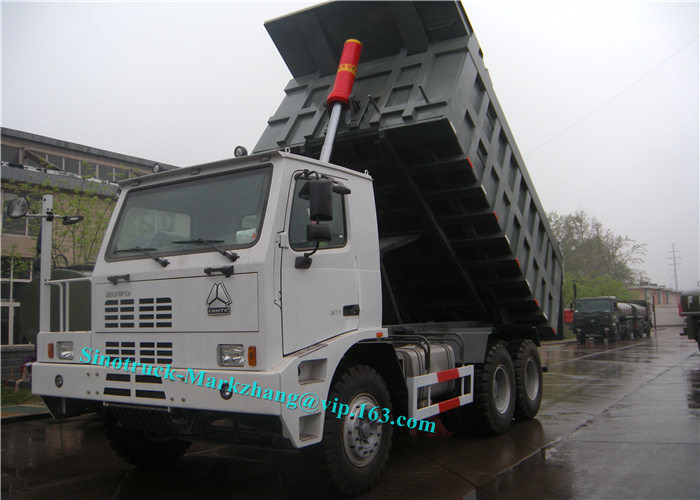

    Mining Industrial Dump Truck , 70T Earth Mover Dump Truck ZZ5707V3840CJ

    SINOTRUCK HOWO Mining Dump Truck ZZ5707V3840CJ D12.42T2 Horsepower 420Hp


    SINOTRUK HOWO 6x4 MINING DUMP TRUCK SPECIFICATIONS
    BodyCarriage Internal Dimensions(mm)5800x3100x1700
    Cubage (m3)30.57
    Steel thickness of Carriage(mm)Floor:14mm/Side:12mm
    SteelQ345
    Hydraulic Lift of CarriageFront Lift
    Weight in kgKerb weight (Kg)23000
    Gross vehicle weight (Kg)75000

    Dimension(mm)


    Dimensions(mm)Length(mm)8800
    Width(mm)3400
    Height(mm)4400
    Wheel base (mm)3800+1500
    PerformanceMaximum driving speed (km/h)46(10.47)
    Fuel consumption (1/100 km)50
    CabModelSINOTRUCK HW7D single side cab
    No bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner
    EngineModelD12.42T2(Euro 2)
    Type6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
    Horsepower420
    Maximum output Kw/r/min309/2200
    Maximum torque N.m/r/min1820/1100-1600
    Bore x Stroke126x155mm
    Valve4
    Displacement11.596L
    Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan
    TransmissionSINOTRUK HW21712 transmission ,12 forward and 2 reverse with HW70 power takeoff
    ClutchSINOTRUK CH430-21-model diaphragm-spring clutch,hydraulically operating with air assistance
    SteeringZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)
    Front AxleSINOTRUK HF12 Front Axle,HOWO 12-ton front axles of equipped with drum brakes.
    Rear AxlesSINOTRUK AC26 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles,enforced STR axle,ratio:10.47
    Brake System

    Service brake:dual circuit compressed air brake

    Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

    Wheels & TyresRims:10.0-25,12 hole-steel ;Tyres:14.00-25(36PR) Mining tyre with 1 Spare tire.
    Electrics

    Operating voltage:24V,negative grounded

    Starter:24V,7.5 Kw

    Alternator:3-phase,28V,1500 W

    Batteries:2x12 V,165 Ah

    horn,headlamps,fog lights,brake lights,indicators and reverse light

    Oil TankD type-500L Aluminum alloy fuel tank

    Mining Industrial Dump Truck , 70T Earth Mover Dump Truck ZZ5707V3840CJMining Industrial Dump Truck , 70T Earth Mover Dump Truck ZZ5707V3840CJMining Industrial Dump Truck , 70T Earth Mover Dump Truck ZZ5707V3840CJ

    Description:

    Heavy Duty Truck(China Mining Truck)

    1. The pre-filtration plus oil bath plus air filtration three-level air filter of the engine intake system is able to filter the dust effectively. This prevents the early wear of the engine and extends its service life.
    2.SINOTRUK AC26 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles,enforced STR axle,ratio:10.47

    3.SINOTRUK HF12 Front Axle,HOWO 12-ton front axles of equipped with drum brakes.

    4.SINOTRUK CH430-21-model diaphragm-spring clutch,hydraulically operating with air assistance


    Applications:


    The HOWO 70T mining dump truck, Mine Overlord, is developed by Sinotruk according to the features of the working conditions in the mines. It is suitable for the short-distance transport business in various wharves, steel mills, open pits, hydropower sites, and other places with harsh environment.


    Competitive Advantage


    1. The main reducer is reasonably designed. The support stiffness is good. The combination of forced lubrication and splash lubrication makes the service life of the reducer improve greatly.
