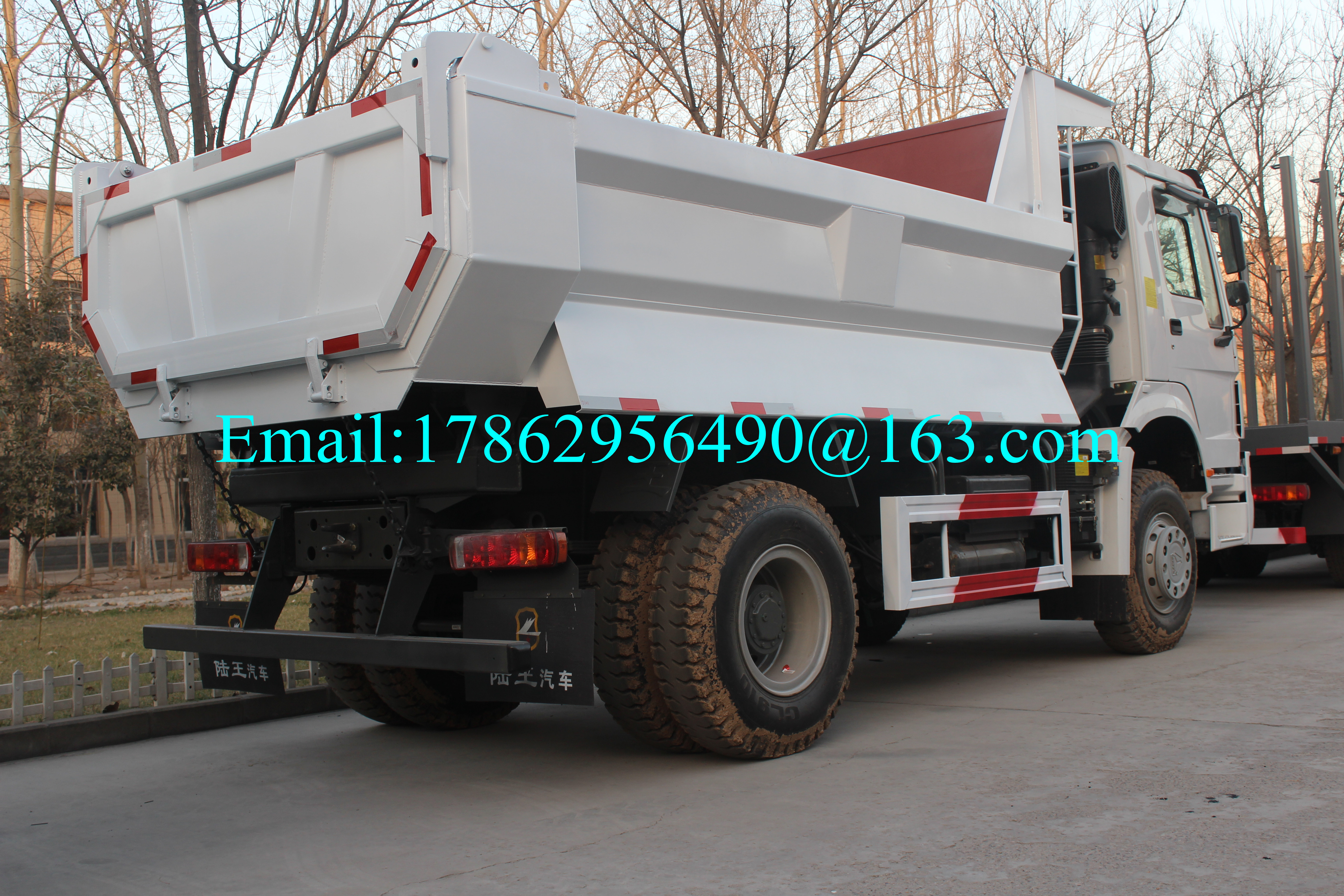

    U Type 336 HP 4x2 Heavy Duty Dump Truck 25 Ton Loading Weight 3800mm Wheel Base

    Ask Lasest Price
    Brand Name : HOWO
    Model Number : ZZ3167N3811
    Certification : ISO/CCC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 s/monthunit
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    U Type 336 HP 4x2 Heavy Duty Dump Truck 25 Ton Loading Weight 3800mm Wheel Base

    HOWO 4x2 U-type 336 HP DUMP TRUCK With German ZF8118 steering gear box


    Description:


    HOWO 4x2 U-type Dump Truck is produced by SINOTRUK.The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.


    Packing:


    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.

    Our advantages:


    1. Adopt HW76 Cab single bunk,new type seat,adjustable steering wheel.

    2. Warranty: one year or 10000 km

    3. Production time: within 35 working days

    4. After-sale service team:highly trained with overseas working experience

    5. Shipping:professional transport team,safety and quickly

    6. Support service:response quickly in 12 hours and provide professional technical


    Main Discription:


    Truck ModelZZ3167N3811
    Dimension7514x2496x3386mm
    Cargo body size5400x2300x1400mm
    Wheel base3800mm
    Volume of cargo18m3
    Thicknessbottom:8mm, side:6mm
    Gross of weight()kg16000
    Loading Weight(kg)25000
    Fuel tanker capacity400L with locking fuel cap
    Displacement9.726L
    Fuel consumption(L/100km)32
    Engine

    4- stroke direct injection diesel

    engine, 6 cylinders in line with water

    cooling , turbo-charging and inter cooling

    Horsepower336HP
    ModelWD615.69
    Emission standardEURO II
    TransmissionHW 15710,10 forwards and 2 reverse
    Steering systemZF8118
    Front axleHF9
    Rear axleHC16
    Tire12.00R20 ,7 pieces
    CabHW76 cab,(single sleeping, with air-condition), all-steel forward control
    Electrics

    Operating voltage:24V,negative grounded

    24V,7.5KW.Starter:24V,7.5 Kw

    28V,1500W.Alternator:3-phase,28V,1500 W

    2x12V,165Ah.Batteries:2x12 V,165 Ah

    horn,headlamps,fog lights,brake lights,indicators and reverse light

    ClutchSINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
    Brake system

    Service brake:dual circuit compressed air brake

    Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
