    Whilte Truck Mounted Cement Mixer Machine Concrete Mixer Vehicle Eaton Motor

    Ask Lasest Price
    Brand Name : SINOTRUK HOWO
    Model Number : ZZ5257GJBN3841W
    Certification : ISO/CCC
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1,000 units per month
    Delivery Time : 35 working days after received payment
    • Product Details
    • Company Profile

    Whilte Truck Mounted Cement Mixer Machine Concrete Mixer Vehicle Eaton Motor

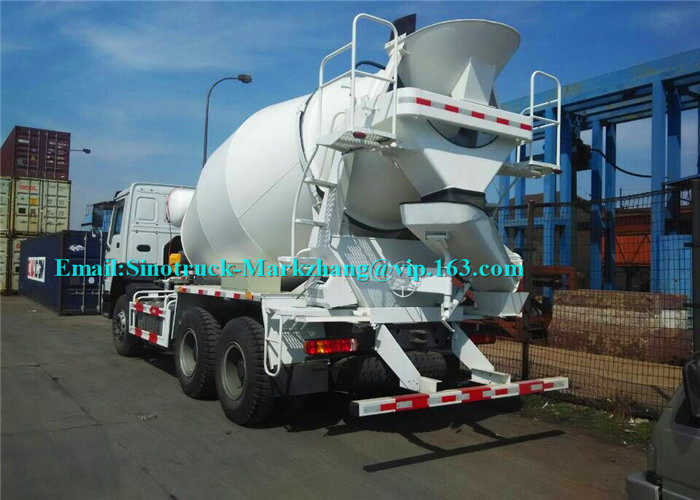

    SINOTRUK HOWO-7 Mixer Truck ZZ5257GJBN3641W 6X4 Self Loading Mixer Truck


    Specifications:



    Cubage

    Pump(ARK PV089MHR)+Motor(ARK MF089V)+Reducer(TOP T60)

    Mixing Volume(M³):8m³

    Stuffing Volume(%):59.3

    Feeding Speed(M³/min):≥3

    Discharging Speed(M³/min):≤2

    Discharge Residue(%):≤0.2

    Slump Scope(mm):50~220

    Drum Speed( Min):0~16

    Water supply Syste:400L/Pneumatic

    Drum Material:8/16MnR

    Steel:3mm,4mm,5m


    Weight in kg


    Kerb weight (Kg)

    13700

    Gross vehicle weight (Kg)

    30000

    Dimension(mm)



    Dimensions(mm)

    Length(mm)8715
    Width(mm)2550
    Height(mm)3950
    Wheel base (mm)3600+1350

    Performance

    Maximum driving speed (km/h)92
    Fuel consumption (1/100 km)38

    Cab

    ModelSINOTRUK HOWO HW76 cab
    single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner

    Engine

    ModelWD615.69(Euro 2)
    Type6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
    Horsepower336
    Maximum output Kw/r/min247/2200
    Maximum torque N.m/r/min1350/1300-1600
    Bore x Stroke126x130mm
    Valve2
    Displacement9.726L
    Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan
    TransmissionSINOTRUK HW19710 transmission ,10 forward and 2 reverse
    Clutch

    INOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance

    SteeringZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)
    Front AxleSINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.
    Rear AxlesSINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
    Brake System

    Service brake:dual circuit compressed air brake

    Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

    Wheels & TyresRims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.

    Electrics

    Operating voltage:24V,negative grounded

    24V,7.5KW.Starter:24V,7.5 Kw

    28V,1500W.Alternator:3-phase,28V,1500 W

    Batteries:2x12 V,165 Ah

    horn,headlamps,fog lights,brake lights,indicators and reverse light

    Oil TankSquare type-400L Aluminum alloy fuel tank

    Description:

    1. China Truck SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.

    Pump(ARK PV089MHR)+Motor(ARK MF089V)+Reducer(TOP T60)

    Option:Rexroth+Top


    Applications:


    Concrete mixing truck uses strong and firm tank, which has different volumes, and meets the customers requirements. Compact and rational structure,stable and reliable performance,gorgeous and elegant cab,safe and comfortable. It is used for various construction sites.


    Competitive Advantage:


    1. Establishing files for every customer,our engineer will teach you how to maintain and mend .We confirm that the trucks will be always supplied the correct and enough parts whenever and wherever need. We are specialized in this area more than 10 years,rich experience and well after-sale service always with us.

    2. Technique support and training. Customization service, as per your request, we will customize our production
