    Easy Control Concrete Construction Equipment Concrete Mixer Vehicle With 30% Gradient SW3500

    Ask Lasest Price
    Brand Name : SINOTRUCK
    Model Number : SW3500
    Certification : CCC/CE/ISO
    Price : Negotiable
    Payment Terms : LC / TT
    Supply Ability : 5000 UNITS/Month
    Delivery Time : 30-35 work days
    • Product Details
    • Company Profile

    Easy Control Concrete Construction Equipment Concrete Mixer Vehicle With 30% Gradient SW3500

    China Famous Brand 3.5m3 Easy Control Mini self loading concrete mixer SW3500 with 30% gradient


    Brief Description:

    a) it is combined of concrete transportation truck and self loading-discharging mixer.

    b) It is assebled with auto-weighing system, pumping water function, auto-loading bucket, self discharging, worked as a small mobile concrete batching plant.


    c) one machine widely applied to working on romote areas where no electric power, middile projects, farmer’s houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high effiency concrete output

    Advantages
    1) Saving time and labor
    2) Saving concrete transporting cost
    3) Mobile and highly motorized on site, more efficient
    4) Low maintenance cost
    5) High reliable and durable
    6) Easy operation and high intelligent
    7) Closed circuit hydraulic system, more powerful and reliable.

    Performance:
    Mobile self-loading concrete mixer
    4X4X4 concrete mixer
    Reliable,high-performance
    Drum capacity:5.3m³
    Output:3.5m³

    Products Specs:

    SW3500 Specifications
    MIXING UNITDrum capacity 5.3M3. Concrete output: 3.5 M3 per batch. Double mixing screws, cover for emergency unloading. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed indipendent from r.p.m. of diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for high discharge over 1.8 m to the four sides of the vehicle.
    ENGINEYuchai YC4A125Z,diesel,water-cooled,4 cylinders. Rated power 92kw/2200rpm.
    TRANSMISSIONFull hydraulic driving. 4 wheel drive and 4 wheel steering. hydraulic Pump and motor are connected to the differentials through reducer. 4X4X4
    SPEEDLow: 0-10km/h, high: 0-20km/h
    DRIVING SEATFront cab on side of loading shovel.
    HYDRAULIC SYSTEMTwo circuits. 2 Plunger pumps for walk and drum rotation. 2 gear pumps for services. Inlet and outlet filter. Heat exchanger water/oil-air type.
    JOYMIXAll hydraulic functions of shovel controlled by a single - fully servo controlled Joystick.
    LOADING SHOVELCapacity 650 liters, complete with hydraulic opening gate.
    CHUTESlewing. Fitted with two pins easily detachable to increase the discharge height.
    WATER SYSTEMSelf-contained. Hydraulic driven water pump, water meter. High pressure water pump & washing gun
    GRADIENTFully loaded 30%
    BRAKESHydraulic brakes,Twin indipendent circuits. Hydraulic parking brake
    TYRESConstruction tyres 16/70-20.
    STEERINGHydraulic. 3 way steering.
    ELECTRIC SYSTEM24V. Safety battery cut-off.
    TANKSWater: 2x350 liters. Diesel: 165 liters. Hydraulic oil: 150 liters.
    CHASSISSteel profile specially engineered for off-road operations.
    OVERALL DIMENSIONSLong: 7.2M width 2.5M high: 3.3M
    WEIGHT8600kgs, equally distributed on both axles
    SAFETYMachine equipped with checking and block valves for maximum safety of the operator.
    MEASURING SYSTEMElectronic weating system

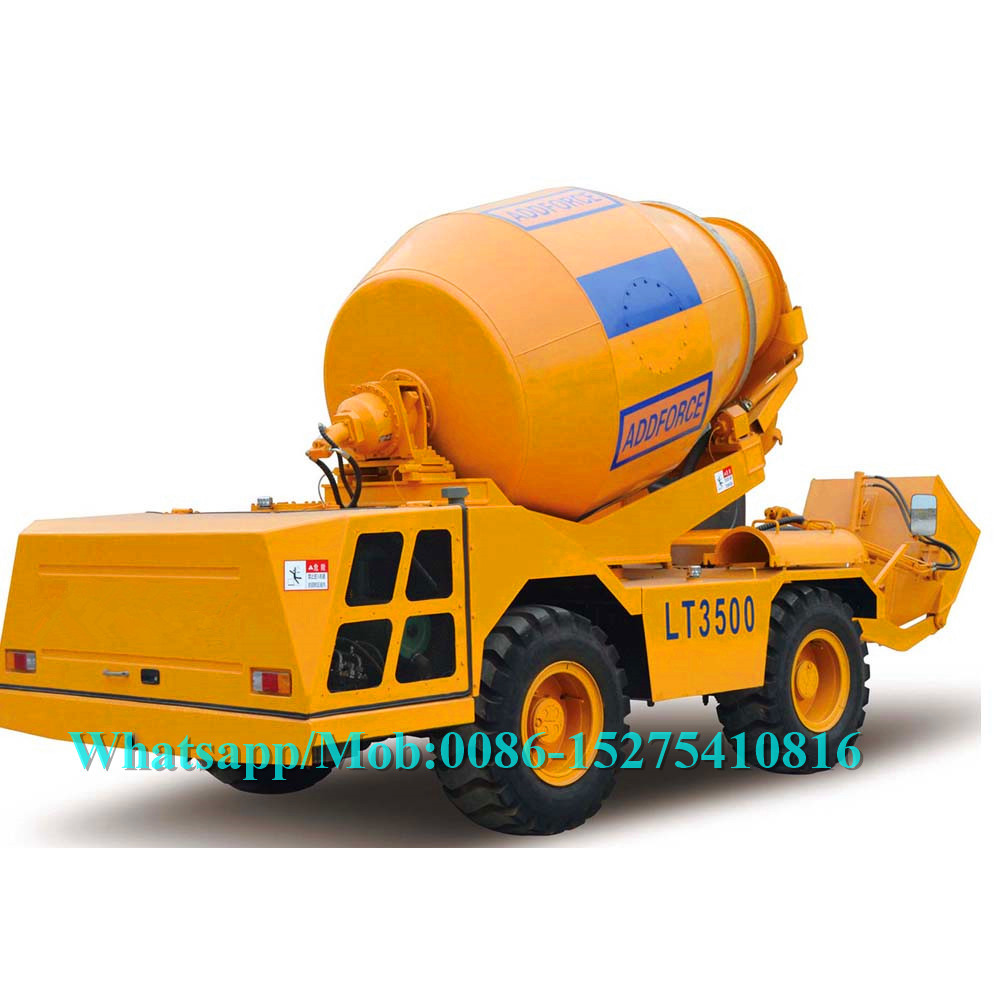

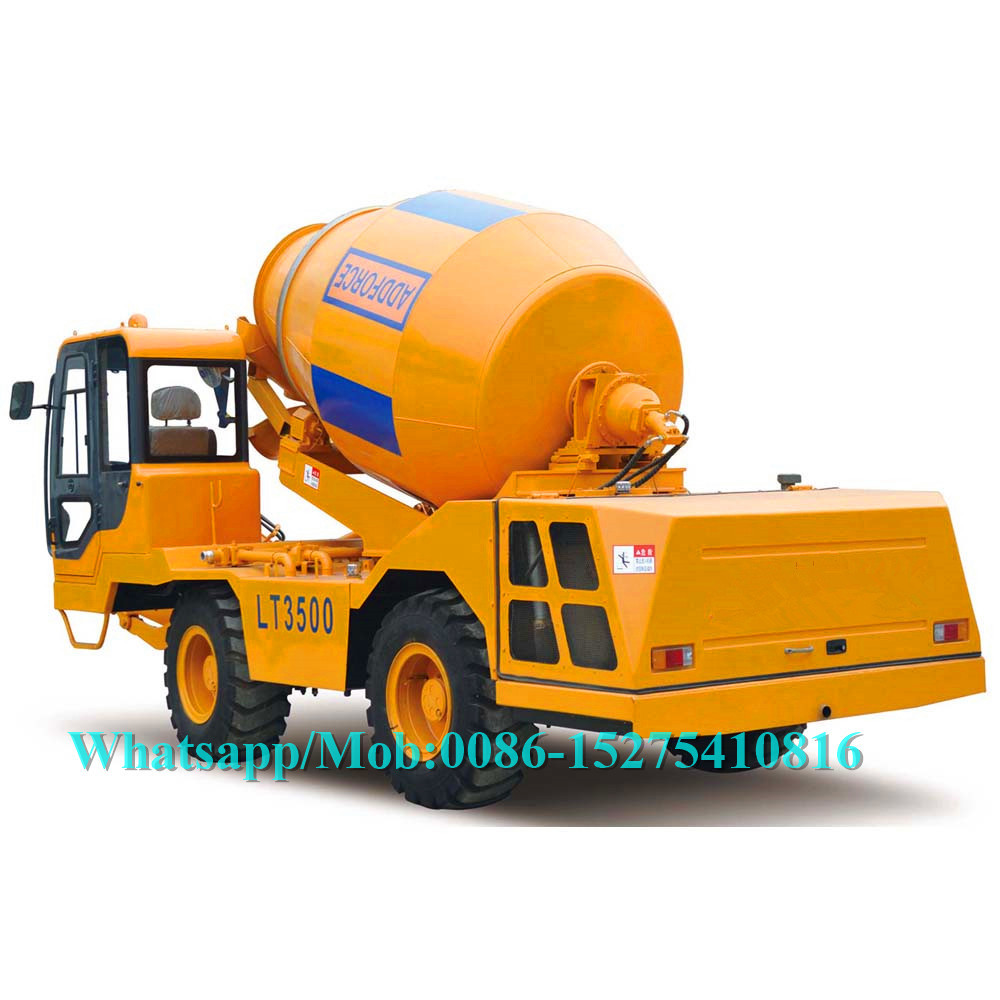

    Construction Photos:
    Easy Control Concrete Construction Equipment Concrete Mixer Vehicle With 30% Gradient SW3500Easy Control Concrete Construction Equipment Concrete Mixer Vehicle With 30% Gradient SW3500Easy Control Concrete Construction Equipment Concrete Mixer Vehicle With 30% Gradient SW3500

    Our services:
    Warranty: one year
    Including one year spare parts together with machine. In the first year, spare parts free. Freight belongs to buyer. Freight in China belongs to seller.
