    Yellow Road Construction Machinery XCMG GR215 GR2153 Compact Motor Grader

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : GR215
    Certification : CCC/CE/ISO9001
    Price : Negotiable
    Payment Terms : LC/ TT
    Supply Ability : 3000 units/ Month
    Delivery Time : 15days after pay deposit
    • Product Details
    • Company Profile

    Yellow Road Construction Machinery XCMG GR215 GR2153 Compact Motor Grader

    GR2153 Motor Grader

    Features:


    The GR Series Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, town and country roads building ,and farmland improvement..

    Performance and characteristic

    New appearance design.

    The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.

    The electro-hydraulic controls the power shift gearbox,with 6ahead gears and 3 back gears.

    The international matching hydraulic parts are adopted,with reliable operation.

    The motions of the blade are fully hydraulically controlled.

    The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.

    The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .

    The cab is grand and nice,with wide eyeshot and good sealing .

    The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added .


    Main Parameters:


    DescriptionUnitParameter value
    Engine modelQSB6.7 , 160kw
    Overall dimension (standard)8970x2625x3420
    Total weight (standard)kg16500
    Tire specification17.5-25
    Ground clearance (front axle)mm430
    Treadmm2156
    Space of front and rear axlesmm6219
    Space of middle and rear wheelsmm1538
    Forward velocitykm/h5/8/11/19/23/38
    Reverse speedkm/h2005/11/23
    Tractive effort f=0.75kN85
    Maximum gradeability%≥25
    Tire inflation pressurekPa260
    Working system pressureMPa20
    Transmission pressureMPa1.3—1.8
    Maximum steering angle of front wheel±48°
    Maximum slant angle of front wheel±17°
    Maximum oscillating angle of front axle±15°
    Maximum oscillating angle of equilibrium boxFront15°,Rear15°
    Maximum steering angle of frame±27°
    Minimum turning radiusm7.3
    Scrape knifeMaximum lift heightmm400
    Maximum cutting depthmm500
    Maximum tilt angle90°
    Cutting angle28°—70°
    Angle of revolution360°
    Length & chord heightmm4270x610
    CoolantL50
    Fuel tankL280
    EngineL24
    TransmissionL38
    Hydraulic oilL110
    Drive axleL28
    Balancing boxL46

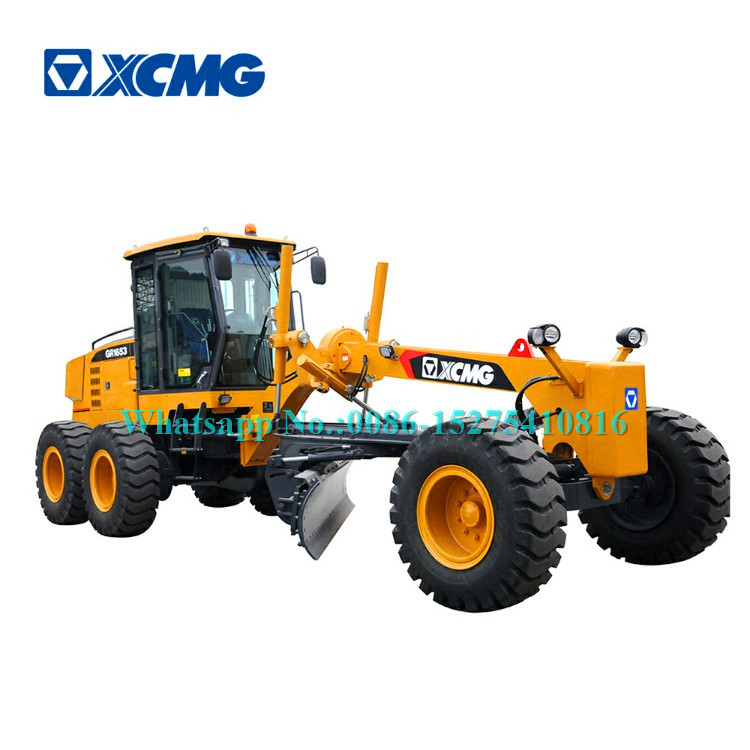

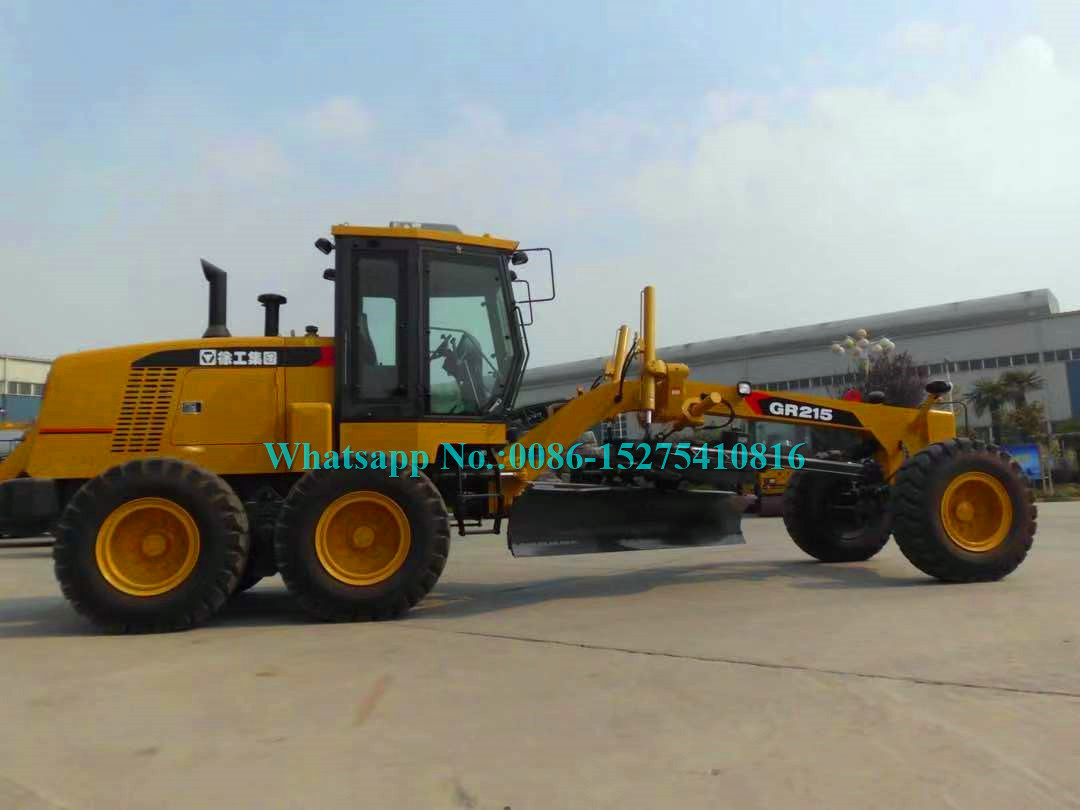

    Products Photos:

    Yellow Road Construction Machinery XCMG GR215 GR2153 Compact Motor GraderYellow Road Construction Machinery XCMG GR215 GR2153 Compact Motor GraderYellow Road Construction Machinery XCMG GR215 GR2153 Compact Motor GraderYellow Road Construction Machinery XCMG GR215 GR2153 Compact Motor Grader

    Export Market:

    Africa:

    Egypt, Sudan, Libya, Tunisia, Algeria, Morocco, Azores, Madeira, Ethiopia, Eritrea, Somalia, Djibouti, Kenya, Tanzania, Uganda, Rwanda, Burundi and Seychelles, West Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d’Ivoire, Ghana, Togo, Benin, Niger, Nigeria and Canary Islands, Chad, Central Africa, Cameroon, Equatorial Guinea, Gabon, Congo, Democratic Republic of the Congo, Sao Tome and Principe, Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, Namibia, South Africa, Swaziland, Lesotho, Madagascar, Como Luo, Mauritius, Reunion, St. Helena, etc.


    South America:

    Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador, Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama, Antigua and Barbuda


    South Pacific:

    Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji, Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook Islands, Republic of the Marshall Islands, American Samoa, Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu, Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.


    Asia countries:

    North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar, Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan, Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus, Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan, Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.
