    10 Wheeler 20ft 40ft Container Side Lifter / Container Side Loader Trailer ISO Approval

    Ask Lasest Price
    Brand Name : SINOTRUCK
    Model Number : Side Lifter Semi Trailer
    Certification : ISO / CCC / SGS / BV
    Price : Negotiable
    Payment Terms : LC/TT.
    Supply Ability : 300 units per month
    Delivery Time : Within 15 working days
    • Product Details
    • Company Profile

    10 Wheeler 20ft 40ft Container Side Lifter / Container Side Loader Trailer ISO Approval

    Port Equipment SINOTRUCK XCMG10 wheeler 420hp tractor truck 40ft container sidelifter box loader semi trailer


    SINOTRUCK A7 10 wheeler 420hp tractor truck+ 20ft 40ft container side lifter 37Tons lift capacity box loader container trailer


    Specifications:

    Side lifter Container Trailer Specifications
    Specifications
    Specification:GB/T 3811-2008
    Dimension:14100*2500*4100mm (Customized)
    Load Capacity:45-100 Tons
    Function:Lift 1*40ft container, or 2*20ft container
    Distance Between Trailer And ContainerOptimum distance: 400mm
    Largest distance: 1500mm
    Side Lifter CraneQuality Side Crane
    Max Lifting Capacity40000kg
    Max. Stabilliser Stretch3200mm
    Max. Working Range4000mm
    Max. Pressure of Hydraulic28MPa
    Hydraulic SystemItalian CASAPPA Pump
    Electrolic Control SystemHydraulic control value: Netherlandish AMCA
    Telecontroller: German NBB
    Voltage: 12V
    Two ChainTwo chain: lugs (imported)
    Deisel EngineJanpanese Kubota
    Chassis
    Main Beam:

    Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B,

    welded by automatic Submerged-Arc processes.

    Frame Beam:

    Top Flange 14mm,width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm,

    main beam height 500mm

    Painting:Complete chassis sand blasting to clean rust,1 coat of anti-corrosive prime,2coats of final paints
    Parts
    Axle:FUWA or BPW, 3 units, 3*13 tons
    Suspension:Mechanical or Air Suspension
    King Pin:2'' or 3.5''
    Landing Gear:28T lifting capacity with two speed
    Rim:9.0*22.5 12pcs
    Tire:12R22.5(Option:11.00-20, 12.00-20)
    Brake System:WABCO, ABS Optional
    Leaf Spring:90mm(W)*16mm(T)*10 Layer (Option:90/16/10;100/16/10)
    Electrial System:24V; 7 ways receptacle; LED lamps
    Accessories:One tool box, one spare tire carrier
    Colour and Marking:Comply with the customer’s requirement

    10 Wheeler 20ft 40ft Container Side Lifter / Container Side Loader Trailer ISO Approval10 Wheeler 20ft 40ft Container Side Lifter / Container Side Loader Trailer ISO Approval

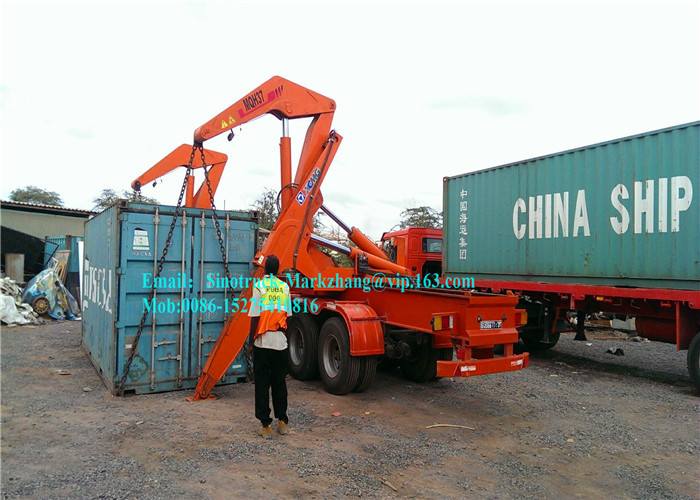

    Description:

    The semi-trailer is used for lifting and carry two 20 feet containers or

    one 40ft container in port, station and freight yard, the trailer’s hydraulic system power is from PTO in tractor truck, it can be operated both wireless remote control and manual operation.

    All the container transporter semi trailer can be customized,welcome you have a visit to our factory


    Applications:

    1. Load 20/40/45 feet Containers.

    2. Attached to Tractor Truck.

    3. Max Lifting capacity: 37000kg

    4. Max working range: 4000mm


    Competitive Advantage:

    1. SINOTRUK brand stronger chassis, most suitable chssis for side lift.

    Axle: the best brand in China without maintaining.

    Brake system: 6 brake chamber WABCO brand braking valve, dual line brake system

    with ABS

    2. Power take off(PTO) or Diesel APU;

    3. Side loader can slide to fit 20ft-40ft Containers.

    4. Wireless remote control/Manual operating.

    5. Engine throttle size and engine speed can be control, improving working efficiency.

    6. The front and rear crane can work together and Separate, adjusting container conveniently.

    7. Safety control with stop button.

    8. Elegant appearance,Reliable performance,

    9. Convenient operation,Facilitate manufanture and maintenance.

    10. With strong power and rich attachments, the XCMG skid steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.
