    450mm Min Ground Clearance 4x4 Farm Tractor Agri Farm Machinery Six Cylinder Engine

    Ask Lasest Price
    Brand Name : KAT
    Model Number : KAT1604-F
    Certification : ISO9000
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1,000 units/month
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

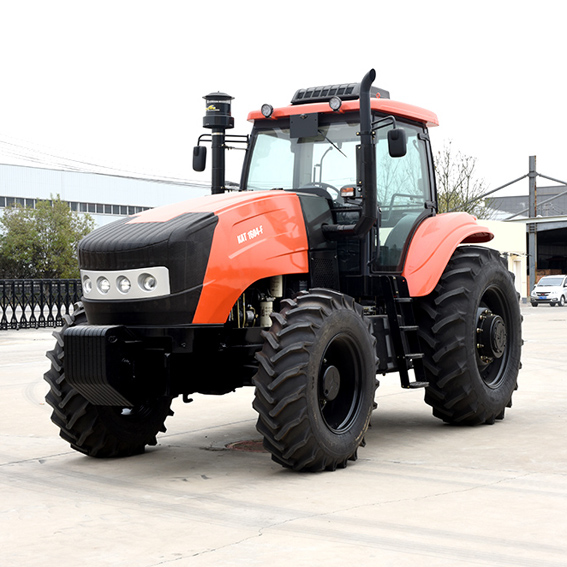

    450mm Min Ground Clearance 4x4 Farm Tractor Agri Farm Machinery Six Cylinder Engine

    160hp 450mm Min. Ground Clearance 4x4 Agricultural Farm Tractor Equipment


    Description:

    Six cylinder engine, turbo charge, inter-cooling, 12 hours rated power: 118kw, fully enclosed cab, air heater, air conditioner, Fast transmission with eight shifts, 24+8 gears, synchronizer shift, unit frame chassis, driving system with modularized structure, famous international brand front axle, construction machinery rear axle, double rear tire, caliper disc brake, PTO shaft rotation speed: 540/1000 r/min, fully hydraulic front wheel steering, three groups of single/dual action hydraulic output, plough depth control method by position, floating control, and suspension mechanism of rear-mounted Category III. Supporting Weichai engine, torque reserve, strong power, low fuel consumption.And, Weichai special desert air cleaner, more advanced performance, high reliability, outstanding performance in the bad environment and heavy load operation.


    Packing:

    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.

    Competitive Advantage:


    1. Full hydraulic steering system, easy to operate and flexible.

    2. The side shift is used to make the operation more light.

    3. Reinforced semi axle bushing, durable type stronger.

    4. The enhanced transmission system has high transmission efficiency and high reliability.

    24F+8R gear shifting, reasonable speed matching, high operation efficiency and strong adaptability.

    Humanized design, driving more relaxed

    5. The man-machine engineering optimization design of the whole vehicle can enhance the safety and comfort of the driver.

    6. Three-point suspension system, high lifting force, strong reliability.

    7. Enhanced chassis, enhanced gearbox, heavy weight, strong vehicle grip, greater than resistance to soil operations, more efficient.


    Detailed Specification:


    ModelKAT1604-F
    EngineRated Power/speedkW/r/min118(160)/2200
    Drive Type/4×4
    Dimension(Length/Width/Height)mm5990/2580(double rear tyre 3510)/3280
    Wheel Basemm3080
    Track(Front wheel)mm1888-2122
    Track(Rear wheel)mm1952-2568
    Min. Ground Clearancemm450
    Min. operation weightkg6200
    Front counter weightkg400
    Rated Traction ForcekN36
    No. of gears24F+8R
    Forward GearSpeedkm/h2-34
    Reverse GearSpeedkm/h2-19
    Tyre ModelFront Tires/14.9-28
    Rear Tires/18.4-38
    Power-output shaft Type/Rear position, independent
    power-output shaft Rated Speedr/min540/1000
    Max. Lifting forcekN36
