    FAW JH6 420 Hp 6x4 10 Wheels Tractor Trailer Truck Head With ETON Transmission And JH06 Cab

    Ask Lasest Price
    Brand Name : FAW
    Model Number : CA4251
    Certification : ISO/CCC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 UNITS/MONTH
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

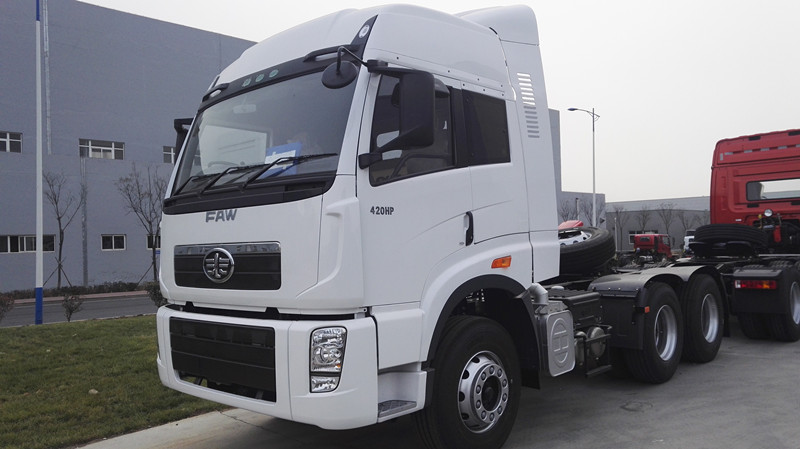

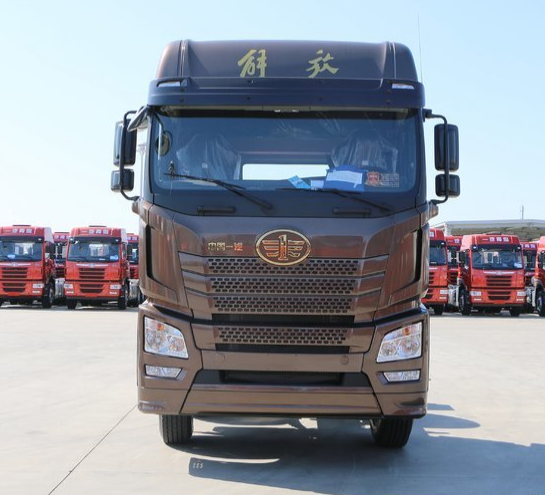

    FAW JH6 420 Hp 6x4 10 Wheels Tractor Trailer Truck Head With ETON Transmission And JH06 Cab

    FAW JIEFANG JH6 25tons Gross vehicle weight 420 hp 6x4 tractor truck head


    Description:


    Apply to long distance and high efficiency transportation.

    High safety,high reliability,high comfort,low curb weight ,low fuel consumption,low maintenance cost.

    FAWDE/WEICHAI engine,FAW/FAST/EATON/ZF gearbox,FAW/PX axle,high reliability.

    European standard cabin,big living room design concept.


    Competitive Advantage:


    1. The best quality standard guaranteed

    2. Product upgrading and expansion of species

    3. Good quality with competitive prices.

    5. The price is competitive.

    6. Excellent and high-quality control

    7. Long lasting working life time.


    Product Specification:


    MassCurb Weight of Chassis (kg)8870DimensionsOverall dimensions (mm)Length (mm)7015
    Axle load distribution (kg)Front4650Width (mm)2495
    Rear4220Height mm3910
    Curb weight (kg)--Wheel Base(mm)3300+1350
    Axle Load distribution(kg)Front--Wheel Track(mm)Front2056
    Rear--Rear1830
    Gross vehicle weight (kg)25000Min. Ground Clearance(under rear axle) (mm)314
    MAX Axle Load distribution (kg)Front6500Approach Angle (°)22
    Rear2*13000Departure Angle(°)55
    Max. drawing Capacity (kg)40100Front Overhang (mm)1495
    Total weight with trailer (kg)49000Rear Overhang (mm)770
    Max. Load Capacity(kg)16100Distance from tractor seat to ground (loaded)1261
    PerformancesMin. Steering Diameter (m)15.6Tractor seat pin D.Φ50(mm)
    Max. Speed (km/h)118EngineModelWP12.460N
    Max. Grade ability (%)38Displacement (L)11.6
    Parking Brake Grade Angle (%)12Max. Output Power kw/rpm338/1900
    Direct Shift Min. Stable Speed (km/h)35Max. Torque Nm/(r/min)2110/1000~1400
    Direct Shift Accelerate Time (s)30
    (40-70km/h)Rated fuel consumption g/kw·h
    Sliding Distance(from 50km/h) (m)≥800Min. Fuel Consumption g/kw·h
    Braking Distance (from 30km/h) (m)≤10CabTypeJH06 Cab on engine, all metal closed, integral front tilting angle 44º
    Fuel Consumption (l/100km)38
    Fuel Tank Capacity (L)800Seats2
    FrameType

    Side rails, punching

    and riveted construction

    ClutchTypeDry type, single plate, diaphragm spring clutch, hydraulic controlled and air auxiliary power supply
    Main Rail section300×80×8(mm)
    Auxiliary Rail SectionDriven Plate Dia.φ430(mm)
    TransmissionModelEATON ETO-20113Power SteeringModelRecycle ball type, Hydraulic power steering
    Forward Shifts Ratio

    iDL=13.94,i1=9.63,

    i2=7.60,i3=6.07,

    i4=4.85,i5=3.87,

    i6=3.06,i7=2.44,i8=1.95,

    i9=1.59,i10=1.25,

    i11=1.00,i12=0.80

    Ratio22.2:1,limit: 26.2:1
    Pump Max. pressure(kPa)13000
    Reverse Shift Ratio

    iDPR=18.86,

    RL=7.58,RH=3.11

    Wheel AlignmentsWheel CamberBrake SystemRated working air784
    pressure (kPa)
    Kingpin sidewise inclinationDriving BrakeDouble circuit air brake
    Kingpin extroversion1°46Parking BrakeSpring energy storage type
    Toe-in (measured onΦ648 diameter)0-2(mm)Auxiliary BrakeEngine Brake / Exhaust Brake
    Rear AxleTypeFAW Single Reduction 457Electrical SystemTypeSingle line, negative grounded
    Reduction Ratio3.7Voltage24V
    Generator1500W
    Differential lockInter-axle differentialBattery (V/Ah)2-12/150
    Truck BodySize (mm)--WheelRim9.00*22.5
    TyreModel315/80R22.5-20
    Air pressure(kPa)770±10
