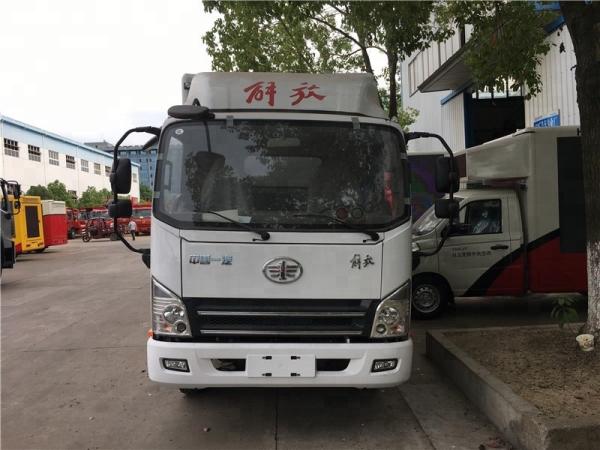

    FAW 4x2 Diesel LED Screen Mobile Advertising Truck 3707ml Displacement

    Ask Lasest Price
    Brand Name : FAW
    Model Number : Tiger V
    Certification : CCC/ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1000 units/month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    FAW 4x2 Diesel LED Screen Mobile Advertising Truck 3707ml Displacement

    FAW 4x2 Diesel mobile led screen advertising truck with OPTIONAL color

    Description:


    We provide the upper box of the led advertising truck including the basic equipmet without chassis as well as the LED screen and basic equipment so that so you could fix and install them on your chassis or your box van.The basic equipment of the led advertising truck includes silent generator, aluminum checkered plate wall, waterproof leather or wooden floors, safe and intelligent switch power distribution system, integrated electro mechanical control, lighting, circulating ventilation fans, shockproof computers, and gigabit media control system, stereos, one amplifier, four waterproof column loud speakers, and other tiny accessory facilities within the body.The optional equipment of the led advertising truck includes hydro cylinder lifting, hydraulic folding stage, etc.


    Feature:


    The area of the left or right screen of the led advertising truck mainly ranges from 3.22 m3 to 12.2 m3. The led advertising truck could be of one full color side screen, two full color side screens, three full color side and rear screens. Any combinations are available between full color screen, monochrome color screen (usually rear side), roller screen, and hydraulic folding stage & hydro cylinder lifting (usually for the full color screen in left side or right side).The basic equipment of the led advertising truck includes silent generator, aluminum checkered plate wall, waterproof leather or wooden floors, safe and intelligent switch power distribution system, integrated electro mechanical control, lighting, circulating ventilation fans, shockproof computers, and gigabit media control system, stereos, one amplifier, four waterproof column loud speakers, and other tiny accessory facilities within the body.The optional equipment of the led advertising truck includes hydro cylinder lifting, hydraulic folding stage, etc.


    Packing:


    Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.


    Product specification:


    The Parameters of led advertising truck
    Nameled advertising truck
    Dimension(LxWxH)6900X2320X2450(mm)
    Total Mass9705Kg
    Rated Payload7000Kg
    Kerb Weight2705Kg
    Passenger3
    Appr/Dep Angle21/17
    The Parameters of Chassis
    Driving Type4*2 LHD/RHD
    Wheel Base3360 mm
    Gearbox6 (5 forward+1 reverse, manual)
    Front/Rear Track1555/1590(mm)
    Tyre7.00-16
    The Number of Tyre6+1(spare tyre)
    Front/Rear Suspension1085/1405 (mm)
    Leaf Spring Number4/6+7
    The Paremeters of Engine
    Rated Power89hp
    Fuel TypeDiesel oil
    Displacement/Capacity3707ml
    Emission StandardEuro3
    CylinderStraight/4/watercooling
    Max. Torque265N.m
    Velocity300rpm
    Type of ScreenCustomize LED screen, roller screen and lifting screen on 3 sides.
    Led Side Screen Area2.3 m2 - 12.8 m2 (mainly)
    Screen Lift Height1.5 m
    LED's Pixel PitchOptional:6/5 mm
    Common AccessoriesSilent generator, aluminum checkered plate wall, waterproof leather or wooden floors, safe and intelligent switch power distribution system, integrated electric mechanical control, lighting, circulating ventilation fans, shockproof computers, and gigabit media control system, stereos, one amplifier, four waterproof column loud speakers, and other tiny accessory facilities within the body.
    Optional AccessoriesHydro cylinder lifting, hydraulic folding stage, etc.
