Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck

    Buy cheap Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck from wholesalers

    Buy cheap Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck from wholesalers
    • Buy cheap Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck from wholesalers
    • Buy cheap Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck from wholesalers
    • Buy cheap Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck from wholesalers

    Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck

    Ask Lasest Price
    Brand Name : SINOTRUCK
    Model Number : ZZ3257N3847A
    Certification : CCC/ISO9001/CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 5000UNITS/MONTH
    Delivery Time : 30-45 Work days
    • Product Details
    • Company Profile

    Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck

    CNHTC HOWO dump truck /10 wheels/ 336hp engine/SINOTRUK/ air conditioner/Dumper/Tipper Truck/heavy duty truck


    Product detailes:


    Howo
    Chassis Model
    ZZ3257N3847A/S0WA-5
    Driving Type6X4

    Cabin
    HW76—HOWO Extended cabin. Basic configuration is with single sleeper; new type seat; adjustable steering wheel from up and down, front and rear ; new type integral warm air heater with European style; the German VDO instrument which synchronized with the world high level heavy duty truck; road vehicles is with four point floating suspension (front spiral spring, rear air spring) with shock absorbers, off road vehicles is with four point floating spring suspension + shock absorbers, each type of cabin is with transverse stabilizing device, double lock safety belt; external sunshade; fourth generation air conditioning, air conditioning control board is liquid crystal display with LED lighting; with cruise; with sound warning system for abnormal generator voltage (to prevent damage of electronic devices); electric windows.

    Engine
    Make: SINOTRUK
    Diesel 4-stroke direct injection diesel engine
    Engine model: WD615.69, 336HP ;
    Emission :Euro 2
    6-cylinder in-line with water cooling, turbo-charging and intercooling
    Displacement: 9.726 L
    TransmissionHW19710, 10F & 2R,HW50
    SteeringZF power steering, modol ZF8118, hydraulic steering with power assitance
    Front Axle

    HF9,1x9000 KGS

    Steering with doubleT-cross section beam

    Rear AxleHC16, 2x16000 KGS
    Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
    Ratio:5.73
    Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange
    ChassisFrame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
    Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
    Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
    BrakeService brake: dual circuit compressed air brake
    Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
    Auxiliary brake: engine exhaust brake
    ElectricsOperating voltage: 24 V, negative grounded
    Starter: 24 V, 5.4 Kw
    Alternator: 3-phase, 28 V, 1500 W
    Batteries: 2 x 12 V, 135 Ah
    Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
    Tyres12.00R20, radial tyres with one spare tyre
    Fuel Tank300L
    Cargo Body5600/5800x2300x1500mm
    Vehicle Size8545x2496*3490mm

    The box (tank) of special vehicles with hydraulic lifting mechanism can be removed or inclined at a certain angle, which can make the goods unloading by themselves or unloading by Horizontal push.

    Purpose: Mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), can also be used for integrated stuff, mainly in mining, construction sites and so on. Usually supporting the use of loaders, excavators, belt conveyors etc.
    Category: it can be divided into special tripper trucks, ordinary tripper trucks and mining tripper trucks .


    Sinotruk Howo Vehicle Details:

    Sinotruk Howo Products Advantages:
    1.Rich Experience in sale of the Sinotruk’s heavy equipment & truck.
    2.Expert in kinds of sinotruk heavy trucks and spare parts.
    3.Personalized customization to meet your working requirements.
    4.High quality of Original parts & OEM services.
    5.Engineers and experts on call for pre/after sale support.
    6.One-stop service with sinotruk heavy trucks, parts as well as stand-by advice & support.

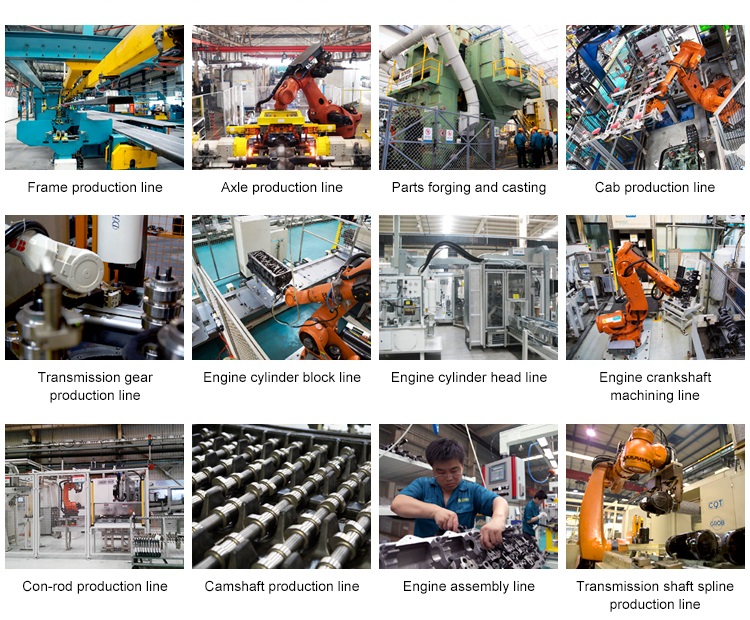

    Sinotruk Howo Production Line:

    The competitive advantage of Product Line:
    The vehicle production line has been equipped with highly precise and efficient automated assembling, debugging and on-line testing equipment. Sinotruk produces all major sub-assemblies itself, including cabs, engines, axles and transmissions, in order to achieve outstanding quality and to provide excellent after-sales service for its vehicles.
    Production Capacity:
    Transportation Heavy, Medium, Light Duty Truck 250,000 Units Per Year, Special Truck 10,000 Units Per Year


    Sinotruk Howo Company Exhibition



    Sinotruk Howo Customer Visit

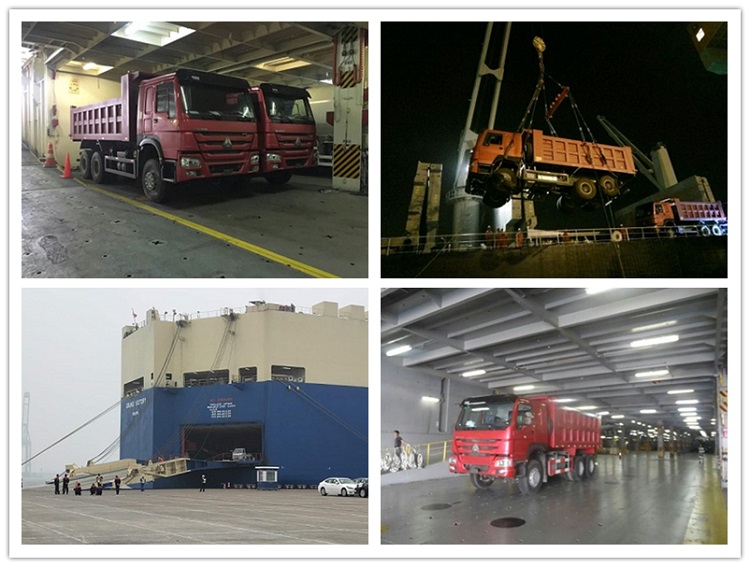

    Sinotruk Howo Shipping Service
