    HOWO 10000L Asphalt Construction Equipment Truck Mounted Driving Mode

    Ask Lasest Price
    Brand Name : SINOTRUCK HOWO
    Model Number : ZZ1167M4611W
    Certification : CCC/ISO/CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1,000 units per month
    Delivery Time : 35 working days after received payment
    • Product Details
    • Company Profile

    HOWO 10000L Asphalt Construction Equipment Truck Mounted Driving Mode

    Intelligent Asphalt Distributor, Asphalt Distributor truck,Bitumen truck,Asphalt spray truck


    1.Brief introduce:

    Our automatic asphalt distributor adopts the advanced foreign and domestic technologies. In addition, we join with Chang’an University, Zhejiang University and other renowned universities in researching and developing new automatic asphalt distributor.

    Application

    Automatic asphalt distributor is a kind of road machinery. It is applicable for layer-penetration oil, waterproof layer and bond coat at the bottom layer of high-level asphalt road.

    Configuration

    LMT series of automatic asphalt distributor is made up of Chassis ,asphalt tank, asphalt pump , spray system, heat conduction oil heating system, hydraulic system, electric control system, automatic control system and rising series. The main fitting adopts the most advanced components with computer system controlled spraying. Our automatic asphalt distributor’s accuracy meets Euro standards.

    Together with the advantages of asphalt distributors in the word, with automatic asphalt distributor, we innovated for new technologies.

    • Any asphalt used is displaced
    • Asphalt nozzle is multilayer filtrate and keeps the quality of spray
    • Asphalt spraying is controlled by computer system
    • Asphalt spray is suitable for asphalt pavement construction, which can improve performance achievements to international standards with zero tolerance.

    2.Parameters of Automatic Asphalt Distributor.


    PARAMETER FOR LMT5162GLQ ASPHALT DISTRIBUTOR
    (Intelligence Type)
    ModelLMT5162GLQEngine ModelWP10.380E32
    Chassis ModelSX1255NR434CDisplacement (L)9.726L
    Truck Typeflat head 6×2 rear driveMax. Power (kw)280
    Dimension (L×W×H) mm9875×2495×3720Max. Torque (N·m)1500N·m
    Cab Passenger3Cleaning Diesel Tank Capacity (L)75
    Vehicle kerb Mass (kg)11.38tFuel Tank Capacity (L)400
    Rated Load Mass (kg)25tHydraulic Oil Tank Capacity (L)120
    TransmissionRTD-11509CAsphalt Pump Model
    Wheelbase (mm)2036Asphalt Pump Displacement (ml/r)0.86L/r
    Tread (front/rear) mm1860/1860mmPower Take-off Modelincluded in chassis DFL1160BX
    Min. Ground Clearance (mm)250Burner ModelG20-474T1 ITALY RIELLO
    Suspension (front/rear) mm1430/2565Temperature Control CabinE5AZ JAPAN OMRAN
    Approach/Departure Angle (°)20°/14°Invert-erNFA8212-2000W
    Ramp Angle (°)/Hydraulic Pump Model

    Germany Rexroth

    A11V040

    Max. Speed (km/h)99Hydraulic Motor ModelLY-A2F63W2P2
    Working Speed(km/h)2.5~10.5Rated Pressure (Mpa)15
    Max. Grade ability (%)>23Heat Conducting Oil Pump Model /Heat Conducting Oil ModelGRY-40-25-160 /Great Wall 320#
    Tyre Model10.00-20×16PRGenerator ModelEC6500CX HONDA
    Tyre Pressure front/rear (kPa)630/630Control SystemMT-1C-8(Siemens) touch screen computer control + rear plate control
    Main Drive Ratio4.226Asphalt Tank Capacity (L)8000
    Max. Braking Distance (m)<10Nozzle39 Copper (one cylinder controls one nozzle)
    Min. Turning Circle Dia. (m)<23.8Spray bar Variable (m)0~6
    Oil Consumption (L/100km)<20Spray bar Value (kg/m2)0.3~3.0
    Parking Gradient (%)>20Emission StandardGB17691-2005(Ⅲ)
    GB3847-2005

    3.Strengths of Automatic Asphalt Distributor.

    • Automatic asphalt distributor boasts three layers.It can adjust the spray amount according to its operational speed.
    • The whole asphalt spraying process can be finished in the cab.
    • Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
    • The control procedure is quipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
    • The computer control system adopts modular design for lower accident rate and maintenance
    • The temperature of asphalt in tank is kept below or equal to two degrees per hour.
    • The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank.
    • The machine is also equipped with spray gun device to add asphalt at the opposite corner.
    • Asphalt pump, nozzle and asphalt tank can be heated with heat transfer oil completely or separately
    • The safe and reliable heat transfer oil heating system is controlled automatically.
    • Two kinds of speed testing devices are available: infrared impulsive sensor and America Dickey-John radar velocity.

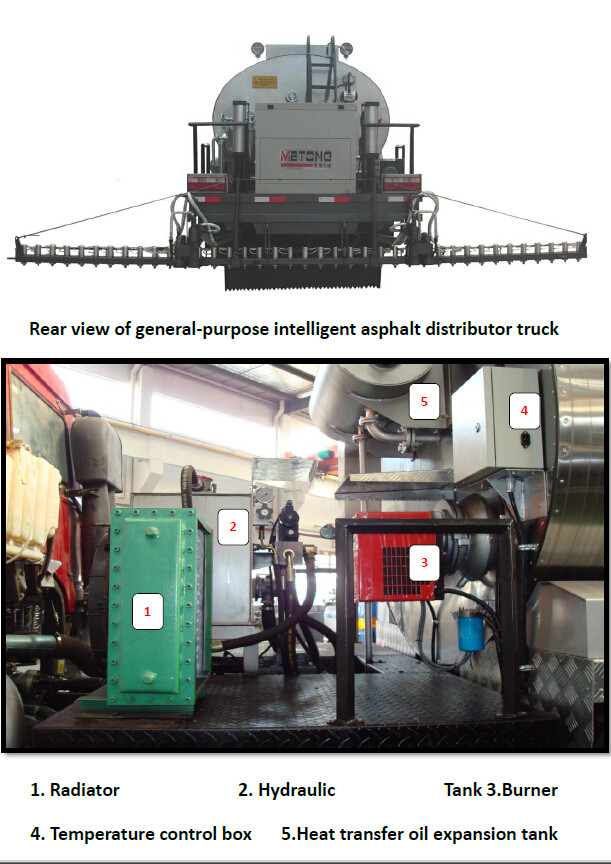

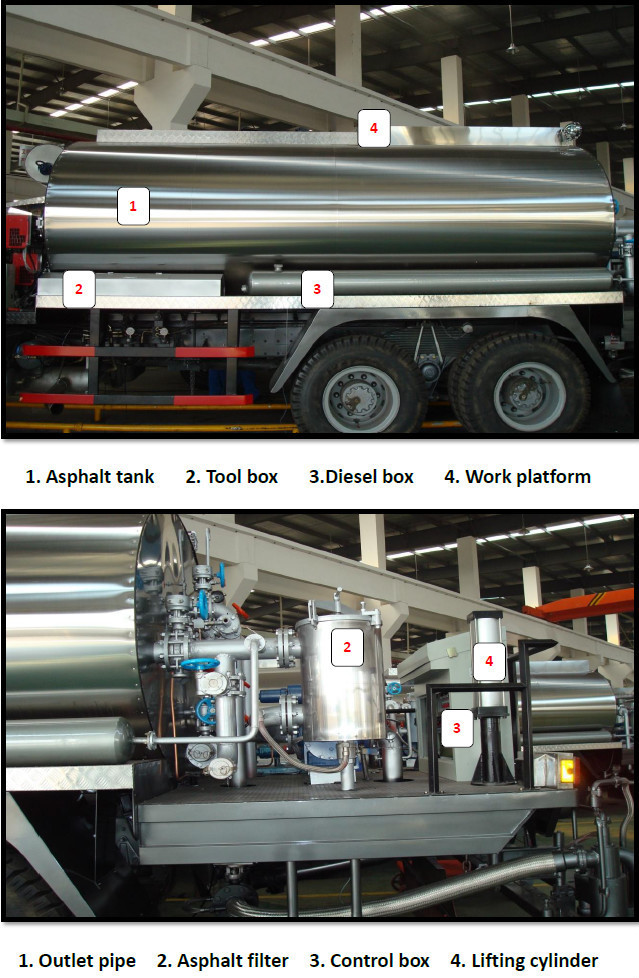

    More pictures:

    HOWO 10000L Asphalt Construction Equipment Truck Mounted Driving ModeHOWO 10000L Asphalt Construction Equipment Truck Mounted Driving ModeHOWO 10000L Asphalt Construction Equipment Truck Mounted Driving ModeHOWO 10000L Asphalt Construction Equipment Truck Mounted Driving Mode


    FAQ


    Q1. What is the advantage of your Asphalt Distributor?

    We have two categories of Asphalt Distributors: Ordinary and Intelligent. Please take a look at our catalog to know the 10 advantages of the Ordinary type. The advantages of the Intelligent type: 1. The main accessories (asphalt pump, burner, control system) are imported; 2. Adjustable spray amount based on the viscosity of the medium; 3. Two sets of control systems (cab and back operating platform) and newly launched GPS remote control and diagnose system. (We also launched a Standard type at lower price and high spray effect in 2005)


    Q2. What is the price of your Asphalt Distributor?

    We have three kinds of Asphalt Distributors: Ordinary, Standard and Intelligent. Prices range from 10,000 to 1 million based on the type, capacity and configuration.


    Q3. What is the difference between Intelligent Asphalt Distributor and Standard Asphalt Distributor?

    A. Intelligent: The whole operation can be carried out in the cab; Standard: Manual operation.

    B. Intelligent: Imported accessories (asphalt pump--Danish ROTAN, burner—Italian Riello, hydraulic pump –Germany Rexroth, temperature control system—Omron, computer control components—Siemens. The standard type also uses imported accessories.

    C. Intelligent: heat transfer oil heating system, each nozzle is controlled by separate computer. Standard: asphalt pump+ heat transfer oil, one computer controls three nozzles.


    Q4. What warranty coverage do I have?

    Our Asphalt Distributor has one-year warranty. We will provide free accessories for exported products.
