    Faw CLW5180JSQC 4*2 Euro 3 180hp Boom Truck Crane With SQ6.3SA3 13m Lifting Height

    Ask Lasest Price
    Brand Name : FAW
    Model Number : CLW5180JSQC
    Certification : CCC/ISO
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 units per week
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    Faw CLW5180JSQC 4*2 Euro 3 180hp Boom Truck Crane With SQ6.3SA3 13m Lifting Height

    Faw CLW5180JSQC 4x2 Euro 3 180hp Boom Truck Crane With SQ6.3SA3 13m Lifting Height


    Description:


    Boom Truck Crane Constantly optimize the boom section, completely releasing the carrying capacity of the plates, which makes the lifting more reliable and safer.Compact boom head .Extend the jib length, which can extend the working radius to the most.Hydraulic pipeline.The pipeline adopts high-precision cold drawing steel pipe, matching with the cutting ferrule, which is good looking and easy to maintain.Operating cab.

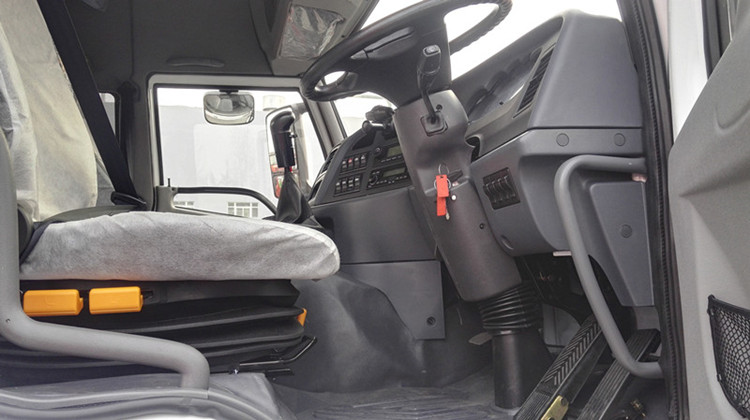

    Boom Truck Crane has large space and wide views. The control levers and instrument buttons are at hand.

    Torque limiter


    Packing:


    1.The main machine nude, attached parts and tools put into standard export box
    2.Within 20 days deliver the goods to main Port
    3. Ro-Ro ship or bulk ship or according to customer requiring
    4.We have professional forwarding partners


    Advantages


    1. Supplying quick-wearing parts at the truck delivery.

    2. Good quality parts produced by the truck manufacturing factory.

    3. Only charge cost price for customer convenience.

    4.Specialization ,standard and accurate meet your requirement.

    5. The price is competitive.

    6.Excellent and high-quality control


    Specification


    GVW18000kg Driving Type 4x2
    ModelCLW5180JSQC
    CabOne and half row cab, allowable 3 passengers
    Engine(Hp)180
    Power(Kw)136
    Wheelbase5000
    Front/Rear Suspension1400/2300
    SteeringPower steering
    Approach/departure angle18/10
    Wheels & tire10-20
    Tire number6+1
    Cargo Dimensions(mm)5500×2460×600
    Cubage (m3)
    RHD or LHDoptional
    Overall Dimensions(mm)9000×2550×3550
    Curb weight (Kg)9050
    EngineModelBF6M2012-18
    Horsepower180
    Maximum output Kw136
    Maximum torque N.m660
    Type6 cylinders, in-line, 4-stroke, turbo inter-cooling, electronically controlled, diesel engine
    Displacement6.06L
    FAW diesel engine, Euro 3, Euro 4 ,Euro 5 selective
    Driving passenger2,3
    Transmission8 speed forward and one reverse, manual
    Front Axle5.6T
    Rear Axle10T
    Brake Systemair brake ,exhaust brake
    Color and LOGOcustomized
    Electric system24V
    craneModelSQ6.3SA3Oil tank capacity100L
    Max lifting height13mMax lifting moment15.75T.m
    Max working radius11.1mRecommended power20KW
    Max loading6300kgWeight of crane2350kg
    TypeStraight armRecommended hydraulic flow40L/min
    Arms number4Installation space900mm
    Turning angle360Rated hydraulic pressure20MPa
    Standard configurationtruck crane equipped between the cabin and van body, mechanical leg
    Optional configurationAny other famous brand crane, such as XCMG, SANY, it can also be equipped in the rear of the truck, hydraulic legs, aerial working seat is optional.
    Delivery dateWithin 20 days after receipt advance
    PackingNude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
