12m3 Concrete Mixer Truck 371hp 8*4 Brand New Cement Mixer Truck
Product Description
1). Using hydraulic transmission device, do not rely on external
force, easy to use, continuous rotation of the tank during
transport, commercial concrete does not precipitate, not
segregation.
2). Easy to operate, a handle to achieve centralized control of
mixing tank, the configuration mature and reliable, easy
maintenance.
3). Low noise, no smoke, safe and reliable.
4). The use of high-intensity wear-resistant steel plate mixing
tank, durable.
5). Unique inlet setting, easy to spread material.
6). Small size, transport flexibility, easy operation and
maintenance, power consumption, energy-saving effect is remarkable.
7). Blade design is reasonable, the discharge residue rate is low.
Product Specification
| Chassis Model | ZZ1317N3261W ( Left Hand Driving Type) |
| Dimension (L×W×H)mm | 10207*2496*3785mm |
| Wheel base mm | 1800+3200+1350 |
| Cabin | HW76, one sleeper with air-conditioner. |
| Engine | WD615.47, Euro 2, 336HP |
| Transmission | HW19710, 10F & 2R |
| Steering | ZF8118, power steering with hydraulic system. |
| Front Axle | HF9, 1x9000 KGS |
| Rear Axle | HC16, 2x16000 KGS |
| Tyres | 1200R20, 10+1tyres |
| Frame | 8+5 mm double strengthen frame |
| Fuel Tank Volume | 300L |
| Mixer Pump | Eaton (USA Brand) |
| Motor | Eaton (USA Brand) |
| Speed Reducer | Bonfiglioli (Italy Brand) |
| Agitating Capacity | 12 Cubic Meters |
| Geometric Volume | 20.4m3 |
| Water Tank Volume | 400L |
| Drum rotating | 12.4° |
| Agitator rotaion speed | 0-18r/min |
| Feeding speed | >3m3/min |
Our Services
1. Reply your inquiry in 12 working hours;
2. Experienced staffs answer all your questions;
3. Customer’s design is available for certain products;
4. Different kinds of truck can be provided with competitive price.
FAQ
Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the
quality is 100% guaranteed.
Q:I want to be your agent in my country , is that ok?
A:It’s ok, If your quantity is big, we will consider.
Q: I want the front two tyres are bias tyre and the rear 9 tyres
are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's
need.
Our customer all over the world
African countries:
Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya,
Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania,
Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea,
Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire,
Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia,
Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.
South America:
Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador,
Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay,
Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica,
Panama, Antigua and Barbuda
South Pacific:
Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji,
Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook
Islands, Republic of the Marshall Islands, American Samoa,
Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn
Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu,
Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.
Asia countries:
North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar,
Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri
Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan,
Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus,
Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia,
Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan,
Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.

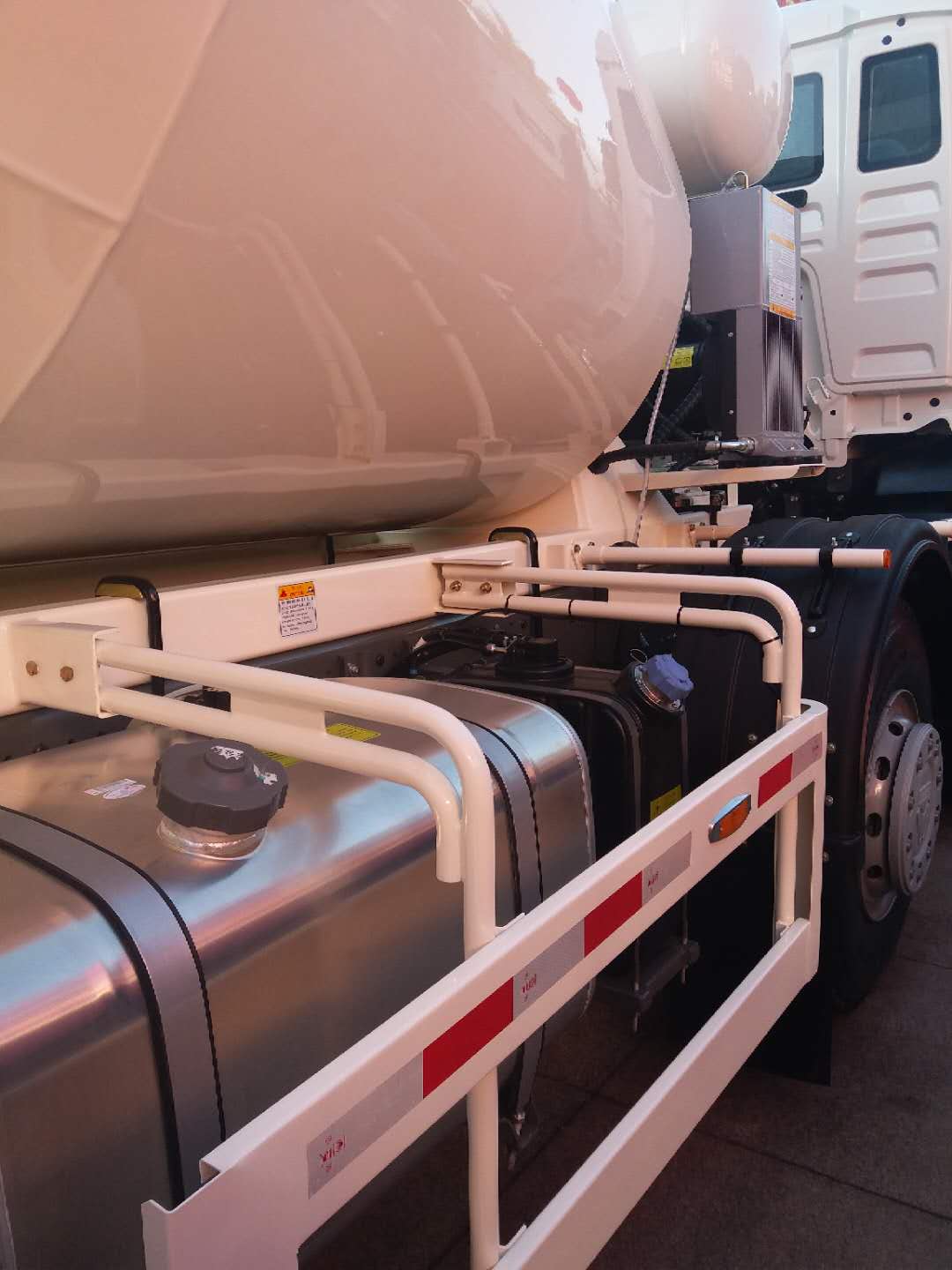

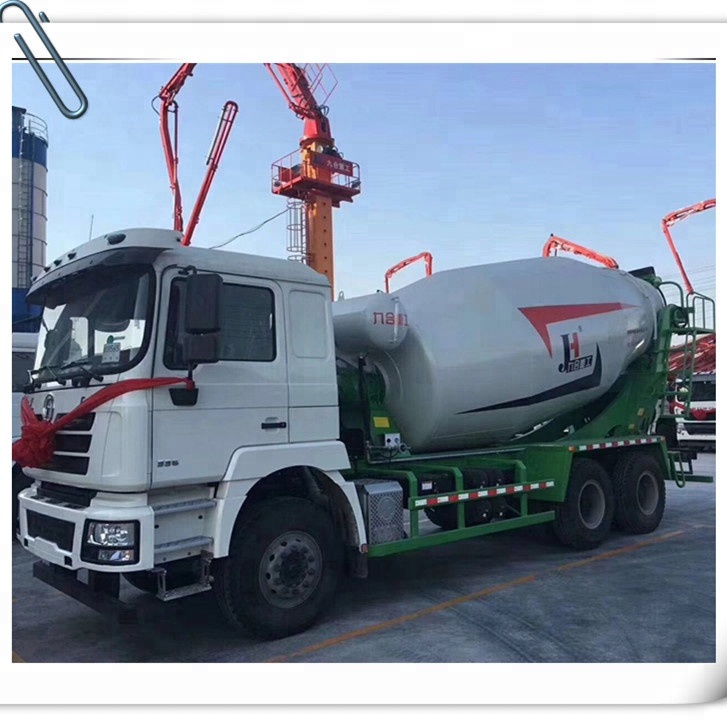

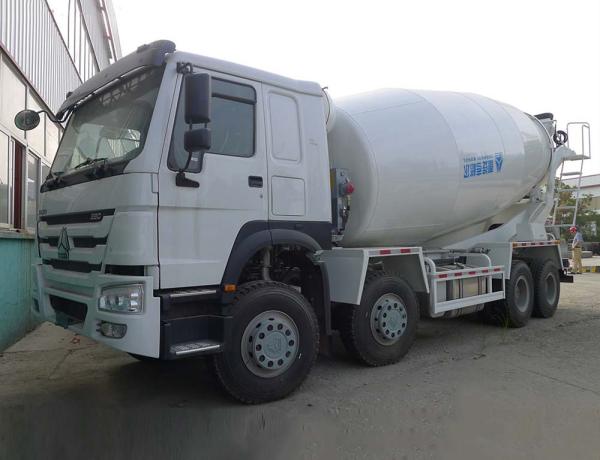

Product Pictures
