    4 Axles 8x4 Truck Mounted Crane , 12 Ton Hydraulic Truck Crane

    Ask Lasest Price
    Brand Name : FAW
    Model Number : XZJ5310JSQJ5
    Certification : ISO/CCC
    Price : Nagotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500/piece/month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    4 Axles 8x4 Truck Mounted Crane , 12 Ton Hydraulic Truck Crane

    FAW 8x4 Truck Mounted Crane, 12Ton Truck Crane / Truck With Crane ​


    Product Description


    Main specifications
    Product model,name
    Truck with crane
    Gross vehicle weight(kg)
    310000kg
    Drive type
    8x4
    Payload(kg
    11905,13480,13600,13620,12760,12880,12900,11970,13(Kg)
    cab seats (man)
    2, 3
    Curb weight(Kg)
    18900,17325,17205,17185,18045,17925,17905(Kg)
    Overall dimension (mm)
    12000×2500×3884,3950,3691,3702(mm)
    Approach/departure angle (°)
    19/12(°)
    Box internal dimension(mm)
    8150,8100,8050,8000×2300×600(mm)
    Number of axles
    4
    Front/rear hang(mm)
    1400/2750(mm)
    Axle load(Kg)
    6500/6500/18000
    Wheelbase(mm)
    2400+4100+1350
    Max speed(Km/h)
    86(km/h)
    Chassis specifications
    Chassis model
    FAW
    Tires No.
    12
    Tire specification
    11.00R20,10.00R20,11R22.5,295/80R22.5
    Steel spring number
    9/9/11,10/10/11,10/10/10
    Front track(mm)
    1950/1950
    Fuel type
    diesel
    Rear track(mm)
    1847/1847,1878/1878
    Emission standard
    Euro 3/4/5
    Transmission
    8/9/12gears
    Cab specification
    Flat cab, tiltable luxurious interior trim, seat, and sleeper. with power steering, air conditioning can be equiped if customer requires.
    Engine specification
    Engine model
    CA6DK
    Displacement(ml)
    7146ml
    Power(Kw)
    209kw
    Optional
    We can make the truck with crane according to customer's requests with the optional equipments below:

    All kinds of truck with crane equipment.

    Please advise us in advance if you have any special requests for the truck with crane, we can equip various kinds optional equipments for you.
    Functions
    The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate. Special used for cargo lifting and transportation of the larger wheel loaders or crawler loaders. The Cargo platform can extend to 3m.

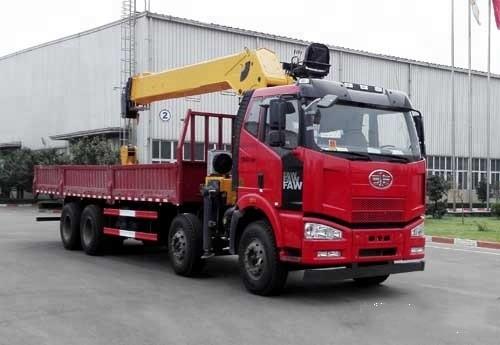

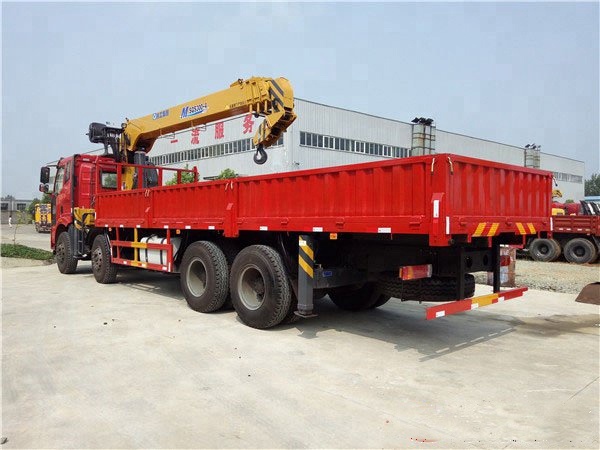

    Product Pictures


    Quality 4 Axles 8x4 Truck Mounted Crane , 12 Ton Hydraulic Truck Crane for sale
