    Multi - Function Pile Driving Machine 20m Depth For Soil Layer , Clay Layer

    Multi-function Pile Driving 20m Depth Rotary Drilling Machine


    Description


    YD-360 wheel rotary digging and drilling rig is suitable for soil layer, clay layer, filling layer, silt layer, silt layer, and some strata containing gravel and gravel; widely used in building construction, high-speed rail contact net support, slope protection pile , urban construction, civil construction, new rural construction, power grid reconstruction, landscaping and other projects.


    Feature


    The 360-degree rotating construction is flexible and flexible, the machine has small tonnage, simple operation, strong stability, super-pile speed, strong four-wheel drive system, fast movement, special convenience, small investment and fast profit; the frame and the whole vehicle are all 50. Manganese steel, thickened, aggravated, and the body rod is strengthened, and will not be deformed for a lifetime, so as to realize the characteristics of a large machine type drilled large pile hole.


    Parameter


    ax drilling diameter:1200 mm
    Max drilling depth:15-20 m
    Maximum output torque:22000 nm
    Drilling speed:35 rpm
    Main hoist rope diameter:18 mm
    Transport status device width:2300 mm
    Mast tilt angle:10 °
    Mast forward angle:10 °
    Mast back angle:15 °
    Configuration power:115 kw
    Track width:450 mm
    Working state device width:2300 mm
    Secondary hoist rope diameter:16 mm
    Engine model:6105 Turbocharged
    Total length of the chassis:3500 mm
    Model type:YD-360° wheel rotary drilling rig

    FAQ


    Q:How about your product quality?

    A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.


    Q:Do you have oversea service?

    A:When you have some problems which you can’t solve. we will arrange our engineers to your country to help you.


    Company information


    • Specialized in trucks industry for more than 20 years, we know what trucks are for, and what the customers really need. We recommend the specification suitable for the specified usage.
    • Our trucks and trailers are exported to more than 100 countries and areas, such as Africa, South East Asia, North Asia, Middle East, South America.
    • One-stop service for all the trucks and trailers from China, where the customers can have all the products they need to save time, energy and cost.
    • Trucks:Tractor Truck, Dump Truck, Concrete Mixer Truck, CNG Truck, Cargo Truck, Tank Truck, Garbage Truck, All-Wheel Drive Truck, Special Vehicles, Bus.Trailers: Flat bed, Low bed, VAN, Warehouse, Tanker, Car carrier, Logging, Tipper, etc.

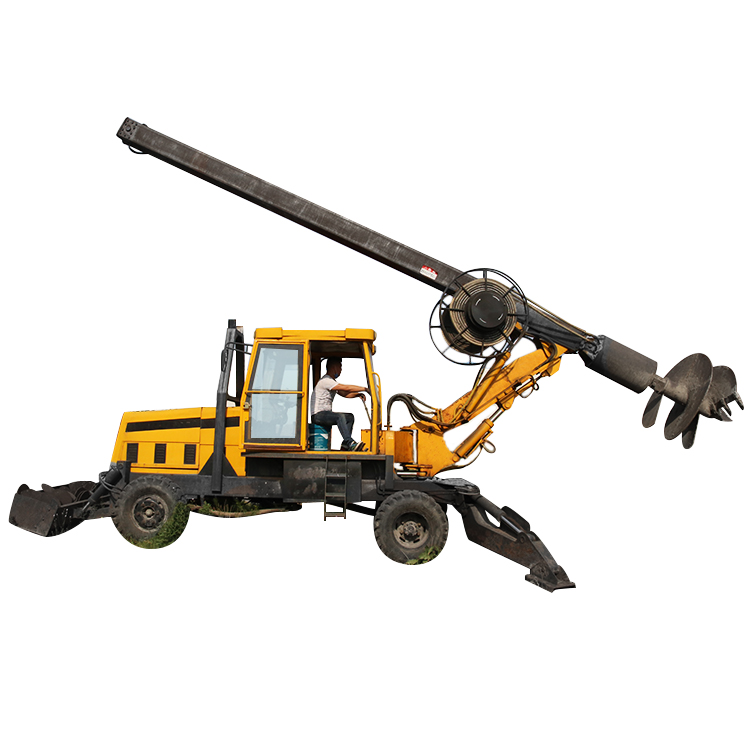

    Product picture
