    10 Wheels King Mining Dump Truck 371HP Euro 2 61 - 70t Load Capacity

    Ask Lasest Price
    Brand Name : HOWO
    Model Number : ZZ5707S3841AJ
    Certification : ISO/CCC
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500 pieces per month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    10 Wheels King Mining Dump Truck 371HP Euro 2 61 - 70t Load Capacity

    SINOTRUK HOWO 10 Wheels Mining King Dump Truck 371HP Euro 2 Optional Color


    Product Description


    HOWO 70 Mining Dump Truck is heavy concentrated engineering design personnel and development, first and foremost applies to all kinds of open pit coal mine, steel mills, hydropower construction, dock, poor road conditions, homework is in bad situations in areas within a short distance transport business development of this car, in terms of the particular user groups, with high economic benefit and social benefit.
    SINOTRUK HOWO Mining King Dump Truck
    Chassis ModelZZ5707S3841AJ
    Driving TypeLeft Hand Driving/Right Hand Driving
    Production YearBrand New truck.
    CabinHW7D cab, without sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.
    Engine

    Make: SINOTRUK

    Diesel 4-stroke direct injection diesel engine

    Engine Model: WD615.47, Euro 2, 371 HP

    6-cylinder in-line with water cooling, turbo-charging and inter-cooling

    Displacement: 9.726 L

    TransmissionHW21710, 10F & 2R, with PTO
    SteeringZF power steering, model ZF8098, hydraulic steering with power assitance
    Front Axle

    HF12, 1x12000 KGS

    Steering with doubleT-cross section beam

    Rear Axle

    AC26, 2x26000 KGS

    Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

    Ratio: 10.47

    Chassis

    Front suspension: 1500mm, Half the elliptical leaf spring with shock absorber cavitation

    Rear suspension: 1000mm, The overall balance shaft balance suspension, unilateral inclined outfit 4 riding bolt

    Brake

    Service brake: Dual circuit compressed air brake

    Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

    Auxiliary brake: engine exhaust brake

    Electrics

    Operating voltage: 24 V, negative grounded

    Starter: 7.5Kw/24V

    Alternator: 28V-1500kw

    Batteries: 2X12V/165Ah

    Tires14.00-25, bias tire with one spare tire
    Fuel Tank500 L
    Cargo Body5800*3100*1700 mm, 30.56 CBM, Floor 12 mm and side 10 mm, HYVA front side lifting
    Overall Dimension9045*3200*3770 mm

    Competitive Advantage


    1) all kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity
    2) using the high strength steel, make it has a long service life
    3) The front lifting type domestic advanced hydraulic control system helps to avoid wrong operation, it has higher
    safety and running efficiency.
    4) excellant apperance of cabin, safety, reliable
    5) low fuel consumption
    6) strong enough engine
    7) with all kinds of truck model, which can fulfil your requirements
    8) the key parts adopt the world's top technology products
    9) based on strong technical support and top level technology make the trucks with high
    quality and more reliable
    10) competive price, cost-effective
    11) quick and efficient spare parts supply bring you more convenient
    12) fast delivery time, we can arange production according to your needs exactly and
    quickly

    13) professional import and export dealing precedure, make customs clearance more high efficiency

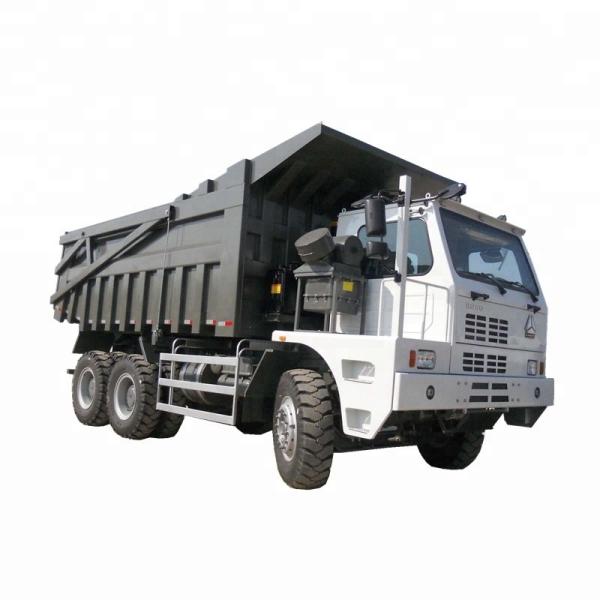

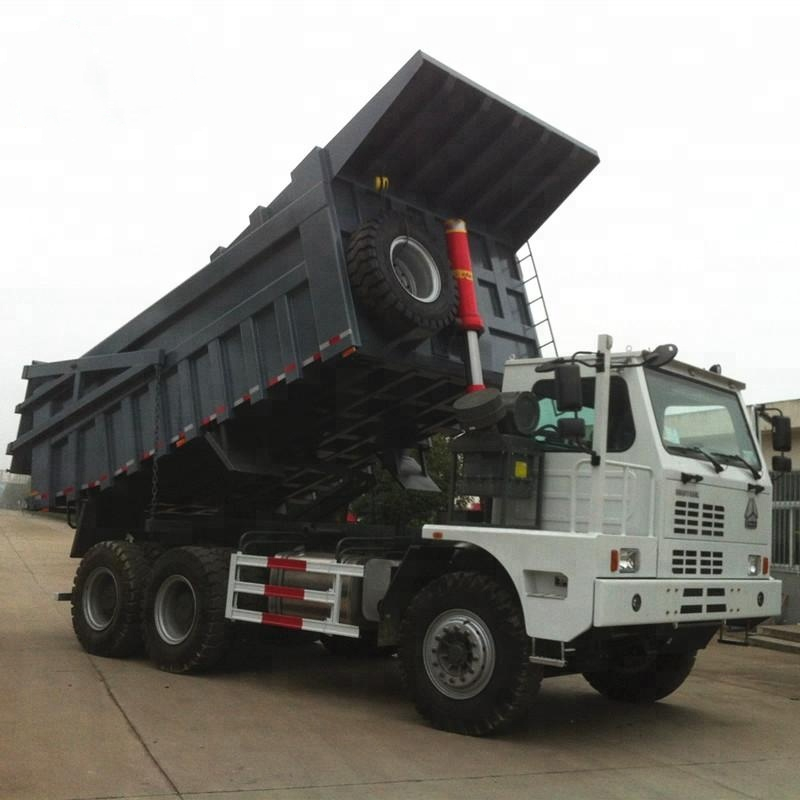

    Product picture

    Quality 10 Wheels King Mining Dump Truck 371HP Euro 2 61 - 70t Load Capacity for sale
