HJK5251ZYS5JF FAW 6X4 Euro3-Euro5 Capacity 20 CBM Garbage Compactor Truck

Product Description

The HJK5250ZYS5JF compression garbage collection truck is a new generation of large-scale rear-loadingcompression garbage collection truck independently developed and designed by EGUARD through absorbing advantages of various similar products at home and abroad. The vehicle uses rear-loading compression and dual compression technology to complete the collection and transfer of urban household garbage. It has strong load bearing capacity and large loading capacity, and its comprehensive performance has reached the advanced level of domestic similar products. It is mainly suitable for garbage collection and transportation from spacial garbage collection sites, to which the roads are relatively spacious, from which the garbage disposal sites are far away (more than 30 kilometers), and where the garbage distribution is relatively concentrated. It can directly collect and transport the garbage without the need of compression at transfer station, so the operational efficiency is very high. The vehicle, having a number of patented technologies, and a variety of bin(bucket) lifters, is suitable for various garbage collection ways for different users.

HJK5251ZYS5JF compression garbage collection truck
Chassis	FAW Motor
Overall dimensions (L*W*H)	10440×2550×3550(mm)
GVW	25000kg
Kerb weight	15300kg
Pay load	9570kg
Wheel base	4350+1350mm
Engine power	195Kw
Emission standard	National V =Euro V
The highest speed	90km/h
Approaching/departure angle	19º/12º
Volume of garbage container	20.5m³
Volume of tail gate	2.4m³
Loading cycle time	22s
Unloading cycle time	45s
Rated pressure of hydraulic system	20Mpa

Main Features:

1. The vehicle body is made of high-quality and high-strength weather-resistant and wear-resistant steel plate, with light weight, long service life and high utilization factor of load mass. The fully sealed streamlined design eliminates secondary pollution during vehicle transportation.

2. The guide rails are equipped with moving accessories composed of nylon sliding blocks with excellent wear resistance and self-lubricating performance. The main moving parts are made of special materials without lubrication and rust, so the garbage compressing process is stable and reliable, the service life is long and the maintenance time and cost are reduced.

3. The engine power output is automatically controled, which has such advantages as low working speed (≤1100r/min), low noise, low fuel consumption, energy saving and emission reduction, and good economy.

4. Automatic protection and dual compression technology are applied to guarantee high work safety and strong load-bearing capacity. The compression ratio is up to 4:1, and the density of garbage after compression can reach 800kg/m3.

5. The vehicle has the function of garbage dumping and loading at the same time, with short loading time. It adopts integrated design of machine, electricity and liquid, and one-key operation, which results in high automation degree, highworking efficiency andlowcost of use .

6. The high-quality electrical control system and high-matching hydraulic system have the advantages of low failure rate, high reliability and low power loss.

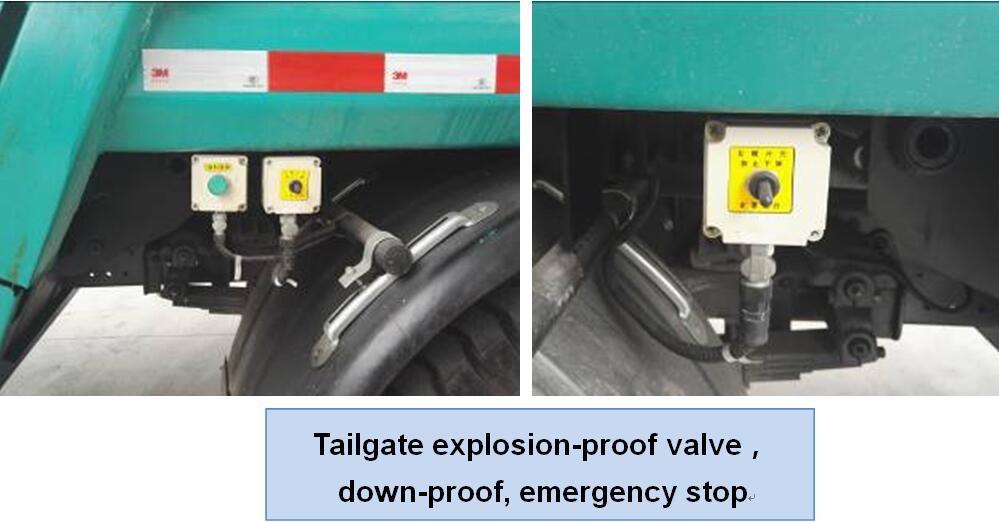

7. The tailgate explosion-proof valve, anti-fall control, emergency stop control and auxiliary safety support design make the vehicle have high safety. The tailgate assisted fall design allows the tailgate to fall in the event of a fault without affecting vehicle travel.

Detailed Images:

FAQ:

Q1: Are you manufacturer or trading company?
A:We are direct manufacturer with experience over 10 years.

Q2: What is the delivery time?
A: Normally 30 days under the quantity of 50 units.

Q3: What is your term of payment?
A: For new customers, we prefer pay by T/T, 30% as deposit, and 70% before shipment. L/C is also acceptable.

Q4: Is customized appearance acceptable?
A:Yes, we could change coating according to your requirements.

Q5: What is your after service policy?
A:1) Free training for using our equipments.
2) We have one year warranty period, and our engineers will change spare parts and provide services for free during this period.
3) If the order quantity is large, our company can set up an after service center in your country and our engineers could provide more convenient services.
