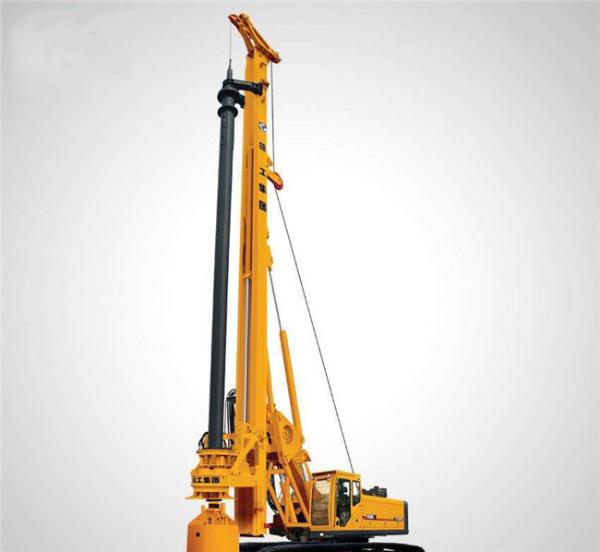

    Professional XCMG XR360 Rotary Drilling Tools / Conventional Drilling Rig

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : XR360
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 set/month
    Delivery Time : 10-30days
    • Product Details
    • Company Profile

    Professional XCMG XR360 Rotary Drilling Tools / Conventional Drilling Rig

    Professional XCMG XR360 rotary drilling rig tool conventional drilling rigs official manufacturer


    Product Quick Details:

    Condition:New

    Type:Rotary Drilling Rig

    Power Type:Diesel

    Place of Origin:Jiangsu, China (Mainland)

    Brand Name:XCMG

    Model Number:XR360

    Usage:Coal

    Voltage:220V/380V

    Power(W):298kw

    Dimension(L*W*H):11000X4800X24586mm

    Weight:90t

    Certification:ISO

    Product Name:XCMG XR360 rotary drilling rig tool conventional drilling rigs

    drilling diameter:2500mm

    drilling depth:102m

    Max.troque:360kN.m

    Model:CUMMINS QSM11-C400

    Rotary speed:6-25r/min

    Max.pull-down piston push:240KN

    2017:rotary drilling rig tool

    Hot style:conventional drilling rigs

    XCMG:conventional drilling rigs for sale

    Warranty:1 Year

    After-sales Service Provided:Overseas service center available


    Product Features:

    I Host machine: 2500mm of drilling diameter, 102m of drilling depth, 360kN.m of Max.troque. Imported Cummins (298kW) turbo charging electric spray engine, imported hydraulic and electrical components, telescopic tracks chassis, and single layer main winch.

    II Drill rod: choose one drill rod from standard configuration (φ508) 5-section frictional drill rod (77m) or 4-section mechanical interlock drilling rod (62m). Special designed 6-section frictional drill (102m) rod is accepted.

    III Bit: one standard configuration bucket teeth sand drill rigs (choose one from diameter φ800mm~φ2500mm).

    It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability.

    The imported Cummins turbo-supercharged engine is powerful, and has sufficient power reserve.

    The machine adapt single row rope for main winch to figure out the wear of steel rope. extend the life-span. And high reliability.

    The machine adapt single row rope for main winch to figure out the wear of steel rope. extend the life-span. And high reliability.

    The oil cylinder and sleeve-driven functions are available for selection to satisfy various needs of the users.

    Normal mode and entering-rock mode of unit head are available for operation in soil and rock to improve the construction efficiency.

    It is equipped with a centralized lubrication system as standard configuration; maintenance is easy.


    I Host machine: 2500mm of drilling diameter, 102m of drilling depth, 360kN.m of Max.troque. Imported Cummins (298kW) turbo charging electric spray engine, imported hydraulic and electrical components, telescopic tracks chassis, and single layer main winch.

    II Drill rod: choose one drill rod from standard configuration (φ508) 5-section frictional drill rod (77m) or 4-section mechanical interlock drilling rod (62m). Special designed 6-section frictional drill (102m) rod is accepted.

    III Bit: one standard configuration bucket teeth sand drill rigs (choose one from diameter φ800mm~φ2500mm).


    It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability.

    The imported Cummins turbo-supercharged engine is powerful, and has sufficient power reserve.

    The machine adapt single row rope for main winch to figure out the wear of steel rope. extend the life-span. And high reliability.

    The machine adapt single row rope for main winch to figure out the wear of steel rope. extend the life-span. And high reliability.

    The oil cylinder and sleeve-driven functions are available for selection to satisfy various needs of the users.

    Normal mode and entering-rock mode of unit head are available for operation in soil and rock to improve the construction efficiency.

    It is equipped with a centralized lubrication system as standard configuration; maintenance is easy.


    Product Specification:
    DescriptionUnitParameter value
    Max. drilling diametermm2500
    Max. drilling depthm102
    Allowable luffing scope (from center of drill rod to slewing center)mm4410~4950
    Drilling rig dimension in working condition (L × W × H)mm11000×4800×24586
    Drilling rig dimension in transport condition (L × W × H)mm17380×3500×3810
    Weight of overall unit (standard configuration, excluding drilling tool)t92
    EngineModelCUMMINS QSM11-C400
    Rated power/speedkW298/(2100r/min)
    Max. working pressure of hydraulic systemMPa35
    Rotary driveMax. torquekN •m360
    Rotational speedr/min5~20
    Crowd cylinderMax. Pushing forcekN240
    Max. Pulling forcekN320
    Max.strokemm6000
    Main winchMax.pulling forcekN320
    Max. single-rope speedm/min72
    Diameter of the steel wire ropemm36
    Auxiliary winchMax.pulling forcekN100
    Max. single-rope speedm/min65
    Diameter of the steel wire ropemm20
    Drilling mastLeft/right inclination of mast°4/4
    Front/back inclination of mast°5/15
    Rotary table slewing angle°360
    TravelingMax. traveling speed of the overall unitkm/h1.5
    Max. climbable gradient of the overall unit%35
    CrawlerWidth of crawler platemm800
    External width of crawler (min.-max.)mm3500~4800
    Center distance between two longitudinal wheels of crawlermm5175
    Average ground pressurekPa103.1
