    Hydrualic Auger Crane Pile Drive Tractor Mounted Hammer Piling Machine 100HP

    Ask Lasest Price
    Brand Name : BAISHUN
    Model Number : BS-1004
    Certification : ISO/CCC
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500 pieces per month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    Hydrualic Auger Crane Pile Drive Tractor Mounted Hammer Piling Machine 100HP

    New Hydrualic Auger Crane Pile Drive Tractor Mounted Hammer Piling Machine 100HP​


    Product Description


    Tractor mounted hammer piling machine can realize digging hole and planting pole. Its features are as below: has four hydraulic legs on the machine, off-road four-wheel drive, wide tire, working platform connect the body through 360 degree rotary gear, the end of the platform connect with the big arm shaft of the crane. One side of the hydraulic cylinder fixed on working platform and the other side connect with the crane boom, Both two sides of the crane boom installed with chute. There is mining shovel on the mining rod, one side connect with rotary drilling bit motor, the two sides of the rotary drilling bit bottom part insert into the chute of the crane boom. The front end of the crane boom is crane arm, the front end of the crane arm has hook. One side of the machine body has level console, the console connect test equipment hook-up hydraulic legs through hydraulic pipe. One side of the level console is control room, the control switch in the control room control the rotary drilling bit motor, hydraulic oil pump motor through power signal line. The operation arm control the hydraulic cylinder, 360 degree rotary gear motor, the digging part hydraulic winch motor, strength hydraulic hoist motor, overhang hydraulic winch motor through control valve. Combine its digging hole equipment with the traditional crane structure, can really one machine digging hole and planting pole, save the construction time and cost.


    Product Parameters


    ModelBS-850BS-1004BS-1004H
    Driver type4*24*44*4
    Power85HP100HP110HP
    Steering systemHydraulic systemHydraulic systemHydraulic system
    Bit materialAlloy steelAlloy steelAlloy steel
    Drill pipe reamer materialManganese steelManganese steelManganese steel
    Hole diameter(mm)100-2000100-2000100-2000
    Hole depth(mm)1000-60001000-60001000-6000

    Overall size

    (L*W*H) mm

    5520*2100*28846520*2170*28947520*2170*2994
    Weight (T)6.56.87.1
    Hoisting machine3T,5T,8T5T,8T,10T8T,10T,12T
    Dig a pit speed (/sec)25-6025-6020-60
    Practical geologySand and soil including cobble stone ,weathered rock and soil layer ,tundra and backfill garbage

    FAQ


    1.What is the features of this machine?

    Practical and efficient in pole erection working

    Easy to operate and can be done by two labors only against the current manual practice of 12 to 14 labors, save manpower and with high efficiency.

    Takes a little time to make a pit against the time taken by manual labor is 5 to 6 hours.


    2. What is the application of this machine?

    Hydraulic digging machine mainly using for pole hole digging and pole vertical,also can using for vertical Street lamp tree billboard wire rack, highway and railway construction, etc.


    3. What is the max depth and diameter of this machine?

    300-1200mm diameter and 1-6m depth is available.

    Note that the final depth and diameter will subject to your special local working strata and drilling experience.

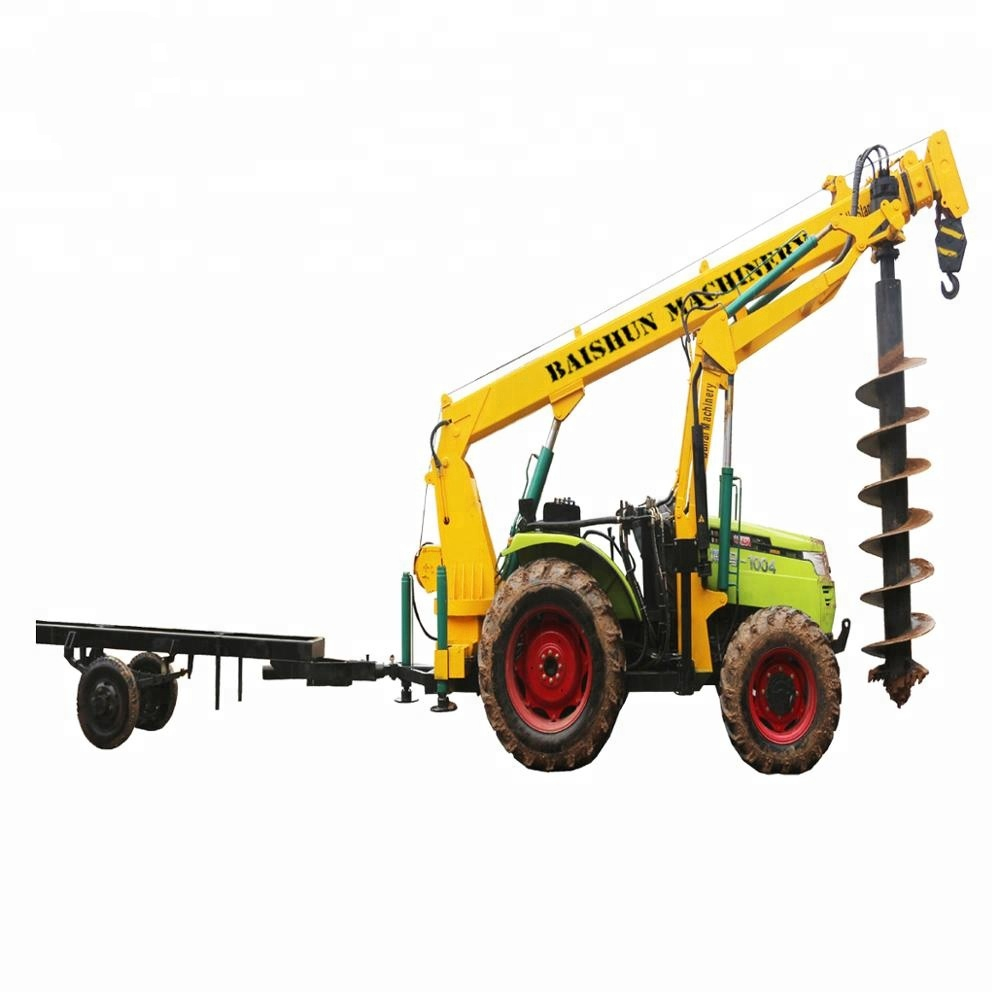

    Product Picture
