    XS142J XS143J 14 Ton Road Building Machines / Single Drum Road Roller Compactor 14t Vibratory

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : XS142J
    Certification : ISO CE
    Price : NEGOTIABLE
    Payment Terms : T/T, L/C
    Supply Ability : 1000 Unit/Units per Year SDLG RS8140 Road Machinery new road roller machine price
    Delivery Time : 30DAYS
    • Product Details
    • Company Profile

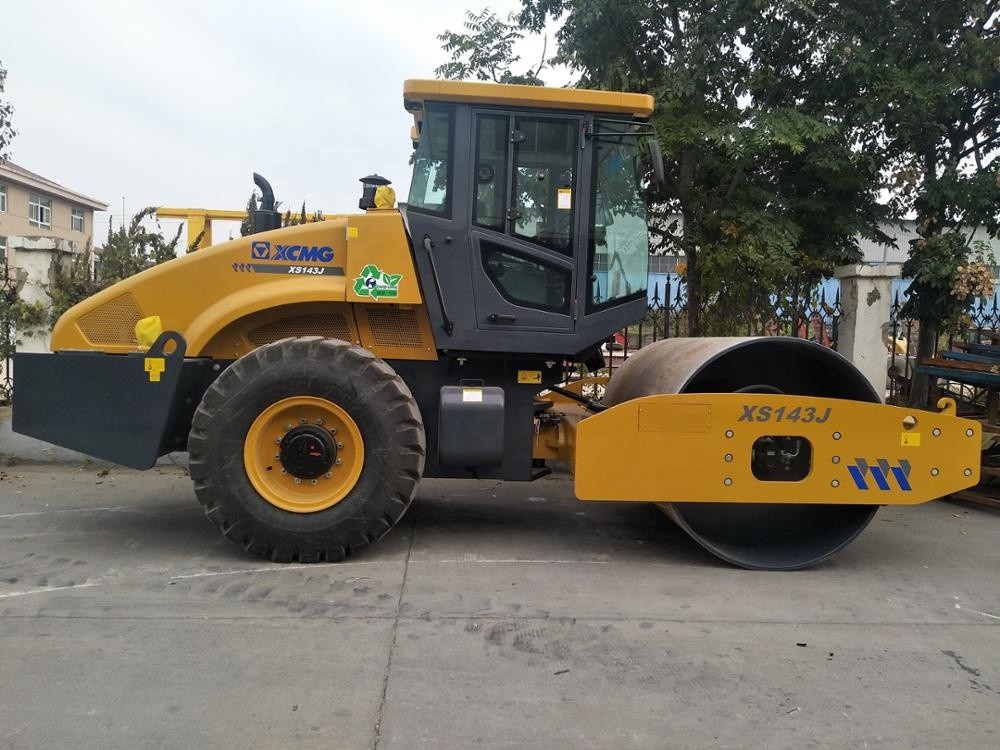

    XS142J XS143J 14 Ton Road Building Machines / Single Drum Road Roller Compactor 14t Vibratory

    Roller Compactor 14tons Road Roller for sale XS142J XS143J Single drum road roller 14t vibratory


    Products Specifications

    Warranty:1 Year

    Condition:New

    Type:Single Drum Roller

    Grade Ability:30%

    Place of Origin:Jiangsu, China (Mainland)

    Brand Name:CANMAX

    Dimension(L*W*H):6010*2300*3200 mm

    Weight:14000kg

    Certification:ISO CE

    Product name:Single Drum Roller

    Drive Type:Mechanical Drive

    Exciting force:274/137 kN

    Wheel Base:3040mm

    Drum width:2130mm

    Min.turning radius:6800mm

    Vibratory diameter:1523mm


    FEARTURES

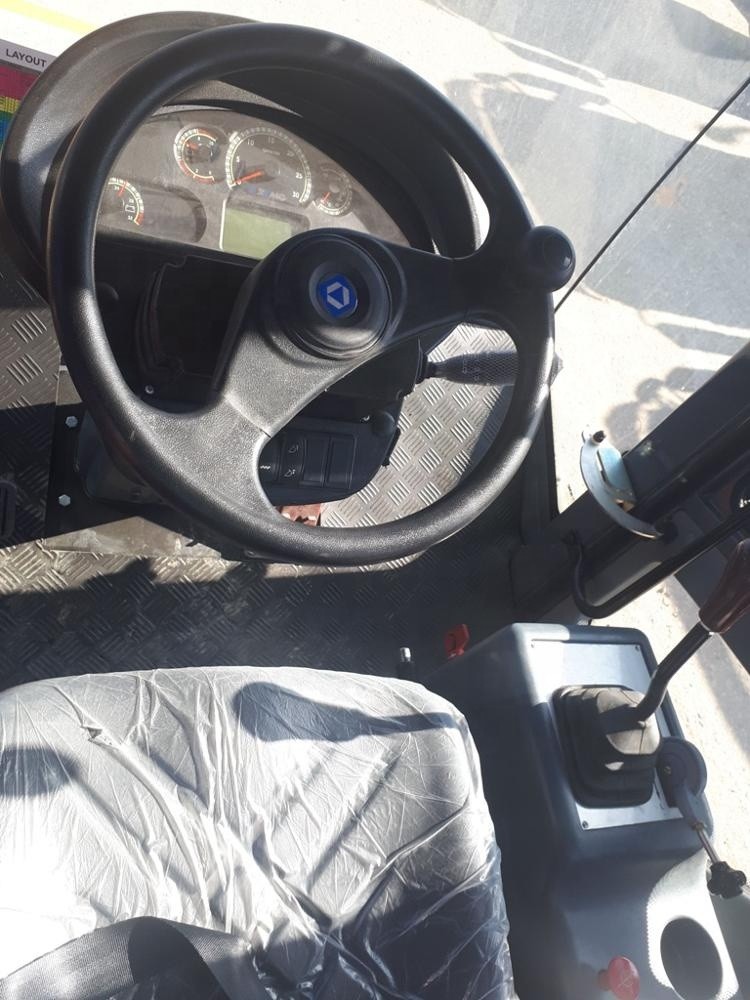

    The spacious and bright cab features wide view and comfort.

    •The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.

    •Adopt the gearbox with synchronizer, which is easy to operate.

    •The special compactor drive axle has the function of preventing slipping, featuring strong traction.

    •Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.

    •Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.

    •The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate.

    •Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.


    •The integral convex block drum, split convex block drum, and the cab with air conditioning.

    Convenient maintenance

    •The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible.

    •The high positioned air intake prolongs the maintenance interval of the air filter.


    PARAMETER


    ModelUnitXS142J
    Operating weightkg14000
    Weight on front drumkg7000
    Static linear pressureN/cm322
    Speed rangekm/h
    Speed I2.7
    Speed II4.8
    Speed III10.5
    Theoretical gradeability%30
    Min. external turning radiusmm6800
    Steering angle°±30
    Oscillating angle°±11
    Vibration frequencyHz28
    Nominal amplitude (high/low)mm1.9/0.95
    Excitation force (high/low amplitude)kN274/137
    Engine modelSC5D125G2B1
    TypeWater cooled, pressurizedWater cooled, pressurized
    Max. powerkW92@2200r/min
    Engine oil consumptiong/kW.h230
    Hydraulic oil tank capacityL170
    Fuel tank capacityL180
