    HYUAN Mining Semi Dump Truck Trailer And U Type Rear Tipping 12R22.5 Tire

    Ask Lasest Price
    Brand Name : HYUAN
    Model Number : HY6258617DU
    Certification : ISO CCC SGS
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500 pieces per month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    HYUAN Mining Semi Dump Truck Trailer And U Type Rear Tipping 12R22.5 Tire

    HYUAN Mining Semi Dump Truck Trailer And U Type Rear Tipping Trailer


    Product Description


    The Characteristics of The Tipper Trailer
    1. Main-frame: Longitudinal beam, using high strength structural steel and offering bending and shock resistance, can met heavy load requirments.

    2. Sub-frame: Using high strength 16Mn structural steel and intergrated hydraulic system increase operation accuracy. Widened turning point of tipper body increase the overall stability, reliability and safety of the operation.

    3. Tipping mechanism: Mallery type rear dumping, front tipping rear dumping, side dumping mechanisms available for customer order.

    4. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.

    5. Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.


    Self-discharging semi-trailer is suitable for the transportation of loose bulk goods such as coal, ore and building materials.


    The self-unloading semi-trailer, also known as the dump truck and engineering vehicle, consists of an automobile chassis, a hydraulic lifting mechanism, a suction device and a cargo compartment.


    Widely used in construction engineering, municipal engineering, road construction, sanitation, mining, limestone kiln, stone plant, cement plant, cement plant, starch plant, brick plant, fire resistant plant, coking plant, phosphate fertilizer plant, chemical fertilizer plant, concentrator plant, construction team, railway station, coal yard, bee coal yard, wharf, etc.Can save manpower greatly, reduce labor intensity.


    Product Parameter


    Type
    Dump tipper trailer
    Function
    Transport sand,stone
    Tare Weight
    7.85T-11T
    Axle
    3/4/5 axles, FUWA/BPW/YAHUA/HYUAN brand axle
    Main beam
    Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel. 16mm-25mm channel steel (Material is Q235 carbon steel)
    Wheelbase(mm)
    6700+1310+1310 or other
    Suspension system
    Mechanical or air suspension (American or German)
    Lifting Type
    Front side lifting
    Platform plate
    Steel Sheet 3mm thickness
    Rim
    6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20/9.0-20
    Tire Type
    11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20
    Traction Pin
    JOST 2" or 3.5" traction pin
    Landing gear
    JOST 28T
    Spare Wheel Bracket
    1 sets(Patent type)
    Tool Box
    1 sets(waterproof type)
    Brake air chamber
    Six double chamber
    Light
    Tail lamp with turn signal, brake light & reflector,side lamp etc.
    Packing
    Polish with wax before shipping

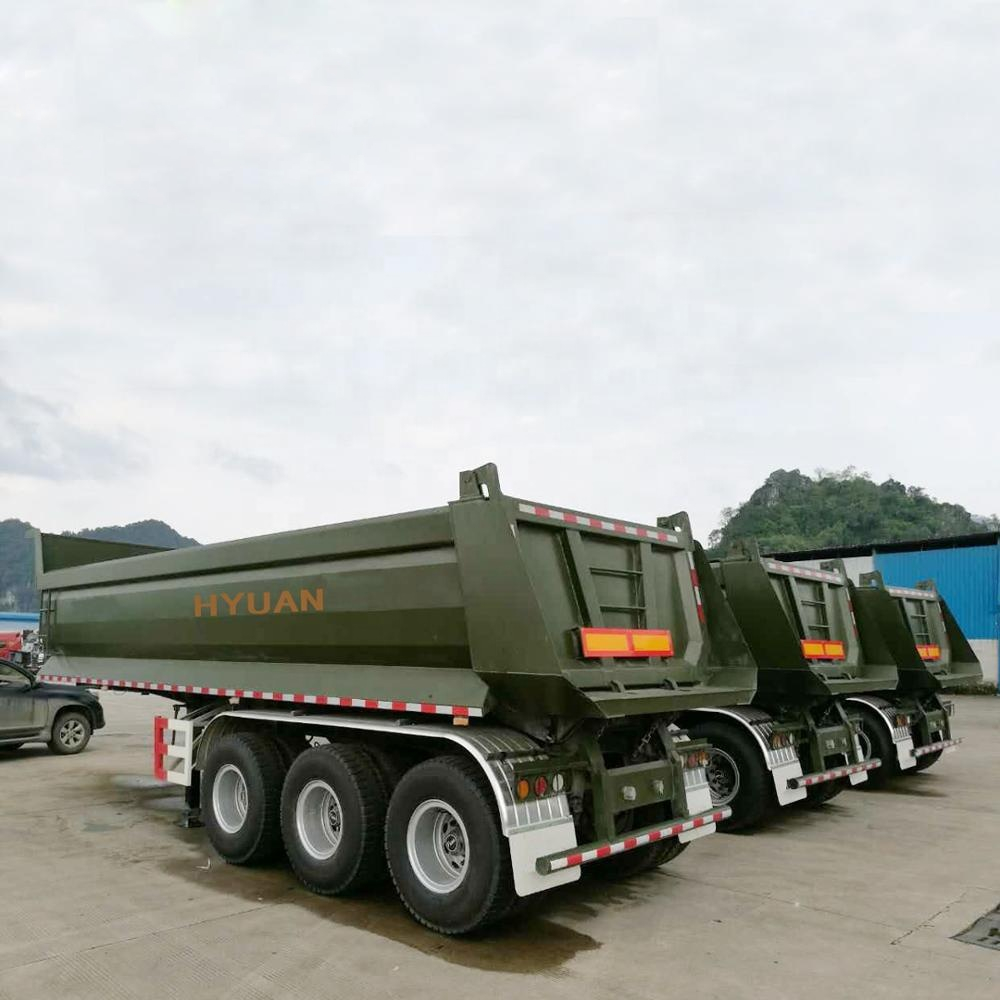

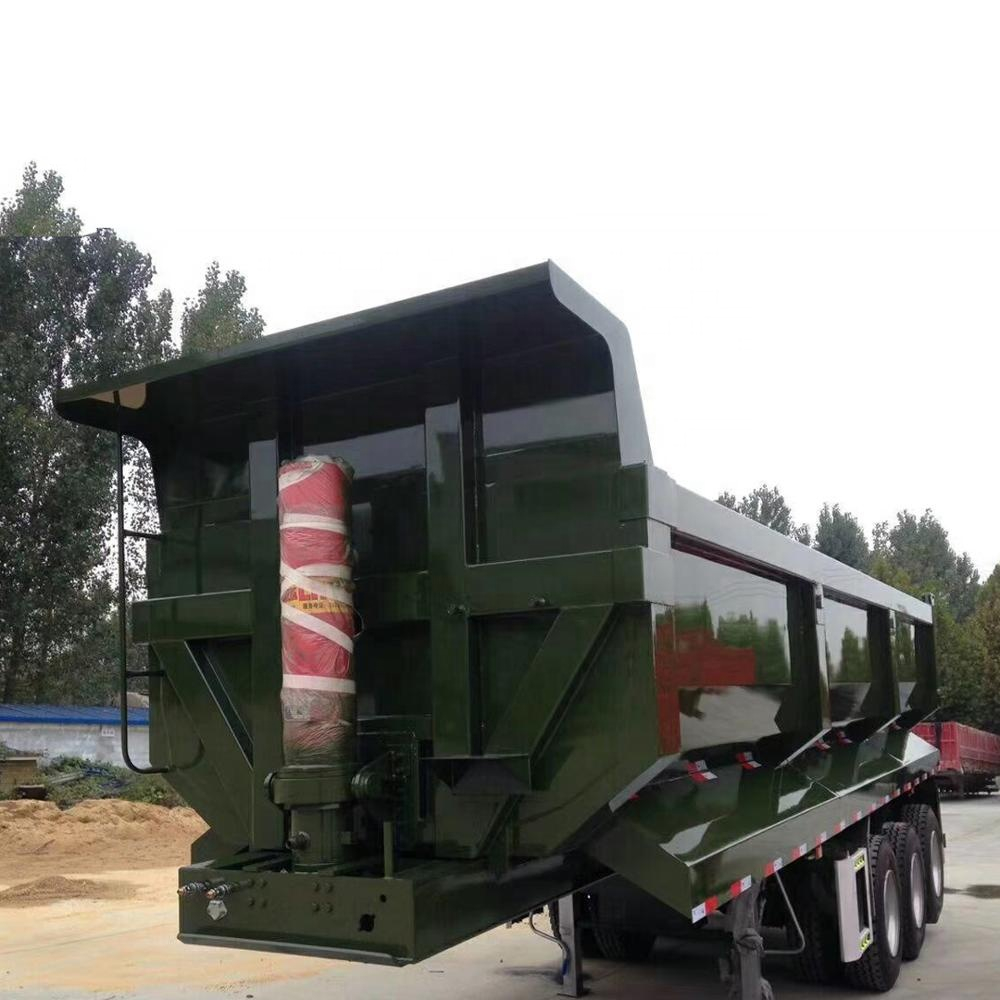

    Product Picture


    Quality HYUAN Mining Semi Dump Truck Trailer And U Type Rear Tipping 12R22.5 Tire for sale
