    White BZT300 Pile Drilling Machine / Tralier Mounted Drilling Rig 300m Depth Commins Diesel 97KW

    Ask Lasest Price
    Brand Name : BZ
    Model Number : BZT300
    Certification : CCC/ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 200 pieces per month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    White BZT300 Pile Drilling Machine / Tralier Mounted Drilling Rig 300m Depth Commins Diesel 97KW

    White BZT300 Tralier Mounted Drilling Rig 300m Depth Commins Brand Diesel​


    Product parameter


    Technical parameter
    Drilling depth(M)300
    Drilling diameter(mm)500
    Speed of turntable(r/min)8.50;75;114,137 (reverse)
    Torque of turntable(KN.m)30.9,13.2;8.8;5.8,1.8 (reverse)
    Single rope lifting capacity of main windlass(KN)40
    The capacity of main windlass(KN)240
    Single rope lifting capacity of assist windlass(KN)30
    The capacity of assist windlass(KN)120
    The lifting capacity of hook(KN)240
    Bearing capacity of mast (KN)240
    The height of mast (mm)11900
    Bearing capacity (t)25
    PipeKelly (mm)108×108×7500
    Assistant pipe (mm)89×10×5500
    Hydraulic pumpModelCB-HP532FH
    Pump delivery (ml/r)50
    Rated speed (r/min)2000
    Rated pressure(MPa)20

    BW850/2A

    mud pump


    Diameter of cylinder (mm)150
    Stroke of piston (mm)180
    Theory of flow (L / min)600 850
    Rated pressure (Mpa)3 2
    Pounding times (min-1)58 82
    Diameter of suction tube (mm)127
    Diameter of drain pipe (mm)64
    Input speed (r / min)470
    Input power (kw)40
    Overall dimensions (mm)2000*1030*1400
    Weight (t)1.5
    Diesel powerRated power(KW)Commins brand diesel, 97KW
    Speed (r/min)2100 r/min
    Weight (kg)15340
    Transport size(L*W*H)(mm)12500*2480*3750
    Working size(L*W*H)(mm)9677*2480*13600
    Product features

    ◎BZCT300SZ tralier mounted drilling rig is designed by our engineers; it is adopt trailer mounted and is a rotary drilling rig.

    ◎This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2A mud pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.

    ◎The power of drilling rig comes from the diesel engine; the rig sets up distribute implement and hydraulic system.

    ◎The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.

    ◎The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.

    ◎The appearance of rig is pretty. It has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working. It is popular with domestic and foreign clients.

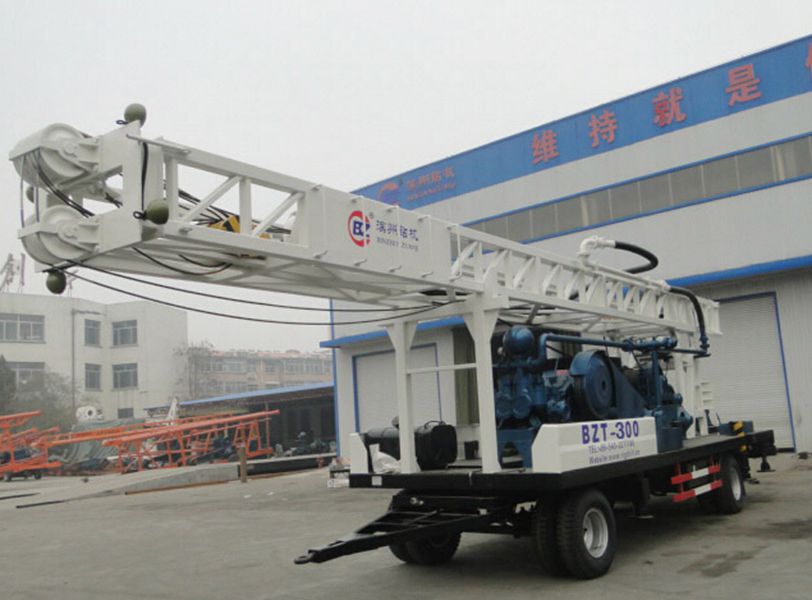

    Product picture
