    SGS 400m Depth Pile Drilling Machine With 1 Year Warranty BZC400CHW

    Ask Lasest Price
    Brand Name : BINZUAN
    Model Number : BZC400CHW
    Certification : ISO900;SGS
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 2 Set/Sets per Quarter
    Delivery Time : 70days
    • Product Details
    • Company Profile

    SGS 400m Depth Pile Drilling Machine With 1 Year Warranty BZC400CHW


    BZC400CHW 400m famous in Africa truck mounted water well drilling rig rotary drilling rig


    Quick details


    Condition:New

    Type:Rotary Drilling Rig

    Power Type:Diesel

    Place of Origin:Shandong, China (Mainland)

    Brand Name:BINZUAN

    Usage:Water Well

    Voltage:220/380V

    Dimension(L*W*H):12500*2480*3440MM

    Weight:26T

    Certification:ISO900;SGS

    Warranty:1 Year

    After-sales Service Provided:Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service

    chassis:HOWO SINOTRUK

    depth:400m

    diameter:500mm

    mud pump:BW850


    Product Description


    1. BZC400CHW truck mounted drilling rig is designed by our engineers; it is adopt truck mounted and is a rotary drilling rig.

    2. The truck chassis is adopt th6×4 special chassis of brand SINOTRUK HOWO, the main transmit, transmission power, gearbox, sets of windlass, mud pump,mast are setup on the chassis.

    3. This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/20 mud pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.

    4. The power of drilling rig comes from the extra CUMMINS diesel engine 6BTA-C150 112KW; the rig sets up distribute implement and hydraulic system

    5. We set up a generator ( 30kw) , so that it is convenient to illuminate or work at night.

    6. The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.

    7. The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.

    8. The appearance of rig is pretty. It has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working. It is popular with domestic and foreign clients.


    Technical parameter

    Drilling depth(M)400
    Drilling diameter(mm)500
    Speed of turntable(r/min)12.8;22.3;38.5;59.8;102.7;117.6;16.1(reverse)
    Torque of turntable(KN.m)41.4;23.8;13.8;10.6;5.1;4.5;32(reverse)
    Single rope lifting capacity of windlass(KN)45
    The capacity of main windlass(KN)240
    Single rope lifting capacity of hydraulic windlass(KN)40
    The capacity of hydraulic windlass(KN)160
    The lifting capacity of hook(KN)270
    Bearing capacity of mast (KN)280
    The height of mast (mm)12043
    Bearing capacity (t)30
    PipeKelly (mm)108×108×7500
    Assistant pipe (mm)89×10×5500

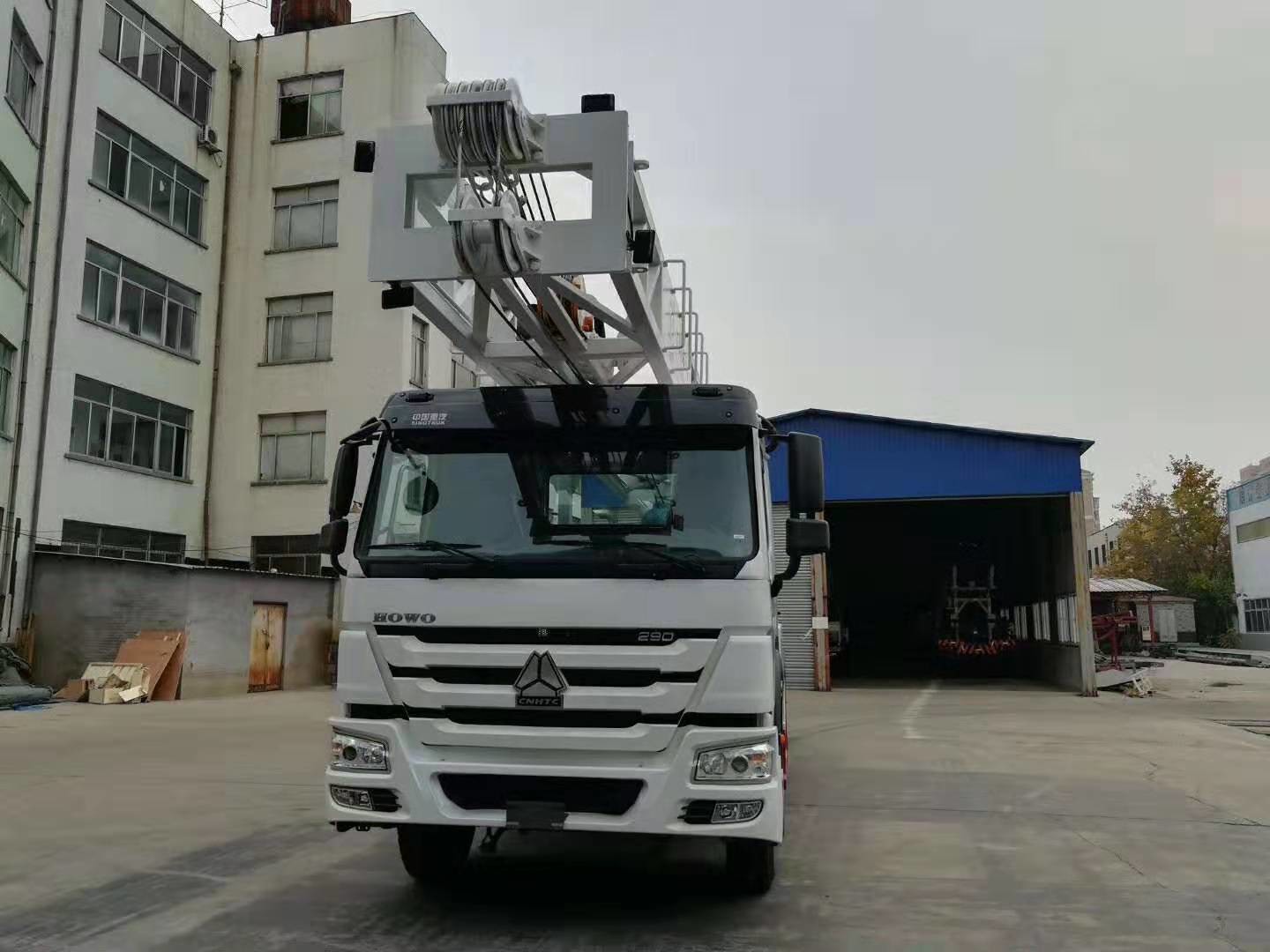

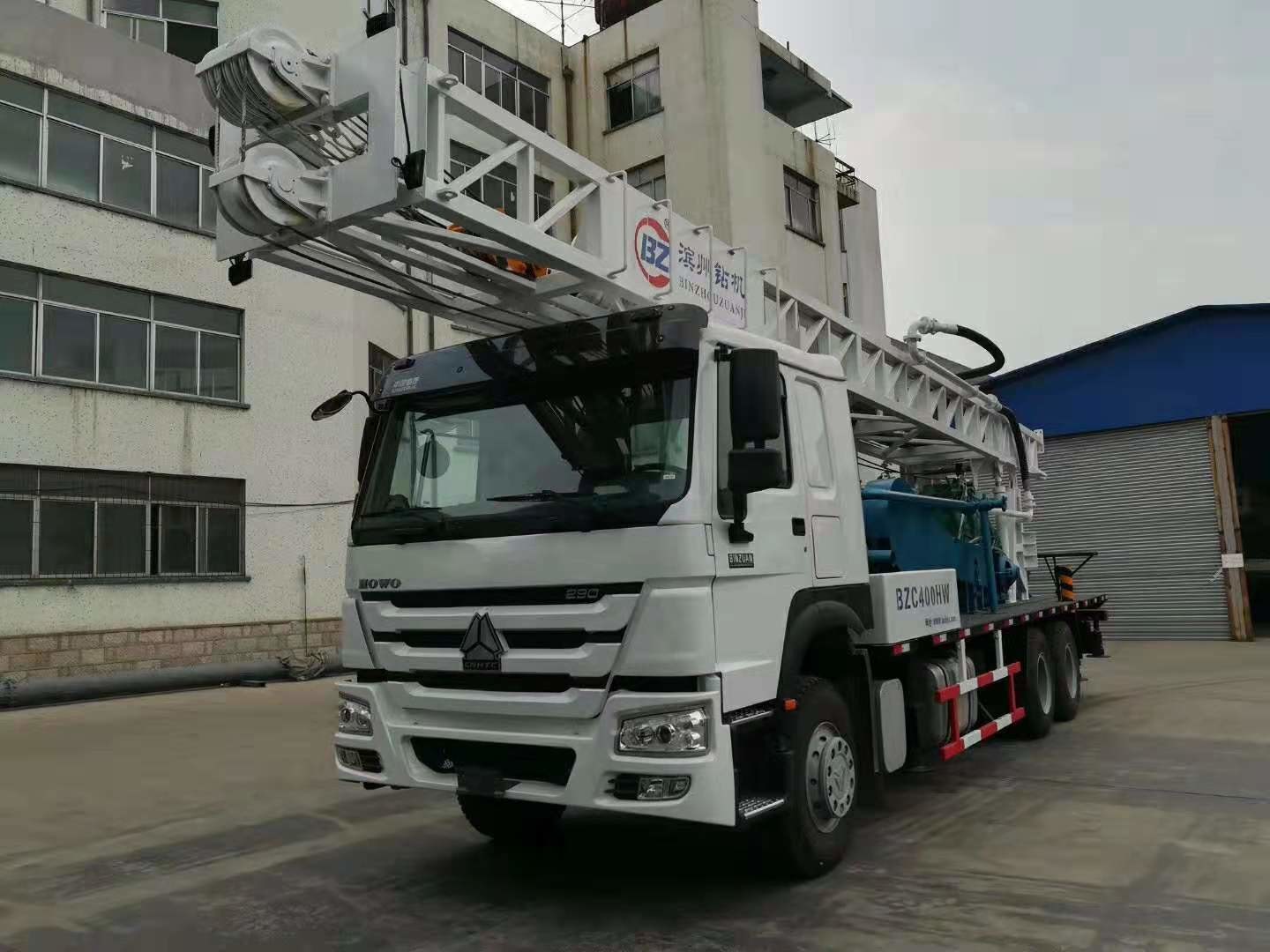

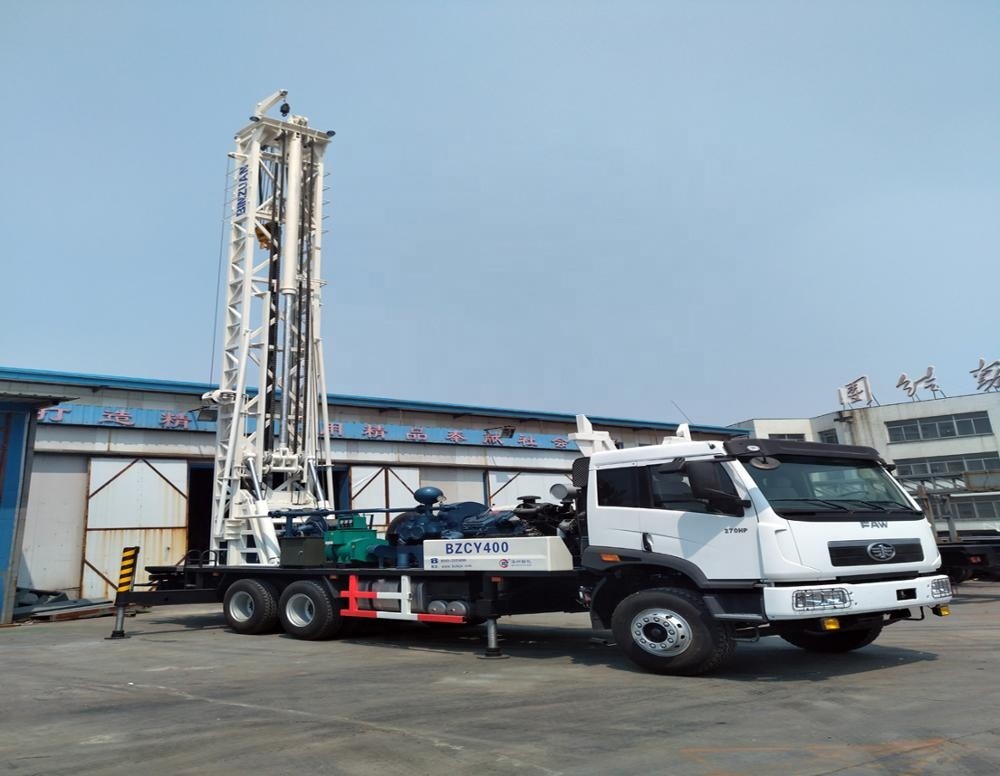

    Product picturesSGS 400m Depth Pile Drilling Machine With 1 Year Warranty BZC400CHWSGS 400m Depth Pile Drilling Machine With 1 Year Warranty BZC400CHWSGS 400m Depth Pile Drilling Machine With 1 Year Warranty BZC400CHWSGS 400m Depth Pile Drilling Machine With 1 Year Warranty BZC400CHWSGS 400m Depth Pile Drilling Machine With 1 Year Warranty BZC400CHW
