    BZT600 Drill Rig Truck With 90kw Electric Motor 600m Depth 500mm Diameter

    BZT600 Trailer-Mounted Drilling Rig 600m Depth 500mm Diameter Optional Color​

    Product description

    BZT600 drilling rig is a kind of trailer drilling rig, the diesel generator, large displacement piston pump, double-hoist, turntable, drilling tower, auxiliary unloading cylinder and other components are mounted on the chassis. It can be pulled through tractor or truck.
    It is equipped 4 hydraulic legs and 2 mechanical legs to balance the rig. After leveling the rig, The mechanical legs can be locked the cylinder using locknut. So, even if the hydraulic cylinder leaks, the chassis is still stable for drilling.
    This drilling rig equipped with an auxiliary unloading cylinder, it can be used to push the turntable ratchet, to achieve auxiliary unloading the drill pipe.
    The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.

    Product featrue

    BZCT600 drilling rig is installed on a trailer together with diesel generator, large displacement piston pump, double-hoist, turntable, drilling tower, auxiliary unloading cylinder and other components. It can be traction through tractor or truck. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylinder leaks, the chassis is not instability. This drilling rig equipped with an auxiliary unloading cylinder, it can be used to promote the turntable ratchet, to achieve auxiliary unloading the drill pipe. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.

    Product parameter


    Technical parameter
    Drill depth(m)600
    Drill diameter(mm)500
    turntable hole diameter(mm)500
    Turntable speed(r/min)38,57,85
    turntable torque in theory13.8,9.2,6.2
    main hoist single lifting power(kNm)40
    assistant hoist single lifting power(KN)30
    efficient hight of towershort tower(m)12
    long tower(m)15
    swivelMax-load(T)30
    Inner diameter(mm)63.5
    kelly(mm)Short tower108x108x7500
    long tower108x108x10500
    Drill rod(mm)Short tower¢89×10×5500
    Long tower¢89×10×9000
    Working size(L×W×H mm)Short tower15100×2480×14170
    Long tower15100×2480×17170
    Transporting size(L×W×H mm)Short tower15100×2480×4100
    Long tower16630×2480×4100
    Electric generatormodelSCGC-200kW diesel generating set
    Rated voltage(V)400
    Rated current(A)360
    frequency(Hz)50
    mud pumpmodel3NB-130
    specified discharge(L/s)8.4-16.6
    rated working pressure(MPa)5-10
    Input speed(r/min)565
    power90kw electric motor
    gear oil pumpmodelCB-E532F
    displacement(ml/r)32
    rated working pressure(Mpa)20
    High pressure(MPa)25
    power11kW electric motor

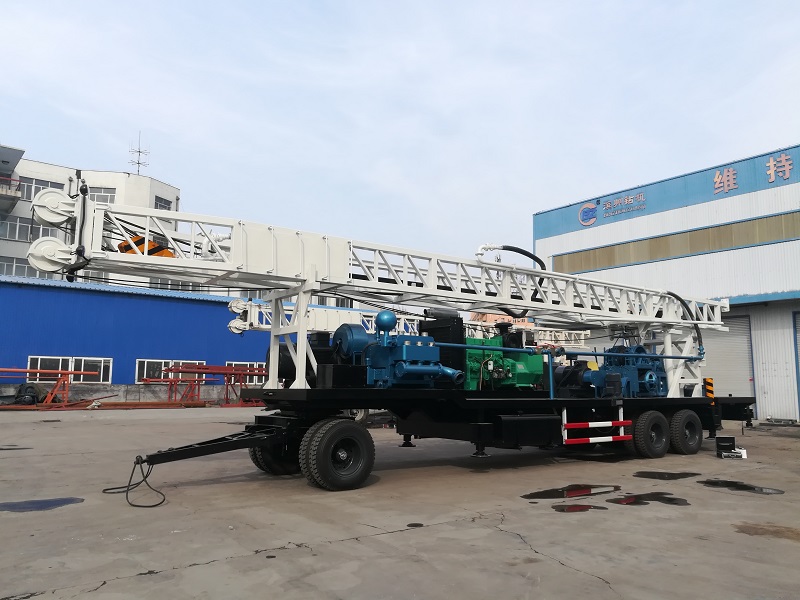

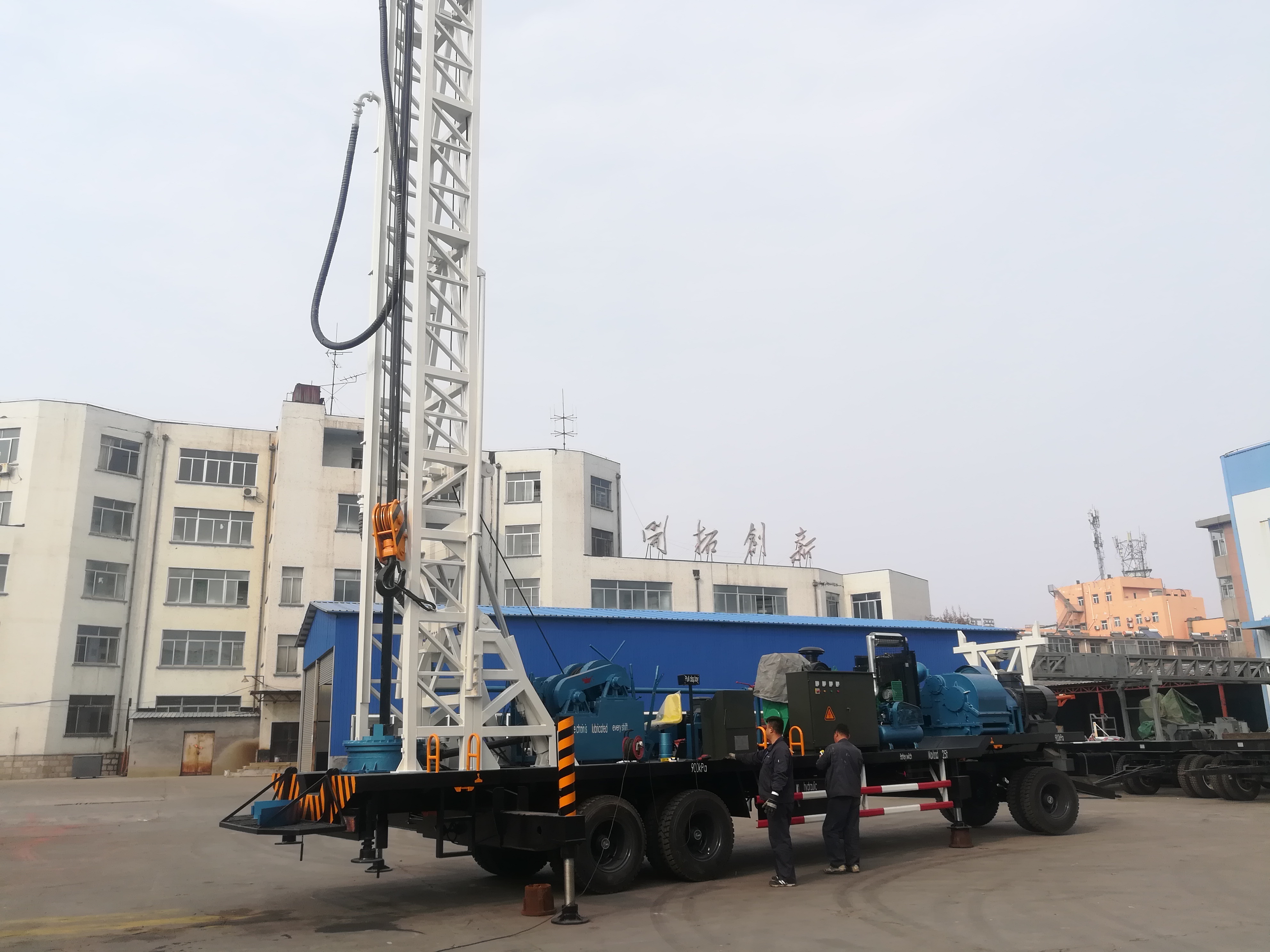

    Product picture
