    680KN XZ680A Horizontal Directional Drilling Machine / Core Drilling Rig

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : XZ680A
    Certification : ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500 sets per month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    680KN XZ680A Horizontal Directional Drilling Machine / Core Drilling Rig

    680KN XZ680A Horizontal Directional Drilling 12 Drilling Machine​


    Product Application


    XZ Horizontal Directional Drills are mainly used in the trenchless piping construction and replacement of the underground pipe. The XZ Horizontal Directional Drills have the advantages of advanced performance, high efficiency and comfortable operation. Many key components adopt international famous products to guarantee the quality. They are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system, crude oil industry.


    Product description


    1.The gear and rack transmission makes stability and reliability, Carriage spindle floating toto protect the drill pipe thread and improve the service life of the rods.
    2.Elastic equilibrium release technology is to avoid device damaging when pulling pipeline back, which increase the reliability.
    3.Wire guided walking system makes moving safe.
    4.Mud flux stepless speed regulation saves mud and reduce pollution.
    5.Cab’s 45 ° rotation enhances comfortable operation.


    Main Features


    1) Clamp and carriage use double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.


    2) High-speed sliding systems, variable motor to achieve high and low carriage sliding change, increasing the ability to adapt the drilling rig working conditions, improve the efficiency of the drilling rig construction.


    3) Support the diverse needs of customers, the machine can option configuration with the automatic(semi-automatic) drill pipe handling device, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing, mud throttling and other devices, can also be optioned more Eco saving with EU Stage IIIA.


    Product parameters

    XZ680A HORIZONTAL DIRECTIONAL DRILL / XZ680A HDD MACHINE
    ITEMPARAMETER
    EngineMakeCummins
    ModelQSL8.9-C360
    Rated Power242KW / 2100 R/Min
    OperationTypeRack and pinion
    Max. Thrust /Pullback Force800/800KN
    Max carriage thrust/pullback travel speed35M/Min
    Max. Spindle Torque35000 N·M
    Max. Spindle Speed110 R/Min
    TypeSelf-Propelled Steel Track
    Ground Travel Speed3.0 Km/h
    Drill Rod/ Drill pipeDiameter ×LengthΦ102mm×6000mm
    Entry Angle18°
    Mud PumpMax flow rate600L/Min
    Max pressure10
    Overall Weight21T
    Overall Dimension11610×2475×3115mm

    Our customer all over the world


    African countries:

    Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.


    South America:
    Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador, Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama, Antigua and Barbuda

    South Pacific:
    Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji, Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook Islands, Republic of the Marshall Islands, American Samoa, Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu, Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.

    Asia countries:
    North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar, Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan, Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus, Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan, Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.

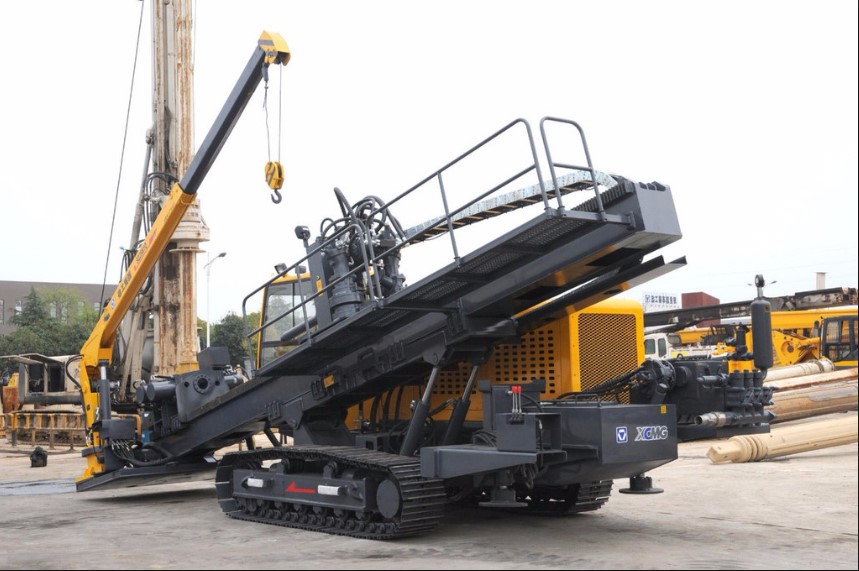

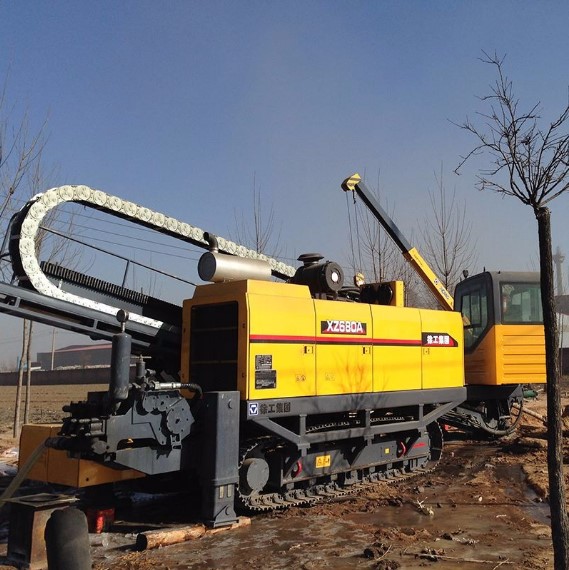

    Product picture
    XZ680A HDD MACHINE WITH ONE YEAR GUARANTEE PERIOD
