    BZ300CA Hydraulic Rotary Deep Water Well Drilling Rig With HOWO Chassis

    Ask Lasest Price
    Brand Name : HOWO
    Model Number : BZ300CA
    Certification : ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500 pieces per month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    BZ300CA Hydraulic Rotary Deep Water Well Drilling Rig With HOWO Chassis


    BZ300CA Hydraulic Rotary Deep Water Well Drilling Rig With HOWO Chassis


    Product parameter


    Drilling depth (M)300
    Borehole diameter (mm)500
    Rotary table speed (r/min)6.7; 10; 17; 43; 63; 108 (reverse)
    Rotary table torque (KN.m)14.5; 9.7; 5.7; 2.3; 1.5; 0.9 (reverse)
    Pull force of the main winch (with single winch rope) (KN)30
    Max. pull force of the main winch (KN)180
    Pull force of the auxiliary winch (with single winch rope) (KN)30
    Max. pull force of the auxiliary winch (KN)120
    Elevating capacity of the hook (KN)180
    Carrying capacity of the drill tower (KN)180
    Drill tower height (mm)10200
    Load bearing capacity (t)28
    Drill stemMain drill stem (mm)108×108×6000
    Second drill stem (mm)89×10×4500
    BW850/2A slurry pump / mud pumpCylinder sleeve diameter (mm)150
    Piston travel (mm)180
    Theoretical flow rate (L/min)600 850
    Rated pressure (Mpa)3 2
    Stroke frequency (min-1)58 82
    Suction pipe diameter (mm)127
    Drain pipe diameter (mm)64
    Rotation speed (r/min)470
    Input power (kw)40
    Overall dimension (mm)2000×1030×1400
    Weight (t)1.5
    Matching power unitDiesel engineModelYC6J180-33 water cooled, 4-stroke, intercooled supercharged diesel engine
    Rated power (KW)132
    Speed (r/min)2500
    Max. torque590N.m/1400-1700rpm
    Chassis drive type6×4

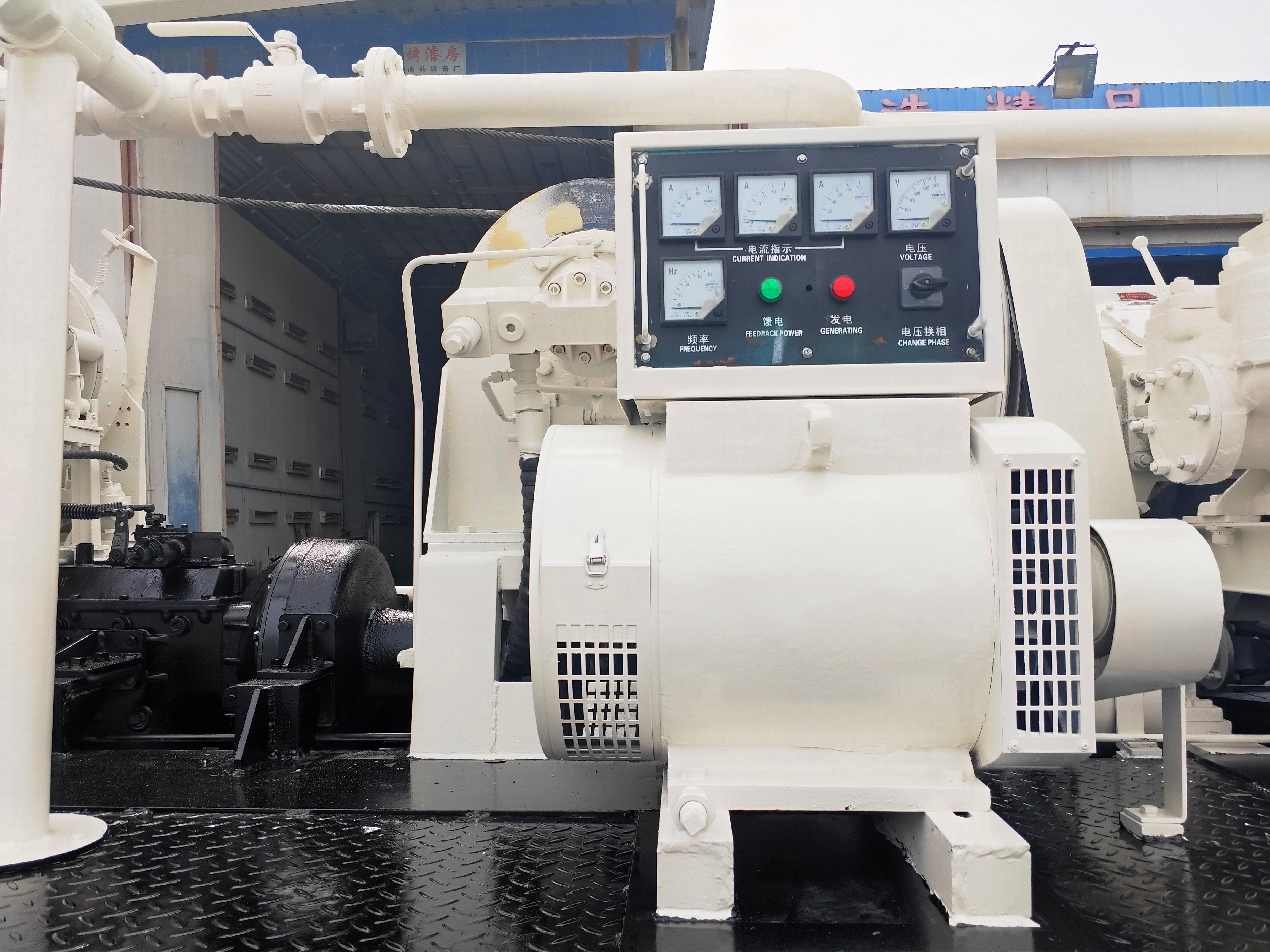

    Generator setRated power (KW)100
    Rated voltage (V)400
    Rated frequency (Hz)50
    Max. truck travel speed (Km/h)75
    Weight (kg)17340
    Transport dimensions (L×W×H) (mm)10452*2400*3726
    Overall dimension (L×W×H) (mm)10432*3570*11459

    Product feature


    The rotary table of this water well rig comes with large torque and as a result the drill equipment makes a hole quickly. Currently, our truck mounted drilling rig has found applications in water conservation projects, the drilling of industrial deep well, conventional water well and geothermal well, etc., and national defense fields, to name a few. It is applicable for drilling into clay, sand, bed rock, basalt strata, and more.

    The truck chassis adopts the 6X4 special crane chassis of brand SINOTRUK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are setup on the chassis.The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.


    Packing:


    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.

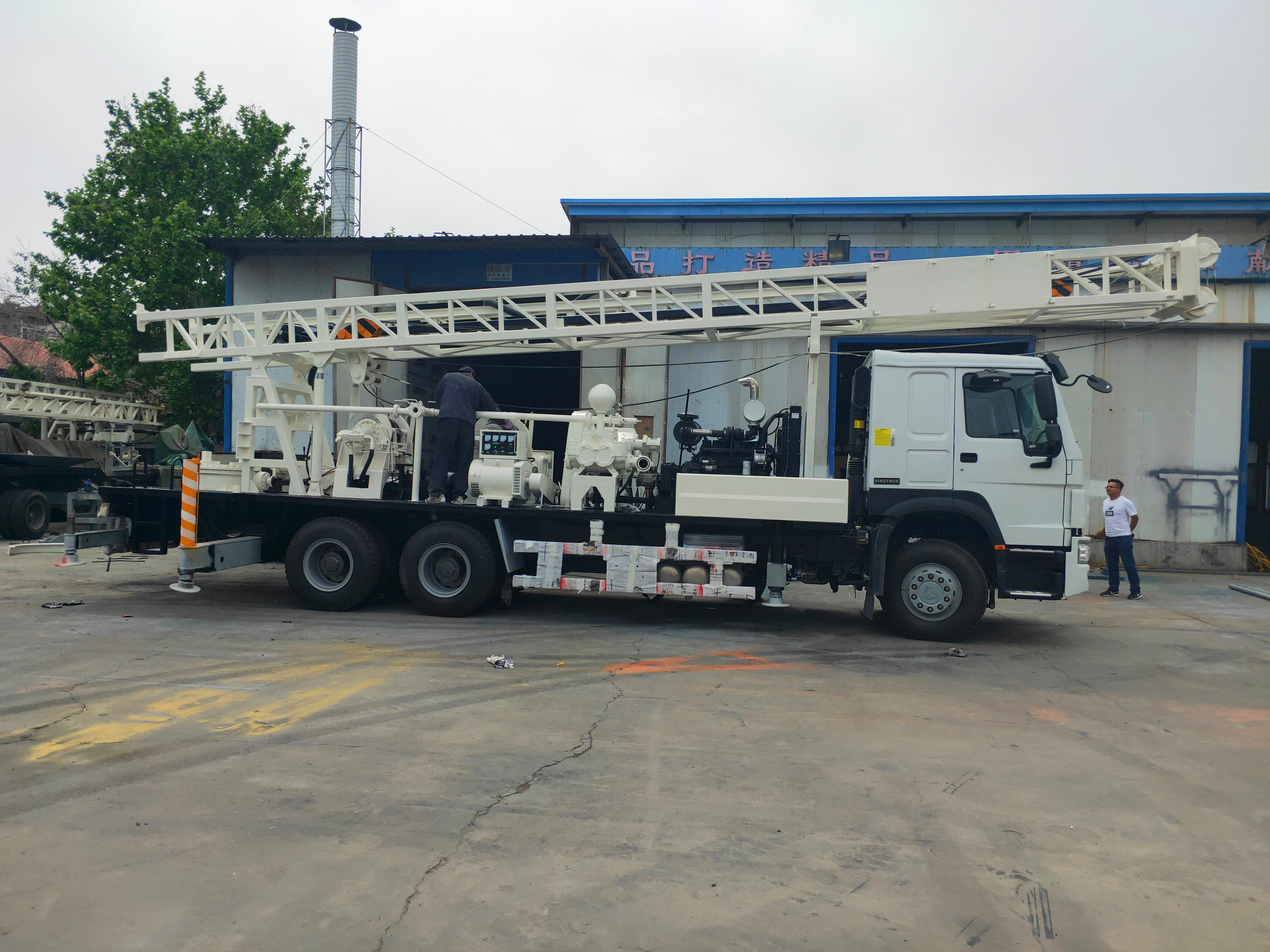

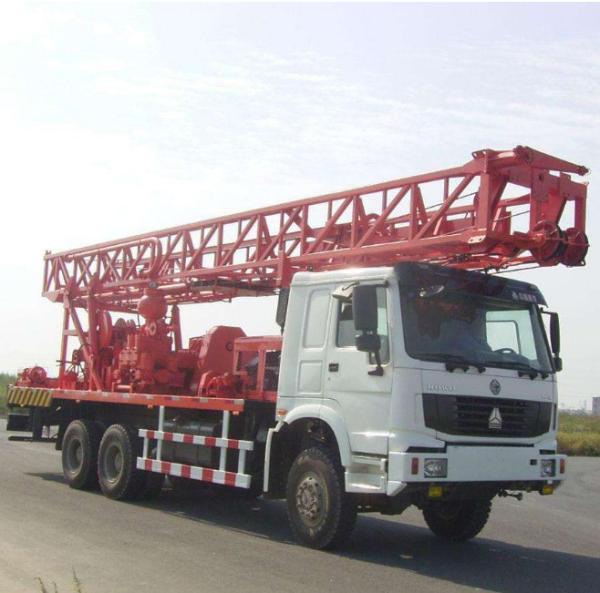

    Product picture



    Quality BZ300CA Hydraulic Rotary Deep Water Well Drilling Rig With HOWO Chassis for sale
