    Sinotruk HOWO 50T Mining Dump Truck 371HP Euro Two HW7D Cab Left Hand Drive

    Ask Lasest Price
    Brand Name : HOWO
    Model Number : ZZ5507S3840AJ
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500sets per month
    Delivery Time : 30-45days
    • Product Details
    • Company Profile

    Sinotruk HOWO 50T Mining Dump Truck 371HP Euro Two HW7D Cab Left Hand Drive

    Drive Wheel:6x4Capacity (Load):50t
    Engine:WD615.47Horsepower:371hp
    Transmission Type:ManualFuel Type:Diesel
    Engine Capacity:> 8LEmission Standard:Euro 2, EUROII

    Sinotruk HOWO 50T Mining Dump Truck, 371HP Euro Two


    Product Details

    Truck ModelZZ5507S3840AJ
    Truck BrandSINOTRUK—HOWO
    Driving TypeLeft Hand Driving
    Dimension(Lx W x H)(unloaded)(mm)8700x3000x3900
    Cargo body size (L*W*H, mm) (mm)5800*2800*1700
    Cargo body Thickness(mm)bottom:12mm, side:10mm,
    Cargo materialManganese plate
    Lifting System

    Front lifting
    HYVA brand

    Approaching angle/Departure angle(°)32/40
    Overhang(front/rear) (mm)1500/1560
    Wheel base (mm)3800+1500
    Max speed(km/h50
    Min. ground Clearance (mm)340
    Max. gardeability (%)42
    Min. turning Radius (e)22
    Curb weight(kg)21000
    Loading Weight(kg)50000

    Engine

    ModelWD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter cooling, directly injection
    BrandSINOTRUK
    Fuel typeDiesel
    Horse Power371HP
    EmissionEURO II
    Fuel tanker capacity (L)500
    ClutchSingle-plate dry clutch Φ430mm
    TransmissionModelHW21712 (12 forward & 2 reverse)

    Brake system

    Service brakeDual circuit compressed air brake
    Parking brakespring energy, compressed air operating on rear wheels
    Auxlary brakeengine exhaust valve brake
    Steering systemModelZF, hydraulic steering with power assistance
    Front axleHF10 , Steering with double T-cross section beam
    Rear axleAC16, (cast steel 2×16ton hub-reduction axle)
    ColorOptional
    Tire

    13.00-25
    10PCS with one spare tire

    Electrical system

    Battery2X12V/165Ah
    Alternator28V-1500w
    Starter7.5Kw/24V
    CabHW7D cab, (with air-condition), Left hand drive


    Our Service:

    Article 1: Quality
    1.1- The Goods are brand new and shall conform to the relevant quality standards of FAW Group.
    1.2- The manufacturer’s inspection prior to the shipment shall be final. In case any third party’s inspection is required by the Buyer, any charges which will be occurred by such inspection shall be borne by the Buyer.

    Article 2 :Quality/Specifications/Quantity discrepancy
    If the quality, specifications, quantity, of Goods be found not in conformity with the stipulations of contract after the arrival of the Goods, we will compensate it after receiving the necessary documentary evidence as required.

    Article 3: Warranty and After-sales service
    We and all of our distributors have enough ability to provide carefulness and consideration Warranty and After-sales service.

    Packing:

    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.

    Factory Show:

    SINOTRUK produced China's first heavy-duty truck- Huanghe JN150 8t truck in 1960, and introduced a heavy-duty truck project from Steyr in 1983. After rapid development of many years, SINOTRUK has initially built an international platform through the red-chip listing in Hong Kong in 2007, forged a strategic partnership with MAN which holding a 25%+1 stake in SINOTRUK (Hong Kong) Limited in 2009, and introduced a series of technologies from the outside soon afterwards.
    Nowadays, with overwhelming superiorities in technology and market, SINOTRUK has become China's largest heavy truck manufacturing base that has made a remarkable contribution to the development of China's heavy-duty truck industry and economic construction.

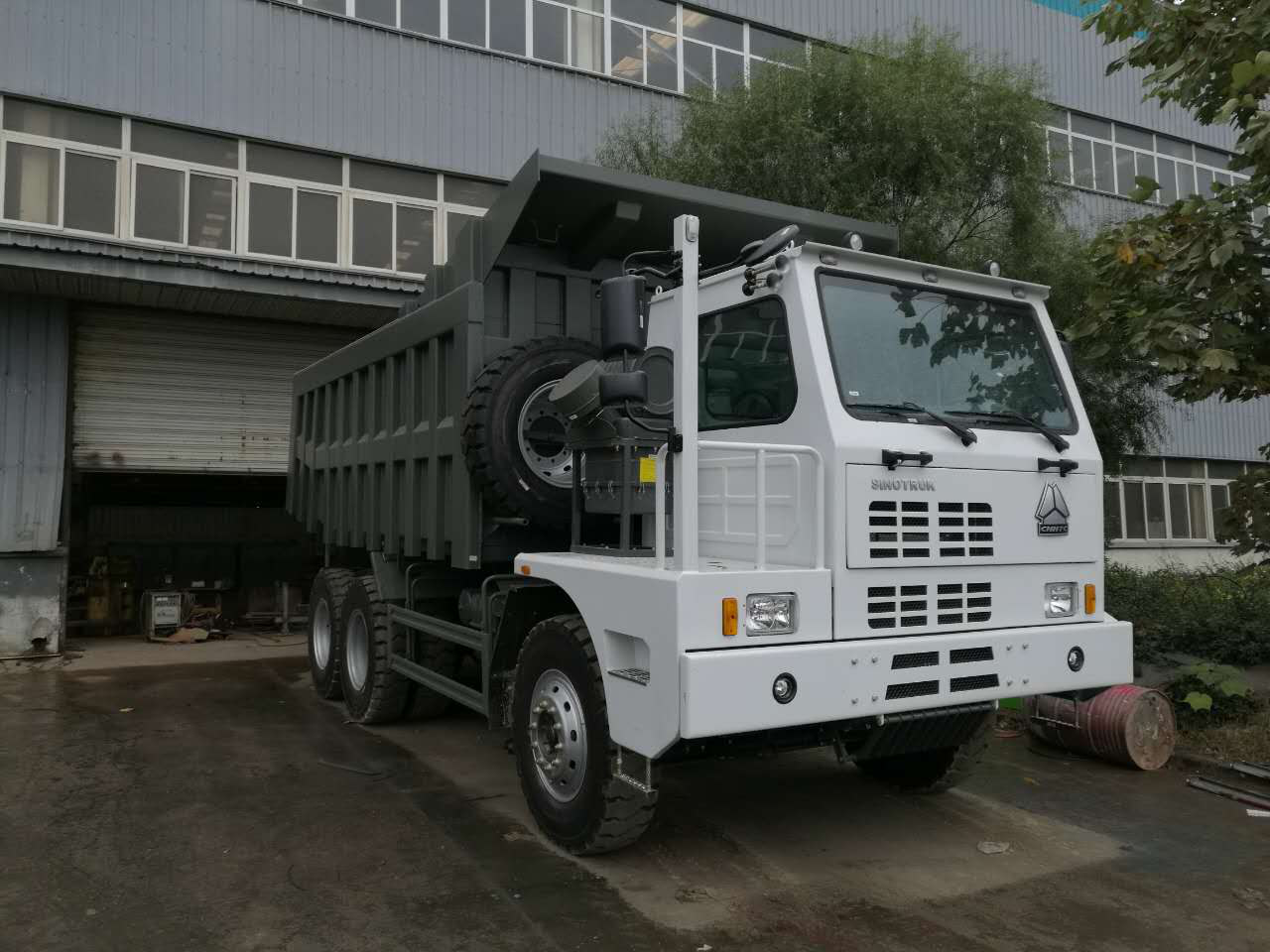

    Reference pictures:































    Quality Sinotruk HOWO 50T Mining Dump Truck 371HP Euro Two HW7D Cab Left Hand Drive for sale
