    320HP SD32 SHANTUI Crawler Bulldozer With 335.5L / Min Displacement

    Ask Lasest Price
    Brand Name : SHANTUI
    Model Number : SD32
    Certification : ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 10000 Unit/Units per Year
    Delivery Time : Shipped in 30 days after payment
    • Product Details
    • Company Profile

    320HP SD32 SHANTUI Crawler Bulldozer With 335.5L / Min Displacement

    320HP SD32 China SHANTUI Brand New Crawler Bulldozer With 335.5L/min Displacement


    Product Description


    The SD32 provides a showcase for Shantui’s prowess with high-efficiency push factors. These medium-sized, but heavy-duty machines designed for earth-moving projects get the biggest, toughest jobs done quickly and efficiently. SD32s are equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provide reliable performance and convenient and flexible operation.


    Packing:


    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.


    FAQ


    Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
    A: We can make the tyres as your requirement to suit your country's need.


    Q:How about your product quality?
    A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.


    Q:I want to be your agent in my country , is that ok?
    A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.


    Q:How to maintain the trucks?
    A:Every day to lubricate the truck, because the working condition is dusty. And you have to change engine oil and air filter when the trucks arrive at about 8000-10000km or 400-500 hours.


    Q:Do you have oversea after-sale service?
    A:When you have some problems which you can’t solve. we will arrange our engineers to your country to help you.


    Product parameter


    SD32 SHANTUI BRAND BULLDOZER
    ModelSD32
    BrandSHANTUI
    TypeBULLDOZER MACHINERY
    EngineBrandCUMMINS-diesel
    ModelNTA855-C360
    EmissionEuro III
    Engine type

    Turbocharged, intercooled, in line

    , 4-cycle

    Number of cylinders6
    Max. output320hp@2000rpm
    Piston displacement14010ml
    Bore/Stroke(mm)139.7*152.4
    Max torque1440N.m
    Fuel consumption245g/kw.h
    Start motor24V, 11kw
    Alternator28V, 35A
    Battery24V(12V*2)—195AH
    Fuel system

    PT pump head valve

    direct injection

    GovernorCentrifugal , all speed governor
    Cooling system

    Forced circulation by

    centrifugal pump,

    busher tyre fan

    Air cleaner

    Dry, horizontal type

    with air cleaner

    Travel Speed


    1stForward (km/h)0-3.6
    Reverse (km/h)0-4.4
    2ndForward (km/h)0-6.6
    Reverse (km/h)0-7.8
    3rdForward (km/h)0-11.5
    Reverse (km/h)0-13.5

    Working

    Equipment

    and

    Attachment


    Dozer

    Straight-tilt: Hydraulically

    actuated

    with servo valve

    Blade supporting

    method

    Brace type tilt cylinder

    on right side

    Blade width(mm)4130
    Blade height(mm)1590

    Max.lift above

    ground (mm)

    1560

    Max.drop below

    ground (mm)

    550

    Max.tilt adjustment

    (mm)

    1000

    Transmitting

    System


    Torque converter

    Torque converter, 3-element,

    1-stage,1-phase

    Cooling methodWater-cooled
    Transmission

    Planetary gear, multiple –disc clutch , hydraulically

    connected forced

    lubrication by gear pump

    Main-drive shaft

    Spiral bevel gear ,

    Splash lubrication

    Final Drive2-stage spur gear, speed reduction, splash lubrication

    Steering System


    Steering Clutch

    Wet type, multi-disc, spring loaded,

    hydraulically separated ,

    hand and hydraulic control operated.

    Steering brake

    Wet type, band brake, foot operated

    (with hydraulic booster , interconnected

    with clutch)

    Undercarriage

    System

    Suspension

    Swing type of sprayed beam,

    suspended structure of equalizer bar

    No of Carrier rollers

    (each side)

    Two

    No of Track rollers

    (each side)

    Seven
    No of Idler(each side)One
    Track ShoeAssembled typesingle tooth
    Pitch228.6mm
    Width560mm
    Tooth height80mm
    No of track shoes41 (each side)
    Track gauge2140mm
    Ground pressure0.105Mpa

    Hydraulic

    Control System


    Max.preesure14MPa
    Pump typeGear pump
    Displacement335.5L/min
    Control valve typeGuiding valve
    Hydraulic tank

    Control valve and oil filter

    inner-installed type

    Coolant &

    Lubricant

    Capacity


    Cooling water:121L
    Fuel tank600L
    Engine47L
    Bevel gear case185L
    Final drive case(each side)55L
    Hydraulic tank164L
    WeightOperating weight37200kg
    With multi-ripper40975kg
    DimensionLength x Width x Height

    6880x4130x3725 mm

    (without ripper)

    Length x Width x Height

    8650x4130x3725 mm

    (with ripper)

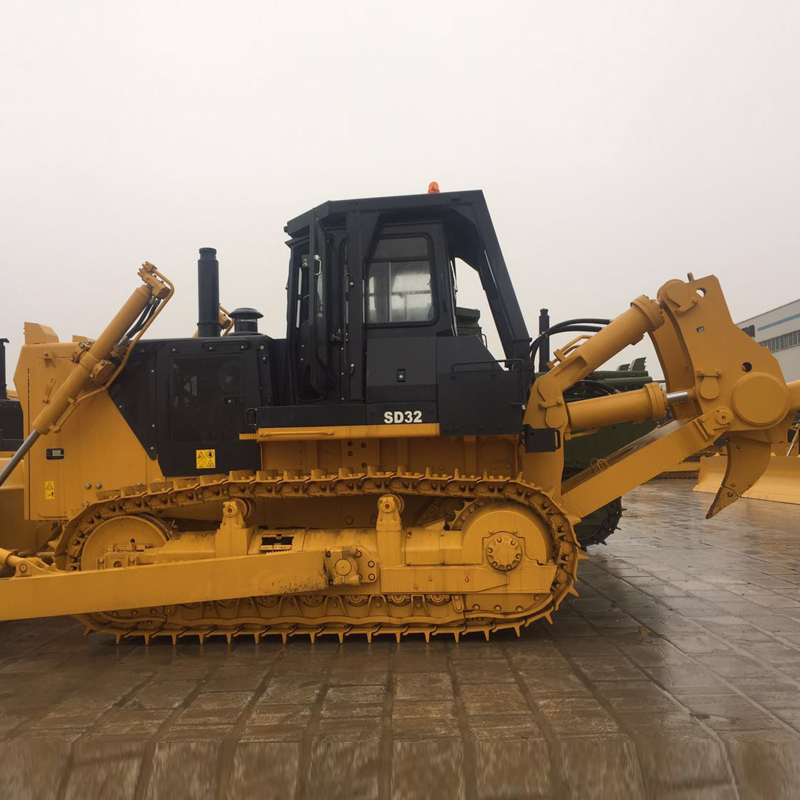

    Product picture
