SHANTUI 420hp American Bulldozer SD42 With KTA19-C525 Engine And
Semi-U Blade
Product Description
KTA19-C525 turbocharged diesel engine reduces the quantity of parts
by >25% and saves the maintenance time by >50% than like
products, featuring strong power and high efficiency and
energy-saving.
The high reliability power shift transmission and the planetary
gear final drive feature high power transmission efficiency and
high durability and productivity.
The new structure cylinder and the originally imported seals and
hydraulic hoses for critical portions are adopted to greatly
promote the service life and reliability. The external working
valves make the maintenances easier.
The imported instruments feature higher reliability and more
accurate and distinct indications and realize electronic monitoring
and out-of-limit alarm for the operation conditions of major
components and for the parameters such as oil temperature, oil
level, and water temperature.
The K-type air suspension traveling system and hinged chassis
structure can effectively guard the drive system against the
influence of impact load and improve the traction performance and
life of the machine.
The full box-type main frame with application of high performance
materials and high strength castings features high carrying
capacity against impact load and bending moment to support the
continuous high-strength working of machine under severe working
condition and the high quality welds guarantee the life cycle of
the main frame.
The ergonomic driver seat and armrests can be adjusted easily in
vertical and longitudinal directions. The gearshift, steering, and
accelerator controls are arranged on the left side and the working
device controls are arranged on the right side. The PPC pilot
control system is adopted to achieve lighter and more flexible
operations and relieve the operating fatigue.
The front working device is one standard semi-U blade in super-high
capacity of 16m3, which is an ideal high-efficiency working device
for earthwork constructions and bulk material handling. The rear
working device is one single-shank ripper of adjustable angle,
featuring super-strong penetrating force.
Feature
Single-hand, electronic-control gear shift and steering systems;
Working device controlled by PPC proportional pilot valve;
K suspension drifting travel system;
Global intelligent service system;
Central pressure measurement, central lubrication, and automatic
track tensioning
Parameters
| L×W×H (Ripper not included) | mm | 9630×4315×3955 (Ripper included) |
| Operating weight (Ripper not included) | t | 53 (Ripper included) |
| Engine | - | KTA19-C525 |
| Rated power | kW/rpm | 310/2000 |
| Gradeability | ° | 30 |
| Blade type | - | Semi-U blade |
| Blade width | mm | 4315×1875 |
| Dozing capacity | m3 | 16 |
| Ma× drop below ground of blade | mm | 700 |
| Lift height of blade | mm | 1545 |
| Ripper type | - | Single ripper |
| Ripping depth of ripper | mm | 1400 |
| Lifting height of ripper | mm | 1130 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 7 |
| Number of track shoes (each side) | - | 41 |
| Width of track shoe | mm | 610 |
| Track gauge | mm | 2260 |
| Ground length and ground pressure | mm/MPa | 3560-0.123 |
| Pitch | mm | 260.35 |
| Forward speed | km/h | 0–3.7 |
| 0–6.8 |
| 0–12.2 |
| Reverse speed |
km/h | 0–4.4 |
| 0–8.2 |
| 0–14.8 |
Our customer all over the world
African countries:
Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya,
Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania,
Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea,
Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire,
Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia,
Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.
South America:
Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador,
Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay,
Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica,
Panama, Antigua and Barbuda
South Pacific:
Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji,
Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook
Islands, Republic of the Marshall Islands, American Samoa,
Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn
Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu,
Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.
Asia countries:
North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar,
Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri
Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan,
Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus,
Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia,
Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan,
Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.

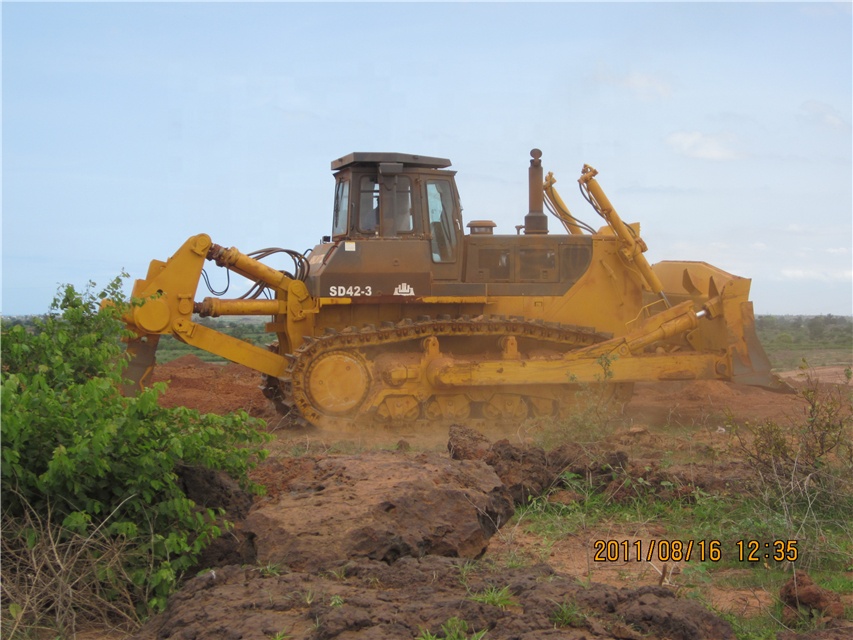

Product picture
