Water Well Drilling Machine 300 Meters Depth Rotary Drilling Rig
Borehole Drilling Machine
Quick Details
Applicable Industries:Construction works , Energy & Mining
Condition:New
CNC or Not:CNC
Drilling Speed:10
Place of Origin:Shandong, China
Brand Name:BINZUAN
Model Number:BZC300CDF
Voltage:380V
Power(W):97000
Dimension(L*W*H):12.5*2.5*4M
Certification:ISO9001:2008 ;SGS
type:truck mounted
Range of Spindle Speed(r.p.m):50 - 110
Max. Drilling Dia. (mm):1000
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field
maintenance and repair service
Key Selling Points:Multifunctional
drill depth:300m
open hole diameter:500mm
stratum:all kinds
Application:bore hole construction
Keyword:water well drilling rig
Color:any
Service Life:for ever
brand:BINZUAN
Weight:21t
Supply Ability:10 Set/Sets per Quarter
Product features
BZC300DF water well drilling machine is designed by our engineers;
it adopts truck mounted and is a rotary drilling rig.
The truck chassis adopts the 6X4 special crane chassis of brand
DONGFENG TRUCK, the main transmit, transmission power, gearbox,
sets of windlass, mud pump, sewage pump,mast are set up on the
chassis.
This rig is a rotary drilling machine with directional circulation,
which is equipped with BW850/2A mud pump, It adopts the slurry as
the washing fluid, it can drill on clay, sand and rock if it is
equipped with a good drilling bit. The power of drilling rig comes
from the NC6110ZG17-20(115kw) independent engine, the rig setups
distribute implement and hydraulic system.
We can upset the spare electric engine and clutch implement
according to client's requirement, so that the rig can work with
diesel engine or electric engine.The adding pressure device is
hydraulic, so it has a high efficiency when the rig drill on mud
rock and weathering formation through using the adding pressure
implement.
The master driving of rig is mechanical, the four jacks and mast
are hydraulic operated. Distribute box, sewage pump, master driving
clutch system are air operated.
The appearance of rig is pretty, it has a high efficiency because
of having a larger torque of the turntable, it is mainly used for
water well, construction, national defense building foundation,
geological exploration, geothermic well and other foundation
working, it is popular with domestic and foreign clients.
Our customer all over the world
African countries:
Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya,
Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania,
Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea,
Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire,
Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia,
Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.
South America:
Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador,
Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay,
Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica,
Panama, Antigua and Barbuda
South Pacific:
Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji,
Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook
Islands, Republic of the Marshall Islands, American Samoa,
Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn
Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu,
Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.
Asia countries:
North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar,
Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri
Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan,
Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus,
Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia,
Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan,
Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.
Technical parameter
| Parameter |
| Drill depth | 300(m) |
| Drill rod | 89mm (3-1/2”) |
| Winch capacity | Main hook lifting capacity (kN) | 180 |
| Auxiliary hook lifting capacity(kN | 120 |
| Max- rope speed of main winch(m/min) | 80 |
| Max- rope speed of auxiliary winch(m/min) | 100 |
| Rotary table | Inner diameter (mm) | 500 |
| Rotate speed (rpm) | 47;71;106 |
| Max-torque(kN.m) | 15 |
| Mast | Height(mm) | 11900 |
| Rated load(t) | 24 |
| Drill tool | Kelly(mm) | 108*108*7500 |
| Drill rod(mm) | 89*6000 |
| Mud pump | Displacement 850L/min | Pressure 2Mpa |
| Displacement 600L/min | Pressure 3Mpa |
| Diesel engine | Cummins 6BT5.9-C130 | 97 KW/2200rpm |
| Transportation size | (L)*(W)*(H) (mm) | 12450*2450*4000 |

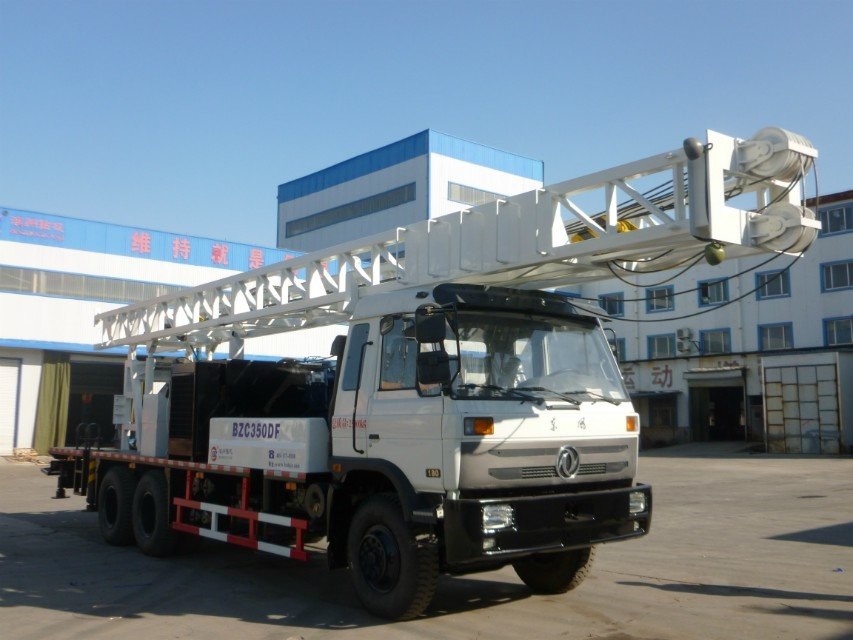

Product picture
