2 Axle 40 Ft 20 Footer Container Semi Trailer Max Payload 65T CCC

    Buy cheap 2 Axle 40 Ft 20 Footer Container Semi Trailer Max Payload 65T CCC from wholesalers

    Buy cheap 2 Axle 40 Ft 20 Footer Container Semi Trailer Max Payload 65T CCC from wholesalers
    • Buy cheap 2 Axle 40 Ft 20 Footer Container Semi Trailer Max Payload 65T CCC from wholesalers
    • Buy cheap 2 Axle 40 Ft 20 Footer Container Semi Trailer Max Payload 65T CCC from wholesalers
    • Buy cheap 2 Axle 40 Ft 20 Footer Container Semi Trailer Max Payload 65T CCC from wholesalers

    2 Axle 40 Ft 20 Footer Container Semi Trailer Max Payload 65T CCC

    Ask Lasest Price
    Brand Name : Lu Jun
    Model Number : 3/4 axles 40ft fence semi trailer
    Certification : ISO9001, CCC
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 400 Unit/Units per Month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    2 Axle 40 Ft 20 Footer Container Semi Trailer Max Payload 65T CCC

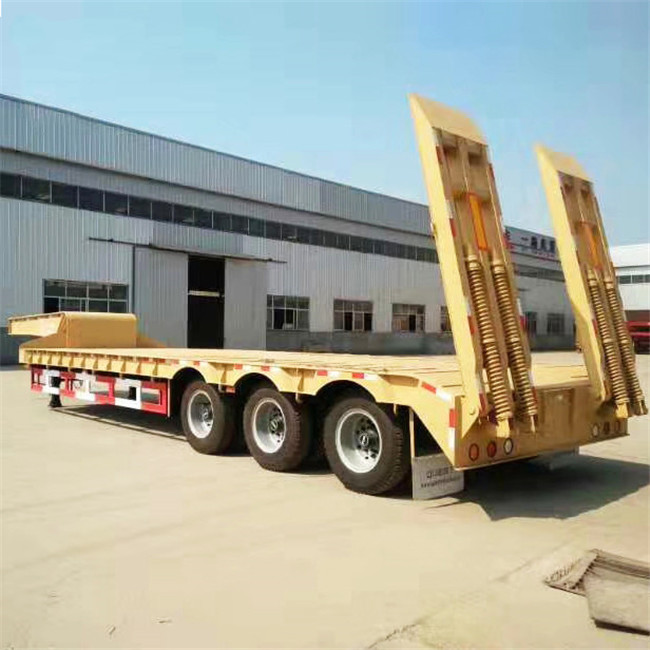

    Tri-axle Low Bed Semi Trailer Semi Trailer Axle Made in China Flat Bed Semi Trailer



    Quick Details

    Use:Truck Trailer

    Type:Semi-Trailer, Flatbed Semi Trailer

    Material:Steel

    Certification:ISO9001, CCC

    Size:12400*2500*2700

    Max Payload:65T

    Place of Origin:Shandong, China

    Usage:Truck Trailer

    Product name:3/4 axles 40ft fence semi trailer

    Axles:13T 16P, 1-4 pcs

    Axle Brand:BPW / FUWA / Yonglitai / Huajin etc.

    Suspension:Mechanical / air / single point suspension

    Color:optional

    Landing Gear:Standard 28Ton, JOST / FUWA etc.

    Tire:12R22.5 or 12R20

    Twist Locks:4, 8, 12pieces


    Supply Ability

    Supply Ability:

    400 Unit/Units per Month

    Packaging & Delivery

    Packaging Details

    Shipped by RO-RO / container / bulk cargo carrier.
    PS: 3 or 4 stack up when transported by bulk cargo carrier.
    PS: 2 or 3 units in one 40' container

    Port

    any port of China

    Lead Time :

    Quantity(Pieces)1 - 10>10
    Est. Time(days)30To be negotiated

    Product Features:
    1. Carry all kinds of cargo:
    (1) wood, sand, stone, cement, equipment etc;
    (2) 20ft or 40ft container (twist locks can setting 8 pcs or 12 pcs).
    (3) non-removable big size objects in factory / construction site.
    2. Size can be customized.
    3. Can load more cargo.
    4. Type: straightness or high-gooseneck or low-gooseneck type
    5. With lower center of gravity, more steady especially at high speed


    Product Description


    Overall Dimension(L*W*H)12400*2500*2700 / 13000*2500*2900mm
    Tare Weight7500KG
    Loading Weight65000KG
    Axle13T 3/4 pcs, BPW or FUWA or Yonglitai or Huajin Brand
    Leaf Spring90*13-10 6/8 sets, Funiu or Taiyue etc.
    Suspension systemMechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type)
    Main BeamThe height of the beam is 500mm, upper plate 14mm, down plate is 16mm, middle plate is 6/8 mm, Material is Q345 Carbon Steel
    Side Beam14#/16# channel steel (Q235)
    Cross member8#/10# channel steel (Q235)
    Platform plate3mm checker Plate or flatbed
    Side wallHeight 600mm / 800mm
    Front boardHeight 1150mm/1350mm
    Container Twist LocksTwist lock optional upon choice (8 pcs or 12pcs)
    Tire Type and quantity12R22.5-18 12units
    Steel Rim9.00-22.5 12Units
    Tool Box1 tyre spanner, 1 gudgeon sleeve and 1 cranking bar
    Traction Pin
    2"(50mm) or 3.5"(90mm)
    Spare Wheel Bracket
    1 piece
    Landing Gear
    Standard 28Ton, JOST or FUWA etc.
    Brake systemWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 40L air tanks, ABS available
    Electrical system1. Voltage: 24V, LED lights
    2. Tail lamp with turn signal, brake light & reflector, side lamp etc.
    3.Receotacle: 7 ways (7 wire harness)
    Paintingcustomize
    otherCan add Mid & Rear Side protection, 24 pcs D-rings, need 11 or 13 doors at the side wall


    2 Axle 40 Ft 20 Footer Container Semi Trailer Max Payload 65T CCC


    2 Axle 40 Ft 20 Footer Container Semi Trailer Max Payload 65T CCC2 Axle 40 Ft 20 Footer Container Semi Trailer Max Payload 65T CCC2 Axle 40 Ft 20 Footer Container Semi Trailer Max Payload 65T CCC2 Axle 40 Ft 20 Footer Container Semi Trailer Max Payload 65T CCC

    Quality 2 Axle 40 Ft 20 Footer Container Semi Trailer Max Payload 65T CCC for sale
