    Mechanical Suspension Heavy Duty Semi Trailers , U Shape 40 T Load Capacity Rear Dump Tipper Semi Trailer

    Ask Lasest Price
    Brand Name : SINOTRUK
    Model Number : QINGZHUAN
    Certification : CCC
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500sets per month
    Delivery Time : 30-45days
    • Product Details
    • Company Profile

    Mechanical Suspension Heavy Duty Semi Trailers , U Shape 40 T Load Capacity Rear Dump Tipper Semi Trailer

    Product Description


    3 axles U shape 40 tons load capacity good quality rear dump tipper semi trail for sale


    All specification and design can be customized !


    Specification of U type three axles dump truck body semi trailer for sale
    Overall Size1050mmx2500mmx3600mm
    Capacity40 tons or Optional upon choice
    ChassisHigh duty and extra durability designed I beam,opting for high tensile steel Q345,welded by automatic surbmerged-Arc processes.Top flange 14mm,width flange 140mm;Middle flange 10mm;bottom flange 16mm;width flange 140mm
    Axle13T capacity, FUWA Brand
    SuspensionMechanical suspension
    Leaf springLeaf spring
    FloorCheckered plate
    Tire11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 Tire optional
    Wheel rim8.5-20, 9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim optional upon choice
    Kingpin2’’/3.5’’ bolt-in king pin
    Landing gearJOST brand two-speed, manual operating, heavy duty landing gear
    CylinderHYVA
    Braking systemWABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks
    PaintingComplete chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coat of final paint
    AccessoriesOne standard tool box

    Advantages:


    1. Main-frame:High duty and extra durability designed I beam,opting for high tensile steel Q345,welded by automatic surbmerged-Arc processes.

    2.Tipping mechanism: Rear dumping, side dumping mechanisms available for customer order.

    3.Painting:Complete chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coat of final paint

    4.Suspension:Bogie suspension; Air suspension; Mechanical suspension optional.

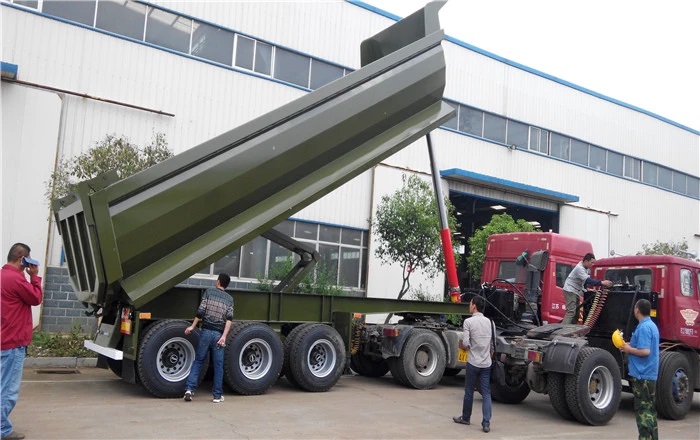

    U type three axles dump truck body semi trailer for sale

    U type three axles dump truck body semi trailer for sale

    U type three axles dump truck body semi trailer for sale


    Quality Guarantee

    - All spare parts are from famous brand or your Customized.
    - All spare parts are testing before assembly.
    - High quality automatic and manual welding.
    - Quality control supervisor do inspection before delivery.
    - Acceptance for third party inspection.


    Packing & Delivery



    After-sales Service

    - Providing high quality and reliability products, free of charge during the warranty period for spare parts.
    - 24 hours corresponding your feedback.
    - Technicians fully supports on technology and maintenance.
    - With a variety of trailer accessories and delivery within 3 days.
    - Perfect and economic transportation arrangement.


    FAQ

    Q1. What is your terms of packing?
    A: Generally, our goods is nude packing. We'll show you the photos of the products and packages before delivery.
    Q2. What is your terms of payment?
    A: T/T 30% as deposit, and 70% the balance before delivery.
    Q3. What is your terms of delivery?
    A: EXW, FOB, CFR, CIF..
    Q4. How about your delivery time?
    A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
    Q5. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery
    Q6: How do you make our business long-term and good relationship?
    A: 1. With high quality products and competitive price;
    2. We respect each customer and sincerely do business, Win-Win Cooperation.
