Ask Lasest Price | |
Brand Name : | HOWO |
Model Number : | ZZ4257N3247W1 |
Certification : | ISO CCC GCC CE |
Price : | Negotiation |
Payment Terms : | L/C, T/T |
Supply Ability : | 300 Set/Sets per month |
Delivery Time : | 25-30 work days |
Sinotruk HOWO 6x4 420 hp Tractor Trailer Truck Euro 2 Optional Color
Product parameter
Vehicle series | HOWO 6x4 420 hp tractor truck | ||
cab | HW76 | ||
Engine | Model | Euro 4:WD615/D12 | |
Power(Ps/rpm) | (213-273)/2200 309/2000 | ||
Maximum torque(Nm/rpm) | (1160-1500)/1100-1600,1820/1100-1500 | ||
Displacement(L) | 9.726/11.596 | ||
Transmission | SINOTRUK HW series 10 gears Transmission, main and auxiliary
transmission structure, main transmission with double counter shaft
,auxiliary transmission with planetary reduction.
WD615.87standardHW15710,WD615.69,WD615.47,D12.38 and
D12.42standardHW19710 | ||
Clutch | Φ430diaphragm spring Clutch,Hydraulic control air assisted.
WD615.47,D12.38 and D12.42Engine standard430A,WD615.69standard430B
, WD615.87standard430C | ||
Front axle | HF7,rated load of 7t, drum-type;heavy load truck with HF9
drum-type, rated load of 9t | ||
Rear axle | ST16 double reduction, speed ratio:3.93,4.42,4.8;heavy load truck
with HC16 double reduction, speed ratio:4.8, 5.73 | ||
Steering gear | ZF8098 steering gear, ZF steering oil pump, system pressure 18MPa | ||
Suspension | Steer Axle | front and rear leaf spring suspension, front suspension with shock
absorber,transverse stabilizer | |
Drive Axle | front and rear leaf spring suspension,rear suspension is
disconnected type with transverse stabilizer. | ||
Braking system | Service brake | dual-circuit air pressure brake | |
Parking brake | spring storage energy without air | ||
Auxiliary brake | Engine exhaust braking;standardABS,Engine EVB is Optional and
optional auto clearance adjusting arm | ||
Electric system | Voltage | 24v | |
Generator | 1540w | ||
Batteries | 12v/165Ah,2pieces | ||
Starter Power | 24v.7.5kw | ||
Wheels & Tyres | Tyres | 315/80R22.5 | |
Optional | 12.00R20; 12R22.5 | ||
Fuel Tank | Capacity | 400 Liter 260L auxiliary fuel tank can be added | |
weight(kg) | Curb weight | 9180/9230 | |
Gross Vehicle weight | 25000 | ||
Design loading capacity at fifth wheel | 15640-15690 | ||
Vehicle Dimensions (mm) | L*H*W | 6800×2496×2958 | |
Wheelbase | 3200+1350 | ||
Front overhang/Rear overhang | 1500/725 | ||
Wheel track of front axle | 2022 | ||
Wheel track of rear axle | 1850 | ||
Performance | Maximum speed(km/h) | 92/102 | |
Maximum gradeability(%) | 20 | ||
Minimum turning diameter(m) | 15 |

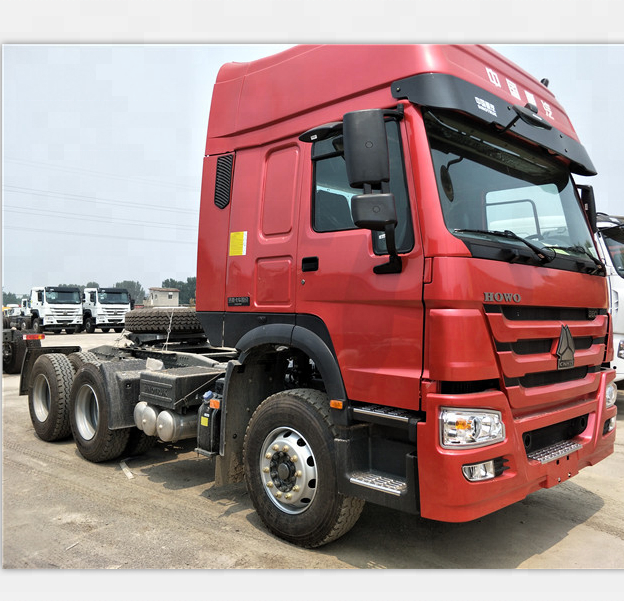

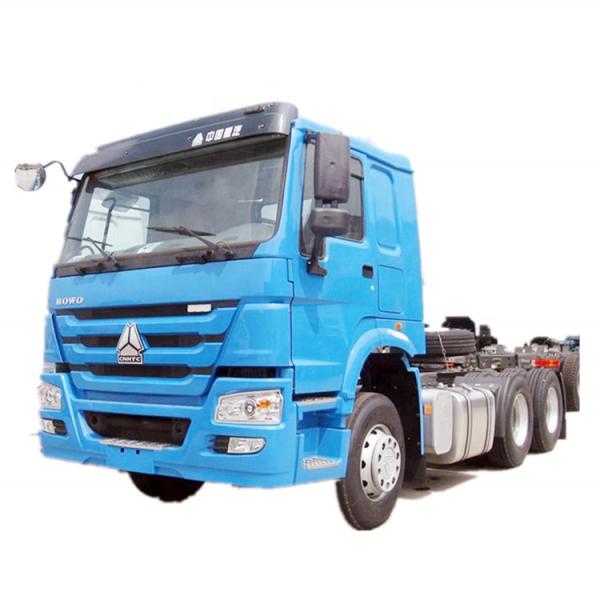

Product picture
![]() |
