    HOWO 6×4 20CBM Refueling Oil Tanker Vehicle 336HP 15001 - 30000L ISO9001

    Ask Lasest Price
    Brand Name : HOWO
    Model Number : ZZ1257N4647D1
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 300 units per month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    HOWO 6×4 20CBM Refueling Oil Tanker Vehicle 336HP 15001 - 30000L ISO9001

    HOWO 6×4 20CBM Refueling Oil Tanker Truck Optional Color 336HP 15001 - 30000L

    Product description


    Oil tanker truck is also called Fuel Tanker Truck, petrol delivery truck, diesel hauling trucks, crude oil transport trucks, oil tank trailer, fuel tanker semi trailers, mobile oil tank trucks, etc., is used to transport or refuel oil, petrol, diesel, lubricant, crude oil and some chemical liquid, etc.

    1. Oil tanker trucks mainly include truck chassis, oil tanker, piping system, manhole, vapor recovery system, manifold system, API valve, emergency valve, etc.

    2. Tank materials: Optional for carbon steel, stainless steel and aluminum alloy material. With multiple baffle plates in the tank, it has the advantages of high intensity, stability, transporting safety etc.
    3.Tank shape: Optional for round square, oval, and round;
    4. According to users' needs, the tank can be designed as single compartment or several compartments to contain different kinds of oil or chemicals.
    5.Oil pump: Users can choose centrifugal pumps, gear pump, copper gear pump, or stainless steel pump according to actual needs. It has advantage of big flow, high suction pressure and speed.

    Product parameter


    NameSINOTRUK HOWO 20M3 Oil Tank Truck
    Dimension(LxWxH)10350×2496×3350 mm
    Total Mass24500 Kg
    Rated Payload15000 Kg
    Cerb Weight11250 Kg
    Passenger3
    Approach/Departure Angle16/12
    The Parameters of Chassis
    Manufacture/ModelHOWO/ZZ1257N4647D1
    Driving Type6*4 left/right hand drive
    Wheel Base4600 + 1350mm
    Front/Rear Track2022/1830(mm)
    Tyre12R22.5, 10+1 spare tire
    Front/Rear Suspension1500/2900(mm)
    Leaf Spring Number4/-,4/12,10/-,10/12
    The Paremeters of Engine
    Engine ModelD10.34-40
    Rated Power340hp
    Fuel TypeDiesel oil
    Displacement/Capacity9726ml
    Emission StandardEuro 3/4/5
    ManufacturerChina Heavy Duty Group Co., Ltd.
    The Parameters of Equipment
    Color/LogoCustomizable
    MaterialCarbon steel (optional with stainless steel, aluminum alloy)
    FunctionFuel/oil/diesel Transporting and refueling, etc.
    Volume of Tank20000L
    Thickness5mm
    Equipment

    1. Equipped with 1 oil pump with 1 inlet valve and 1 outlet valve.

    2. Tank divided into 6 compartments, each discharge valve for each compartment.

    3. Each European standard man hole cover and each air emergency valve for each compartment.

    4. Equipped with folding barrier on top of the tank.

    5. Equipped with fire extinguisher, front ladder, grounding wire, plastic fender.

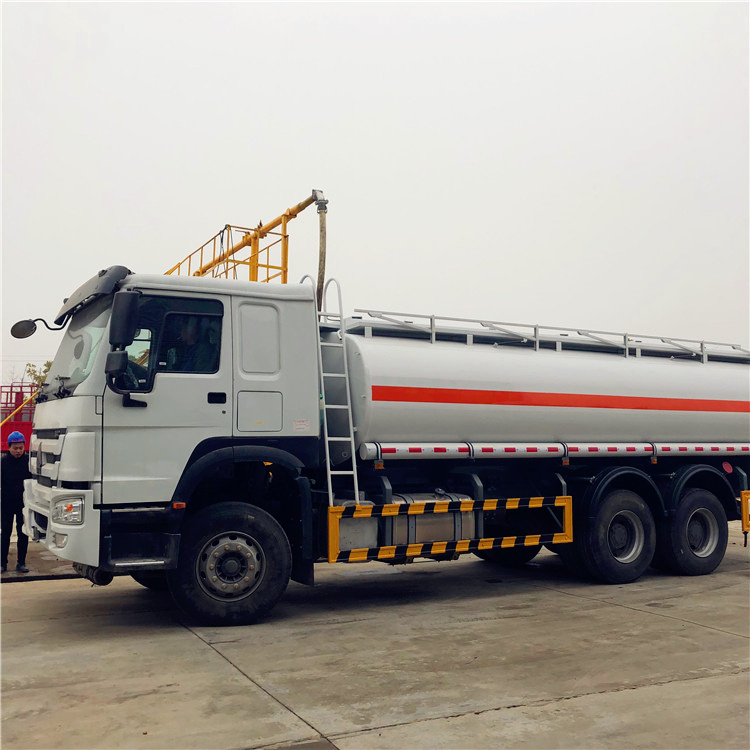

    Product picture
