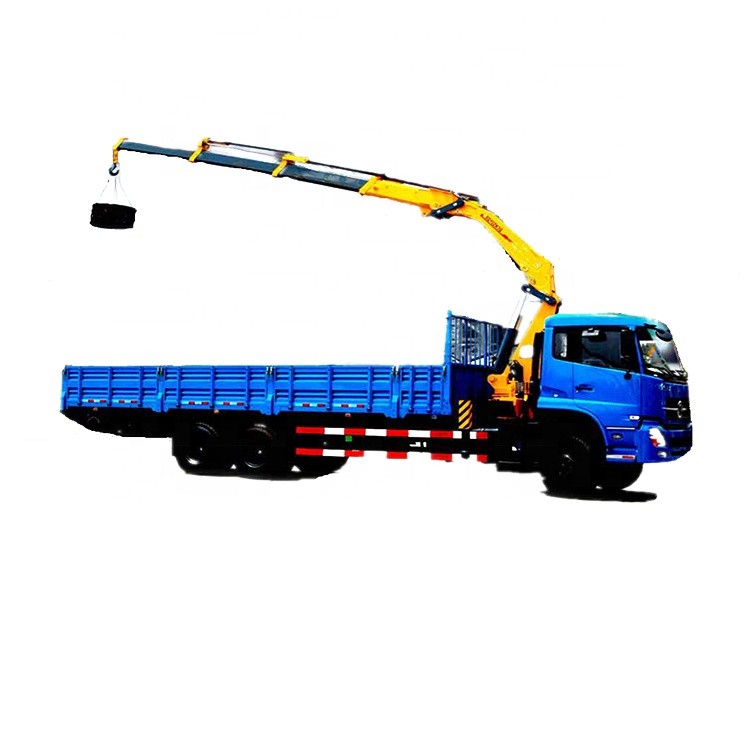

    SQ10ZK3Q 10T Knuckle Boom Truck Crane With Dongfeng 6*2 10T Folding Arm

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : SQ10ZK3Q
    Certification : ISO9001
    Price : NEGOTIABLE
    Payment Terms : L/C, T/T
    Supply Ability : 100 Unit/Units per Month
    Delivery Time : 15-45DAYS
    • Product Details
    • Company Profile

    SQ10ZK3Q 10T Knuckle Boom Truck Crane With Dongfeng 6*2 10T Folding Arm

    XCMG SQ10ZK3Q 10T Knuckle Boom Crane with Dongfeng 6*2 10T Truck Mounted Crane Folding Arm


    Product Quick Details:


    Max. Lifting Height:2-9.75m

    Warranty:1 Year

    After-sales Service Provided:Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts, Engineers available to service machinery overseas

    Feature:Truck Crane

    Condition:New

    Application:Construction

    Rated Loading Capacity:0-10000kg

    Rated Lifting Moment:20tm

    Span:2-9.75m

    Place of Origin:Jiangsu, China

    Brand Name:canmax

    Certification:ISO

    Product name:Truck mounted crane

    Oil Tank Capacity:160L

    swivel angle:360 °

    Recommend Power:30kw

    Max elevation:75DEGREE

    Lifting height:13000mm

    Installation space:1150mm


    Product description


    XCMG Truck mounted crane is a kind of hydraulic lift and telescopic system to achieve the goods up and down, rotation, lifting equipment, usually assembled on the truck. Generally by the truck chassis, cargo compartment, take power, crane composition.

    1, advanced R & D and analysis means to ensure design reliability.

    2, four-link mechanism, lifting capacity stronger.

    3, flange telescopic arm connection structure.

    4, independent research and development of the rotating body, with a strong driving force, may meet more demand conditions.

    5, hexagonal boom technology, good for neutral, cross-section bending ability.

    6, the unique floating three-point bridge structure design, effectively reduce the vehicle running when the chassis beam bear the additional force.


    1.Throttle Control System
    Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.

    2.End position automatic hook device
    Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.

    3.Hoisting overwinder device
    If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.

    4.Slewing locking device
    Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.


    5.Torque limiter
    It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.


    Why choose us?


    Factory

    We have own factory and skilled worker, rich-experienced design team and responsible QC and good after sales service.


    Quality and Price

    We are strictly control quality from raw material to finished products. And ensure high quality of your required products. Also we manage to control the cost and save every penny for your party.


    Amount

    We can provide various kinds of special truck and trailer, various machinery for your choices. Also, we can customize per your specific requirements.


    Your Model

    Our design team can design per your specific text description and reference design.


    Of the Public Accounts

    All the payment will be received by our company bank account. Also all the transaction by monitored by union pay.


    Convenient Transportation

    We cooperated with efficient logistics. Which ensure the goods can be reached you timely. And win much more time for your party.


    Choose

    All the discussion and terms will be showed in our contract. Which ensure your interests legally. Also welcome to visit us at any time.


    Pre-consultation

    Please contact us before you place order, or need any technical support or guildance.

    Specialty

    We have careful sales and merchandiser, own factory and long term cooperated logistics, and after-sales worker.


    Commissioner

    We have patient and efficient pre-sales worker, and considerate after-sales workers. Who do best for your party.


    All The Time

    We are standing by 24 hours. Including public holidays.


    Product Specification:


    Dimension Parameter
    Overall dimension (L*W*H) (mm)12000*2490*3800
    Cargo dimension (L*W*H) (mm)8300*2300*550
    Wheel base (mm)1950+4750
    Wheel No.3
    Front / Rear track (mm)1940/1860
    Weight Parameter
    GVW (kg)25000
    Payload weight (kg)12455
    Kerb weight (kg)12250
    Front / Rear axle (T)5T / 10T
    Engine Parameter
    ModelB190 33
    ManufacturerDongfeng Cummins
    Horsepower (hp)190
    Displacement / power (ml/kw)5900/140
    Engine type6 cylinder in-line, inter-cooling
    Emmission StandardEuro III
    Transmission
    Control typemanual
    Gear Shift8 forward and 1 reverse speeds
    Tyre
    Type10.00-20
    Tyre No.10+1 spare tyre
    Cab
    Typeflat roof cab, blue color
    10T Knuckle Boom Crane Specification
    Crane Model:SQ10ZK3QMax Lift Capacity: 10000kg
    Max Lift Moment: 20T.MPower Recommended: 28kw
    Max Flow of Hydraulic System: 40L/MinRated Pressure of Hydraulic System:30MPA
    Oil Tank Capacity: 160LSlewing Angle: All Rotation
    Crane Weight: 3477kgInstallation Space: 1150mm
    Lifting height: 13mworking radius: 9.75m
    Working radius (m)24.175.997.879.75
    Lifting capacity (kg)100004600305022801700
