    BZC600BZY Truck Munted Dill Rig 600m Hole Depth SINOTRUK Chassis ISO9001

    BZC600BZY truck munted dill rig rotary down the hole rig 600m hole depth SINOTRUK chassis


    Product Description


    Main features:


    BZC600BZY truck mounted drilling rig is designed by our engineers; it is adopt truck mounted and is a rotary drilling rig.


    The truck chassis is adopt the 8×4 special chassis of brand SINOTRUK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are setup on the chassis.


    This rig is a rotary drilling rig with directional circulation, which is equipped with 3NB-130mud pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.


    The power of drilling rig comes from the truck engine; the rig sets up distribute implement and hydraulic system.


    We can set up the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.


    We can set up a generator (30kw) , so that it is convenient to illuminate or work at night.


    The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.


    The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.


    The appearance of rig is pretty. It has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working. It is popular with domestic and foreign clients.


    Technical parameter
    Drilling depth(M)600
    Drilling diameter(mm)500
    Speed of turntable(r/min)12.8;22.3;38.5;59.8;102.7;117.6;16.1(reverse)
    Torque of turntable(KN.m)41.4;23.8;13.8;10.6;5.1;4.5;32(reverse)
    Single rope lifting capacity of windlass(KN)50
    The capacity of main windlass(KN)300
    Single rope lifting capacity of hydraulic windlass(KN)50
    The capacity of hydraulic windlass(KN)200
    The lifting capacity of hook(KN)300
    Bearing capacity of mast (KN)360
    The height of mast (mm)12043
    Bearing capacity (t)36
    PipeKelly (mm)108×108×7500
    Assistant pipe (mm)Ф89×10×5500

    Hydraulic pump

    ModelCBHP-80/63
    Pump delivery (ml/r)80/63
    Rated speed (r/min)2000
    Rated pressure(MPa)20

    3NB-130 piston pump


    Diameter of cylinder (mm)100 110 120 130 140
    Stroke of piston (mm)160
    Theory of flow (L / min)1000
    Rated pressure (Mpa)5
    Pounding times (min-1)135
    Diameter of suction tube (mm)152
    Diameter of drain pipe (mm)65
    Input speed (r / min)565
    Input power (kw)95
    Overall dimensions (mm)2160*1400*1300
    Weight (t)3.9

    Truck chassis

    ModelSINOTRUK
    Drive form8×4

    Engine

    ModelSINOTRUK
    Rated power(KW)196
    Speed (r/min)2300
    Size (L*W*H)(mm)11510×2480×2800
    Electric generatorModelMF
    Rated power (kw)30
    Rated voltage(v)400
    Rated current(A)27
    Speed (r/min)1480
    Frequency(Hz)50
    Protection levelIP21
    Insulation ClassH
    The best working gear (or speed)5th gear(1000-1400r/min)
    The highest speed(Km/h)70
    Weight (kg)25960
    Transport size(L*W*H)(mm)12386*2480*3837
    Working size(L*W*H)(mm)11123*2480*13618

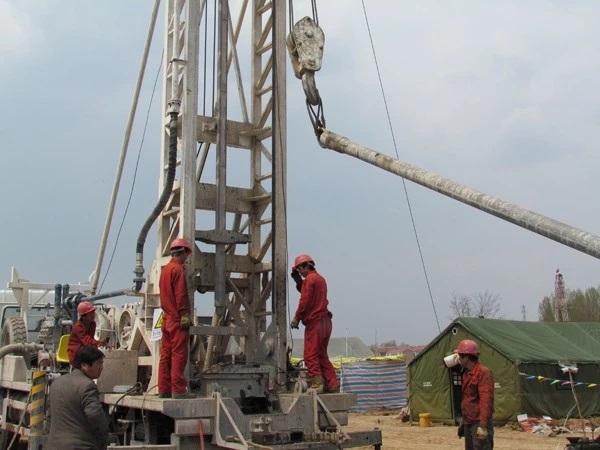

    Product Pictures
