    4X4 Mobile Concrete Mixer Self - Made Chassis With Feeding Bucket 6m3 And YC4A Engine

    Ask Lasest Price
    Brand Name : JB
    Model Number : 6m3
    Certification : ISO9001, CCC
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 300 Unit/Units per Month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    4X4 Mobile Concrete Mixer Self - Made Chassis With Feeding Bucket 6m3 And YC4A Engine

    4X4 Mobile Concrete Mixer Self-Made Chassis With Feeding Bucket 6m3 And YC4A Engine


    Product description


    Concrete mixing truck is composed of automobile chassis and specialized concrete mixing device. Wolwa made concrete mixer truck chassis is mostly used grade B specialized chassis. Its special institutions mainly including the power lifter, before and after the mixing drum bracket, deceleration machine, hydraulic system, mixing barrel, operating mechanism,feeding system, cleaning system, etc. Working principle is that power is taken from chassis, and drives variable pump of the hydraulic system, changing mechanical energy into hydraulic energy to quantitative motor, then the motor drives reducer, then to mixing device, for mixing concrete.

    the wolwa self-made mobile concrete mixers in our company include model "A" and model "B" , the model B have new and advantage function, their cement tank can horizontal turn 180°or 270 °.it will be more convenient while dumping the concrete.


    Product parameter


    Actual mixing amount

    6m3

    Drum capacity

    7.5m3

    Tilt angle

    16°

    Rotation speed

    0-14r/min

    Rotation direction(from back to front)

    Feed : clockwise

    Rotation direction(from back to front)

    Discharge: counterclockwise

    Mixing drum blades

    Two spiral vanes and auxiliary blades

    Concrete slump

    70-260mm

    Pump model

    CBF-32

    Motor model

    BMS-125

    Reducer model

    HJ220

    Water forms

    Bring water agencies

    Water tank capacity

    320L

    Engine model

    YC4F55-T20

    Engine form

    Direct-injection four-stroke water-cooled engine

    Number of cylinders

    4

    Displacement

    5l

    Rated power

    102kw/2650

    Maximum torque

    450/1800-2000

    Maximum speed

    24km/h

    Minimum turning diameter

    7m

    Gradeability

    24°

    Tire

    7.5-16

    Drive form

    4*4

    Vehicle equipment quality

    8000

    Maximum load mass

    9000

    Maximum total mass of the vehicle

    17500

    Vehicle dimension(lwh)

    7260x2420x3350


    Our Services


    1. Factory Supply:

    a. one of the biggest special using truck manufacturers in china,

    b. more than 300 kinds of special truck for your needing.

    2. OEM Ability: can produce according to your demand, the material, the size, the color and the logo is optional for you.

    3. Good Quality:

    a. has solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,

    b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),

    c. our brand is china famous brand with good reputation in the market.

    4. Good Service:24-hour hotline and email.


    Packing:


    The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland.The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

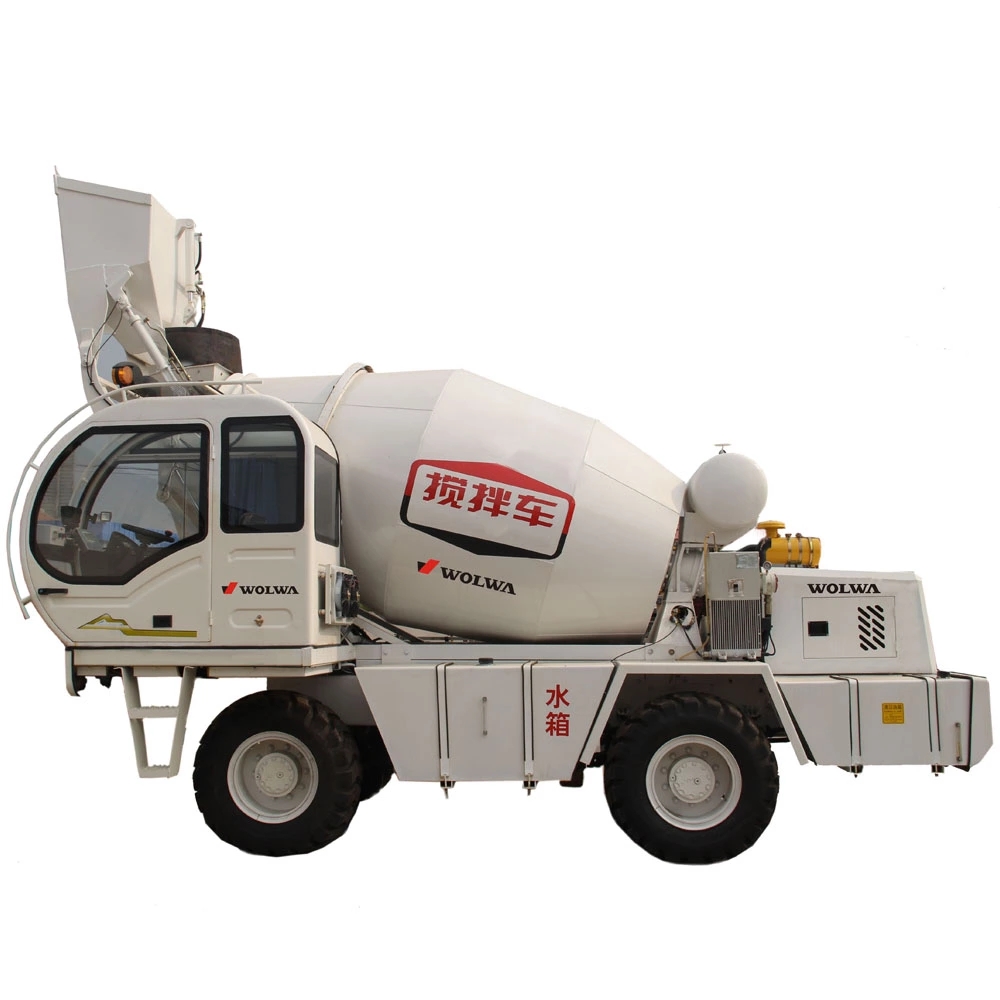

    Product picture
