    Double Cone Roll Concrete Construction Equipment , 1.2m3 Self - Feeding Concrete Mixers 55kw 4500kg

    Ask Lasest Price
    Brand Name : JBC
    Model Number : JBC12
    Certification : ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500 Unit/Units per Month
    Delivery Time : Shipped in 35 days after payment
    • Product Details
    • Company Profile

    Double Cone Roll Concrete Construction Equipment , 1.2m3 Self - Feeding Concrete Mixers 55kw 4500kg

    1.2m3 Mobile Self-feeding Concrete Mixers With 55kw Power And 4500kg Weight


    Product Description

    The double-cone roller has a double helical agitating screw and convex bottom.
    The counterweight mounted on the heavy duty saddle can be hydraulically rotated 270 ° and automatically locked by a hydraulic brake. The drum rotation is achieved by a gear pump and a cycioidal hydraulic motor in an open circuit with a manually eletric valve in the operating room and in the rear of the mixer. The drum rises to a horizonized position through two double-acting jacks. The unloading chute is tilted by a manually adjustable handle and can be rotated by 90 ° , but can not be synchronized with the churing drum tilting operation. Removable chutes ensure unloading dicrectly througn the hopper. Two chute extensions are provided as standard.


    Why choose us


    1.Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture.

    2. Cab and mixer drum can be integrated. Rolling drum can also be lifted up 20° to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%.

    3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.

    4. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively.

    5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.

    The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.


    Product parameter


    Mixing Drum

    Mixing Capacity1.2 m³
    Geometrical Capacity1.8 m³
    Concrete Output1.2 m³/batch, 4.8 m³/h
    Drum Rotating Speed13 rpm
    Engine
    ModelYUNNEI YN27GBZ (Cummins Engine optional)
    TypeIn-line, 4-Cylinder, Turbo Charged and Water Cooled
    Rated Power55 KW (75HP) @ 2400 rpm
    Emission StandardEuro II
    Loading Bucket & Discharge Chute
    Loading Bucket Capacity0.4 m³
    Loading Times to Full Drum3 Times
    Discharge chute2 Sets
    With Extender
    Rotation angle range 90°, manual shank
    Water System
    Max. Water Suction Volume250 L/min. (Self-priming electronic water pump)
    Water tank Volume2x200 L
    Mixer
    Max. Travel Speed25 km/h
    Gradeability40°
    Min. Turning Radius4750 mm
    Operating Weight4500 kg
    Max. Load2900 kg
    Max. Gross Weight7400 kg
    Overall Dimension (L×W×H)6400*2550*3750 mm
    Fuel Tank Volume63 L
    Total Hydraulic System Capacity63 L
    Oil Tank Volume16 L

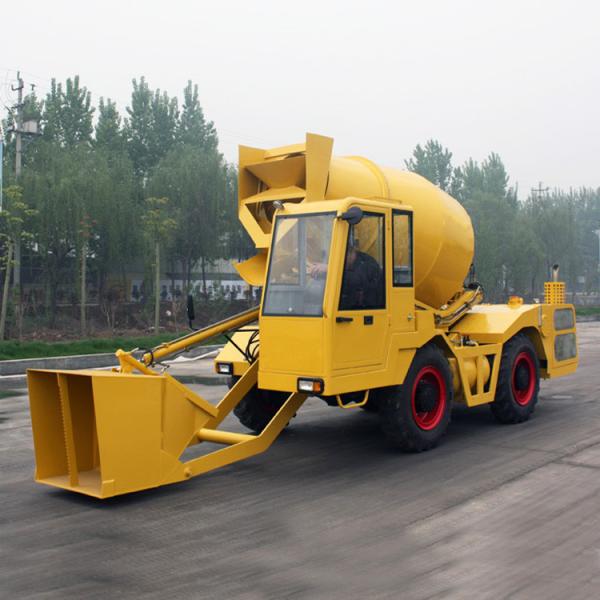

    Product photos

    Quality Double Cone Roll Concrete Construction Equipment , 1.2m3 Self - Feeding Concrete Mixers 55kw 4500kg for sale
