    400m 6x4 371HP Euro 2 Truck Mounted Drill Rig With Sinotruk Chassis

    Ask Lasest Price
    Brand Name : HOWO
    Model Number : BZC400ZY
    Certification : CC
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500 pieces per month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    400m 6x4 371HP Euro 2 Truck Mounted Drill Rig With Sinotruk Chassis

    400m 6x4 371HP Euro 2 Truck Mounted Drilling Rig With SINOTRUK Chassis


    Product parameter


    Technical parameter

    Drilling depth(M)
    80
    400
    Drilling diameter(mm)
    1500
    500
    Speed of turntable(r/min)
    21.2;36;63.2;100.6;155;20.2(reverse)
    Torque of turntable(KN.m)
    18;10.6;6;3.8;2.5;18.9(reverse)
    Single rope lifting capacity of main windlass(KN)
    45
    The capacity of main windlass(KN)
    270
    Single rope lifting capacity of hydraulic windlass(KN)
    40
    The capacity of hydraulic windlass(KN)
    160
    The lifting capacity of hook(KN)
    270
    Bearing capacity of mast (KN)
    270
    The height of mast (mm)
    11500
    Bearing capacity (t)
    30
    Pipe
    Kelly(mm)
    108×108×7500
    Assistant pipe (mm)
    89×10×5500
    Hydraulic pump
    Model
    CB-HP80/40
    Pump delivery (ml/r)
    80/40
    Rated speed (r/min)
    2000
    Rated pressure(MPa)
    20
    BW850/2A
    plunger pump
    Diameter of cylinder (mm)
    150
    Stroke of piston (mm)
    180
    Theory of flow (L / min)
    600 850
    Rated pressure (Mpa)
    3 2
    Pounding times (min-1)
    58 82
    Diameter of suction tube (mm)
    127
    Diameter of drain pipe (mm)
    64
    Input speed (r / min)
    470
    Input power (kw)
    40
    Overall dimensions (mm)
    2000*1030*1400
    Weight (t)
    1.5
    Electric generator
    Model
    MF
    Rated power (kw)
    15
    Rated voltage(v)
    400
    Rated current(A)
    27
    Speed (r/min)
    1500
    Frequency(Hz)
    50
    Protection level
    IP21
    Insulation Class
    H
    The best working gear (or speed)
    5th gear(1000-1400r/min)
    The highest speed(Km/h)
    75
    Weight(kg)
    19340
    Transport size(L*W*H)(mm)
    12160*2490*3440

    Product feature


    1. BZC400ZY truck mounted drilling rig is designed by our engineers; it adopts truck mounted and is a rotary drilling rig.
    2. The truck chassis adopts the 6X4 special crane chassis of brand SINOTRUK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are setup on the chassis.
    3. This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2A mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
    4. The power of drilling rig comes from the truck engine, the rig sets up distribute implement and hydraulic system.
    5. We can set up the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.
    6. We can set up a generator (15kw) , so that it is convenience to illuminate or work at night.
    7. The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.
    8. The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.
    9. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.

    Packing:


    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.

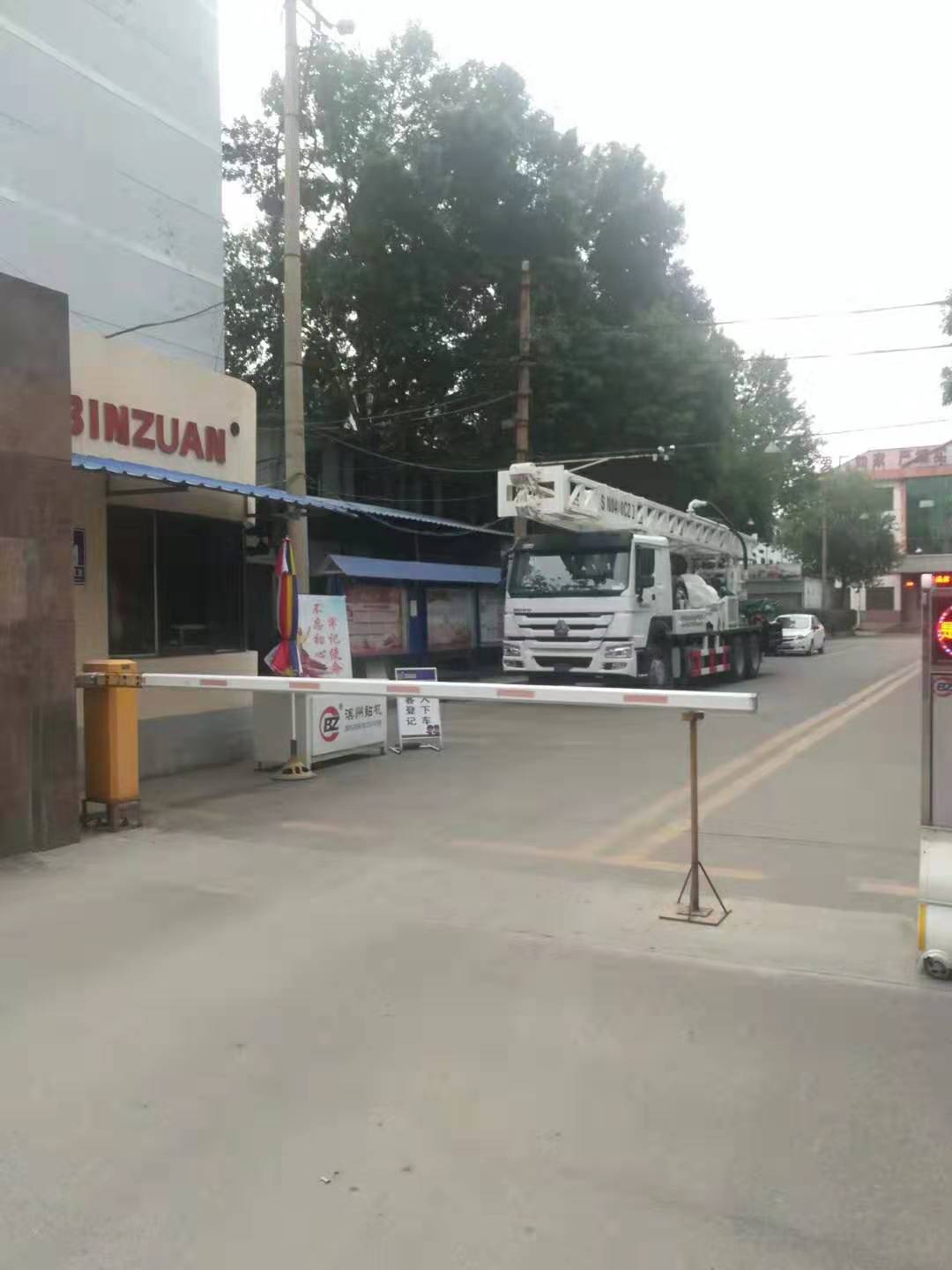

    Product picture



    Quality 400m 6x4 371HP Euro 2 Truck Mounted Drill Rig With Sinotruk Chassis for sale
