    Road Construction Horizontal Directional Drilling Machine Max Torque 2235Nm

    Ask Lasest Price
    Brand Name : Goodeng
    Model Number : GS50-LS
    Certification : CCC/ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Delivery Time : 30-45 work days
    Supply Ability : 200 Set/Sets per Month
    • Product Details
    • Company Profile

    Road Construction Horizontal Directional Drilling Machine Max Torque 2235Nm

    China GS50-LS Road Construction Horizontal directional drilling machine Max Torque 2235Nm


    Product description

    1.The Japan Yanmar engine ensures sufficient power support to ensure stable machine performance, low fuel consumption and low noise for urban construction.

    2,The power head rotation is driven by the American high-torque Eaton motor, which is stable in performance and achieves infinitely variable speed. The push-pull motor also adopts the American Eaton motor to achieve stepless speed change, and the machine work speed is far ahead in the same industry.

    3.The 42*1800mm drill pipe allows the machine to be adapted to smaller construction areas.

    4.The machine structure is simple in design, with low failure rate and easy maintenance.

    5,Rotary and push-pull motors use load-sensitive control systems and internationally advanced hydraulic components. The independent cooling system ensures high-efficiency construction and high performance reliability.


    Product parameter

    ItemNameSpecificationQty


    EXW Price
    (USD)

    Note
    Main RigEngine4TNV98T-SYU(43Kw/2200rpm)1setJapan YANMAR
    Hydraulic PumpHA10V/JHP1setHIGH-TECH or purchuse
    Hydraulic MotorRotation motor6K-3901setAmerican EATON
    push & pull motor 2K-2452pcsAmerican EATON
    Mud Pump75L/min1setLeike
    Drill rod box1setSelf-made or purchuse
    Auto anchor1setSelf-made or purchuse
    AccessoriesRotary drive sub1pcsFreeSelf-made or purchuse
    Anchor nail2pcsSelf-made or purchuse
    Mud pump accessories1setpurchuse
    Diesel tool kit

    Including diesel filter

    1setpurchuse
    FilterOil input1setpurchuse
    Easy-worn accessoriesComposed gasket /Seal ring/Grips1setpurchuse
    Accompanying documentsManual , certificate of quality and so on1setSelf-made

    Standard
    tools

    Guide bit1setSelf-made or purchuse
    Guide bit palm1pcsSelf-made or purchuse
    Swivel1setSelf-made or purchuse
    Male/Female connector1setSelf-made or purchuse
    Sub saver1pairSelf-made or purchuse
    Integral drill rodФ42×1800mm50pcsPurchuse
    TotalExw-priceUSD DOLLARS

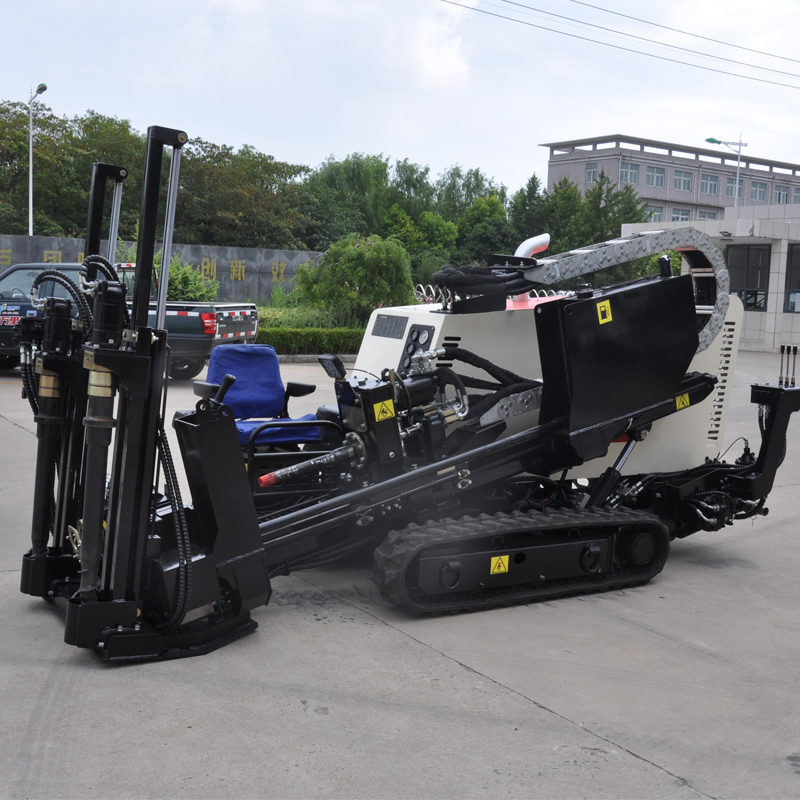

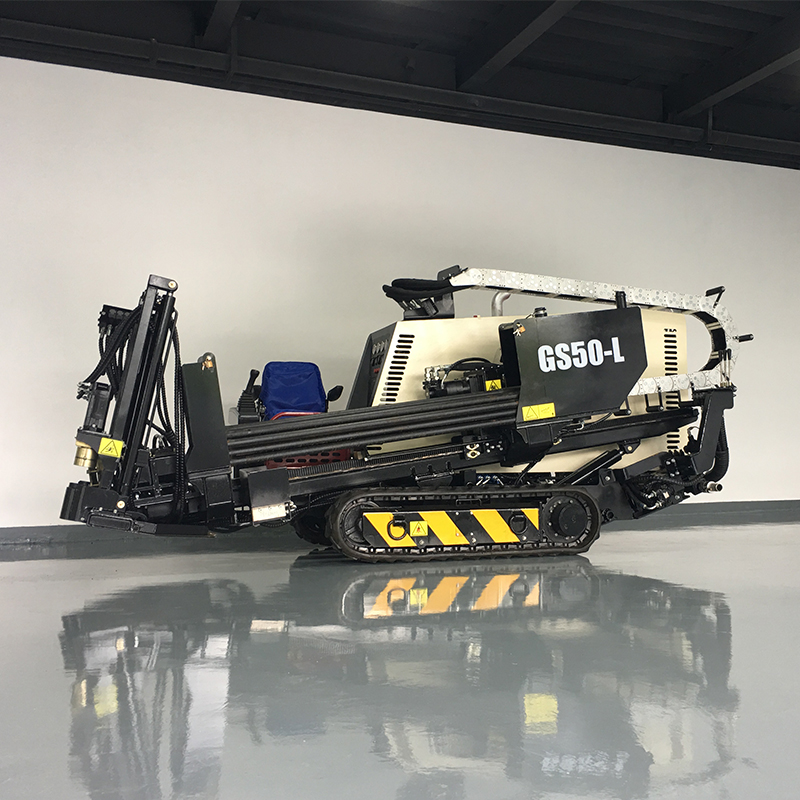

    Product picture
