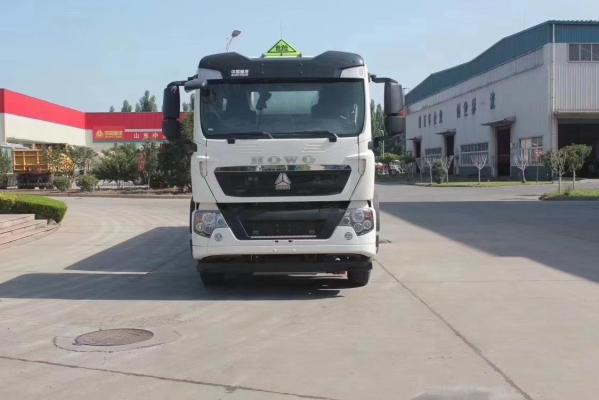

    Hazardous Chemical Transporter Truck With HW76 Cabin ZZ1317N4667W 8X4 Euro 2

    Ask Lasest Price
    Brand Name : HOWO
    Model Number : ZZ1317N4667W
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 units/month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    Hazardous Chemical Transporter Truck With HW76 Cabin ZZ1317N4667W 8X4 Euro 2

    ZZ1317N4667W SINOTRUK 8X4 Euro 2 Hazardous Chemical Transporter Truck With HW76 Cabin


    Description:

    HOWO 8x4 cooking oil tanker truck now is good products in overseas market, the frame adopt U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members

    Front suspension adopt 10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer.Rear suspension adopt 12 leaf semi-elliptic springs, bogie spring and stabilizer.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.


    Packing:


    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 20 days deliver the goods to main Port.Ro-Ro ship or bulk ship or according to customer requiring.
    We have professional forwarding partners.

    Competitive Advantage:


    1. Flexible and convenient logistic service.
    2. Excellent and high-quality control

    3. Rich experience and well after-sale service.

    4. Long lasting working life time.

    5. Rich experience and well after-sale service.

    6. Long lasting working life time.
    7. Shippping: we have logistic team, can cargo your truck fast and safety.


    Chassis modelZZ1317N4667W
    Overall dimensions11700X2496X3025mm
    Front/rear wheel track2022/2041, 1830/1830mm
    Approach/departure angle16/19°
    Tank thickness6mm
    CabHW76 a row and a half deluxe cab(with sleeping berth), allowable 3 passengers
    EngineWD615.69
    Euro 2
    Type6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine
    Rated power336hp, rated power speed 2200rpm
    Displacement9726ml
    Max.torque1350N.m
    Bore x stroke126x130mm
    Tire

    12.00R20 tubeless tire

    12+1 nos

    Clutchφ430 diaphragm clutch
    Fuel tank400L oil tank
    Front axleHF 7 tons
    Rear axleHC 16 tons
    Drive form8X4
    Rated voltage24V, DC
    TransmissionsHW15710 , 10 speed forward 2 reverse.
    Steering devicePower assisted steering
    Steering wheelLeft hand drive
    Tank dimensions9800×2500×1900mm
    Tank volume40000L
    Tank thickness6mm
